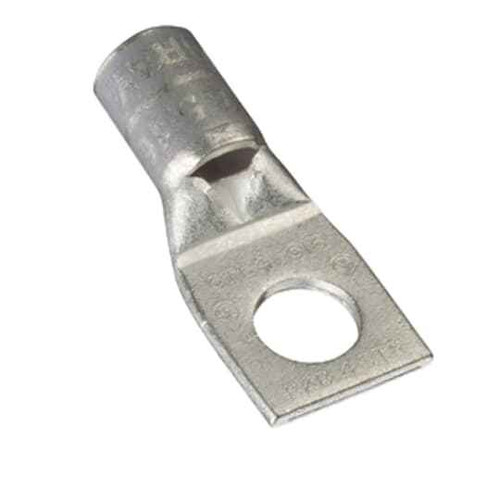

CU TP 1HL LUG SHRTBRL 1 5/16B GRN
Manufacturer Resources
Product Specs
- Cable Size:
- 1 AWG
- Country Of Origin:
- Mexico (MX)
- Product Group:
- Wire Termination
- Product Type:
- Standard Barrel
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Stud Size:
- 5/16 in
- Sub Brand Label:
- Blackburn
- Type2:
- Cable or wire lug
- Department:
- Electrical
- Product Subgroup:
- Lugs
- Product Color:
- Green
- Product Material:
- Copper
Blackburn CTL1-516 – Frequently Asked Questions
1) What wire size does the Blackburn CTL1-516 lug take?
The CTL1-516 is sized for 1 AWG conductor. It is a one hole, short barrel compression style copper lug, so the barrel accepts a single 1 AWG cable and the pad bolts down over one stud.
2) Can I use a copper compression lug like the CTL1-516 on aluminum conductor?
No. The CTL1-516 barrel is copper and it is rated for copper cable. Aluminum conductor needs an aluminum or AL9CU dual rated connector; putting bare aluminum in a copper only barrel creates a dissimilar metal joint that will corrode and loosen.
3) Is the Blackburn CTL1-516 UL listed?
Yes. It carries UL file E9809, which is the listing reference a specifying engineer or inspector will look for on a grounding or bonding termination.
4) Should I use a one hole lug like this or a two hole lug on my ground bar?
A one hole lug such as the CTL1-516 is fine where a single 5/16 stud is provided and the connection is not subject to rotation or vibration. Two hole pads are specified when the termination has to resist twisting, which is common on equipment grounding and bonding at switchgear and on utility and telecom bus. If the drawing calls out a two hole NEMA pad, this short barrel single hole lug will not satisfy it.
5) Is the CTL1-516 a crimp lug or a mechanical set screw lug?
It is a compression barrel lug, not a set screw connector. The 1 AWG copper barrel has to be crimped with a die matched to the connector, so plan on having the correct compression tool and die on site. If you want a tool free termination, you need a mechanical screw type lug instead.
6) What part number do I order for the Blackburn 1 AWG green grounding lug with a 5/16 stud hole?
The manufacturer part number is CTL1-516, under the Blackburn brand. That number covers the 1 AWG copper short barrel, one hole, 5/16 stud green lug, and it is made in Mexico.
7) Why is this lug green, and does the color mean anything on the job?
The green finish on the CTL1-516 identifies it as a grounding connector. Green is the code color for equipment grounding in the US, so a green lug on a ground bar or enclosure is immediately readable as a bonding point during inspection. Electrically it behaves the same as any copper compression lug of the same size.
8) Does the CTL1-516 come in a pack or is it sold individually?
It is sold each, so quantity you order is the number of lugs you get. Order one per termination, and remember a two hole run requires a two hole lug, not two of these.
