D-T GFCI HORIZ CVR DEV MNT
Manufacturer Resources
Spec Sheet
Product Specs
- Idea Granular Category Code Igcc:
- 4425 >> Electrical box covers
- Number Of Knockouts:
- 0
- Product Group:
- Boxes & Enclosures
- Product Type:
- Raised Device Cover
- Selling Unit Of Measure:
- each
- Standards:
- UL E28688
- Surface Finishing:
- Aluminum lacquer
- Department:
- Electrical
- Product Subgroup:
- Box Covers
- Product Color:
- Silver
- Product Material:
- Aluminum Die Cast
- Pack size (unit):
- 100
Thomas & Betts CCG – Frequently Asked Questions

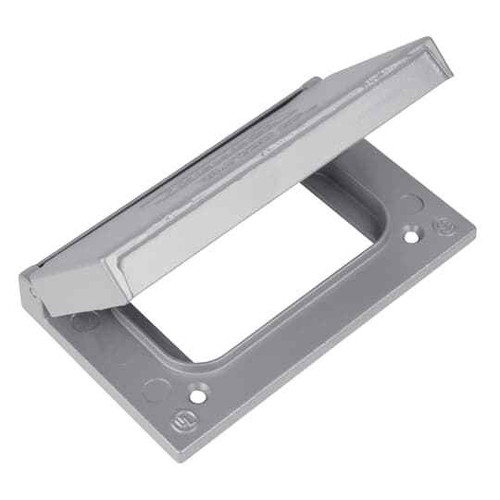

1) Is the Thomas & Betts CCG cover made for a GFCI receptacle mounted horizontally?
Yes. The CCG is a device-mount weatherproof-style cover for a decorator/GFCI opening in the horizontal orientation. If your receptacle is mounted vertically in the box, you need the vertical version of the cover instead, not the CCG.
2) Is the CCG a device-mounted cover or does it screw to the box?
Device mount. The cover fastens to the receptacle's mounting strap rather than to the box ears, so the GFCI has to be installed and aligned in the box first, then the cover goes over it.
3) What is the Thomas & Betts CCG cover made of, and will it hold up outdoors?
Die cast aluminum with an aluminum lacquer surface finish, silver in color. The lacquered die cast body is the standard choice for exterior and damp-location device covers where a stamped steel plate would rust out.
4) Does the CCG cover have any knockouts for conduit or a cord grip?
No. The CCG has zero knockouts, so it is a sealed-face device cover only. If you need a hole for a cord grip or liquidtight connector, specify a cover with the knockout size you want rather than drilling this one.
5) How does the CCG GFCI cover ship, and can I buy just one?
It is sold by the each, and the pack configuration is 100 covers. Property managers standardizing exterior receptacles across a portfolio get the quantity break of a full carton; the selling unit itself is each.
6) Where can I get the dimensions and mounting details for the Thomas & Betts CCG cover?
Thomas & Betts publishes a spec sheet for the CCG covering the cover's dimensional and mounting detail, hosted at media.distributordatasolutions.com. Pull it before ordering if you are matching an existing box or gang pattern on a retrofit.
