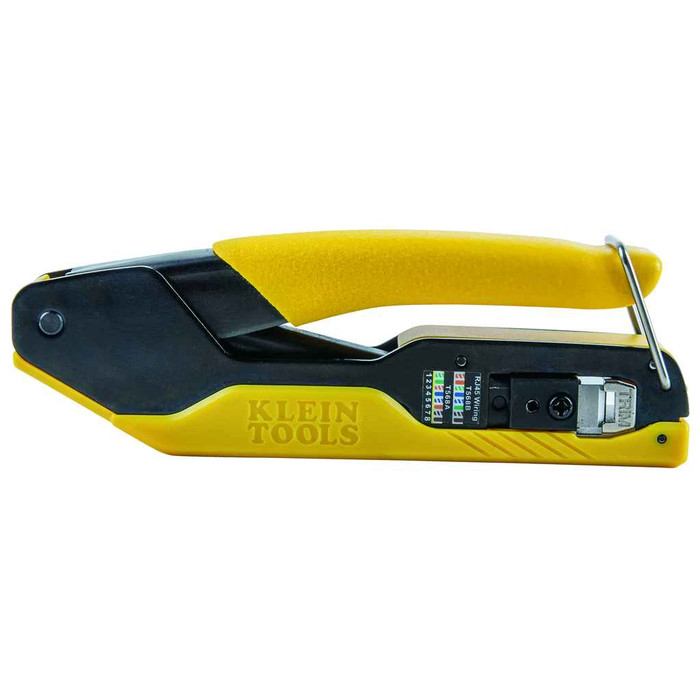

Klein Tools Pass-Thru RJ45 Data Cable Crimping Tool Compact 8-Position 4-Pair with Trim Function
Professional Pass-Thru Technology for Fast, Reliable Data Cable Terminations
The Klein Tools Pass-Thru RJ45 Data Cable Crimping Tool delivers professional-grade performance for voice and data applications using Klein Tools Pass-Thru connectors. This compact crimper features steel with chrome construction and yellow/black handle design, specifically engineered for CAT5e and CAT6 cables with 8-position, 4-pair conductor configuration. The integrated trim function and on-tool wiring guide ensure fast, reliable installations while minimizing wiring errors.
Professional Features & Benefits
- Pass-Thru Technology: Enables complete wire insertion through connector for visual verification and superior connection reliability
- Crimp and Trim Function: Single-tool operation crimps Klein Tools RJ45 Pass-Thru connectors and trims excess conductor length for clean installations
- CAT5e/CAT6 Compatibility: Supports both CAT5e and CAT6 round STP/UTP cables for versatile data application requirements
- 8-Position 4-Pair Design: Handles standard 8-conductor paired-conductor cables for comprehensive data connectivity solutions
- Steel with Chrome Construction: Durable material composition ensures long-lasting performance in professional environments
- Compact 5.5" Length: Portable design with 0.6 lbs weight provides excellent maneuverability in tight installation spaces
- On-Tool Wiring Guide: Integrated reference helps minimize wiring errors and ensures consistent termination quality
Technical Specifications
- Cable Size: CAT5e, CAT6
- Connector Type: RJ45 Klein Tools Pass-Thru�
- Crimps: Yes
- Department: Electrical
- Depth: 5.3000 in
- Handle Color: Yellow/Black
- Height: 1.0000 in
- Material: Steel with Chrome
- Overall Length: 5.5" (14 cm)
- Overall Width: 1.75" (4.5 cm)
- Position Pair Conductors: 8-Position, 4-Pair/8-Conductor
- Product Details: Crimper
- Product Group: Hand Tools
- Product Subgroup: Pliers & Cutters
- Product Type: Crimper
- Weight: 0.6000 lbs
- Width: 2.3000 in
Professional Applications
- Data Center Cable Terminations
- Network Infrastructure Installation
- Telecommunications Wiring Projects
- Commercial Building Data Systems
- Professional Audio/Video Installations
- Industrial Control System Wiring
- Structured Cabling Applications
Why Choose Klein Tools Quality?
Klein Tools delivers professional-grade reliability with steel with chrome construction and precision engineering. The compact design with replacement blade availability ensures long-term value and consistent performance for demanding data cable installation requirements.
Manufacturer Resources
Spec Sheet
Product Specs
- Cable Size:
- CAT5e, CAT6
- Connector Type:
- RJ45 Klein Tools Pass-Thru™
- Crimps:
- Yes
- Handle Color:
- Yellow/Black
- Overall Length:
- 5.5" (14 cm)
- Overall Width:
- 1.75" (4.5 cm)
- Position Pair Conductors:
- 8-Position, 4-Pair/8-Conductor
- Department:
- Electrical
- Product Group:
- Hand Tools
- Product Subgroup:
- Wire Strippers & Crimpers
- Product Type:
- Crimper
- Product Details:
- Crimper
- Product Height:
- 1.0000 in
- Product Material:
- Steel with Chrome
- Product Weight:
- 0.6000 lbs
- Product Width:
- 2.3000 in
- Product Depth:
- 5.3000 in
Klein Tools VDV226-005 – Frequently Asked Questions
1) Will the Klein VDV226-005 crimper work with standard (non pass-through) RJ45 connectors?
No. The VDV226-005 is built specifically for Klein Tools RJ45 Pass-Thru connectors, where the conductors run all the way through the connector and the tool crimps and trims the excess in one squeeze. Standard RJ45 plugs where the wires stop inside the connector body need a conventional 8P8C crimper instead. If your crew already stocks regular plugs, either switch them to Pass-Thru style or keep a standard crimper on the van.
2) Does the Klein pass-through RJ45 crimper handle CAT6 as well as CAT5e?
Both. The tool is rated for CAT5e and CAT6 round STP or UTP cable on an 8-position, 4-pair/8-conductor layout, which is the standard four twisted pairs in a data drop. Shielded or unshielded both work as long as you are using the matching Klein Pass-Thru connector for that cable type.
3) Do I need a separate flush cutter to trim the wires after crimping with this Klein tool?
No separate cutter needed. The trim function is built into the crimp stroke, so the conductors sticking out past the front of the Pass-Thru connector are sheared off as you crimp. That is the whole point of the pass-through workflow: you pull all eight conductors through, verify the order visually at the nose of the plug, then crimp and trim in one motion.
4) Is the VDV226-005 small enough to use inside a wall box or a crowded rack?
That is what the compact version is for. Overall length is 5.5 inches (14 cm) and overall width 1.75 inches (4.5 cm), at 0.6 lbs, so it fits in a pouch and you can work it one-handed in a loaded patch panel or behind a mounted AV plate where a full-size VDV crimper will not swing.
5) My techs keep getting the pair order wrong on data drops. Does this tool help with that?
It helps two ways. There is a wiring guide printed on the tool itself for reference at the drop, and because the connector is Pass-Thru the conductors exit the front of the plug so you can read the color order before you commit to the crimp. Wrong order gets caught before the plug is scrap.
6) What is the exact Klein part number for the compact pass-through RJ45 crimper?
Klein Tools VDV226-005. It is a single-configuration tool, no handing, size, or finish choices to specify, so that one number is the complete order.
7) What is the Klein pass-through crimper made of, and will it hold up to daily field use?
Steel with a chrome finish, with yellow and black handles. It is a dedicated-nest tool rather than a multi-purpose plier, and Klein offers replacement blades for the trim station, so the cutting edge is a wear item you can renew instead of replacing the whole crimper.
