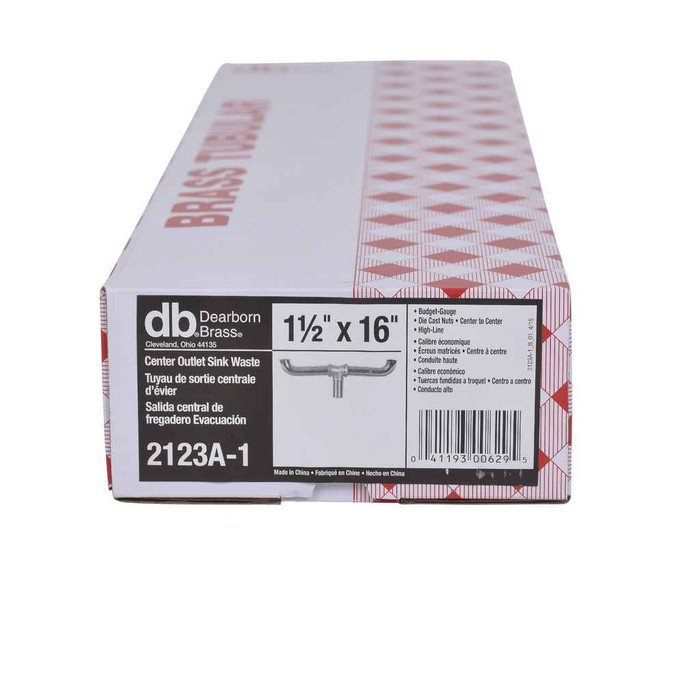

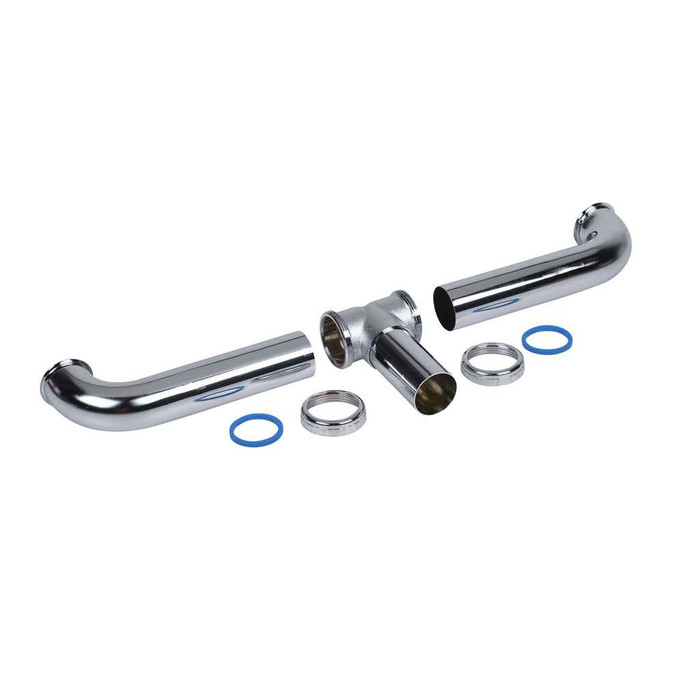

OATEY 2123A-1 Dearborn® 1-1/2" x 16" Center To Center, Hi-Line - Budget Ga.

The 16 inch dimension is the distance from the center of the overflow to the center of the tub drain shoe, which is what has to match the tub you are setting. The Dearborn 2123A-1 is built at 16 inches center to center; Oatey also offers the same Hi-Line waste in a 21 inch length for deeper or taller tubs, plus a baffle tee option. Measure your tub's overflow-to-drain centers before you pick between them.

Yes. The 2123A-1 is a 1-1/2 inch waste and tee assembly, so it mates with 1-1/2 inch tubular drain piping at the outlet. It is the Hi-Line flanged style connection, so the overflow and shoe seal against the tub with flanges and gaskets rather than a slip joint at the tub wall.

Brass, with a chrome finish on the exposed parts. For a property manager replacing a corroded plastic waste in a rental tub, a brass tubular assembly is the upgrade path; it is the budget gauge version of the Dearborn brass line, so wall thickness is lighter than the heavy-gauge Dearborn options.

Yes, the cleanout is included with the assembly. That matters on a remodel where the tee sits in a joist bay you will not be able to reach again once the ceiling below is closed up.

Order Oatey part 2123A-1. That is the Dearborn 1-1/2 inch, 16 inch center to center, Hi-Line flanged, budget gauge waste and overflow in chrome-finished brass. The 21 inch version and the baffle tee are separate part numbers in the same family.

It is listed at 1.25 lbs, with a shipping volume of 0.098. Light enough that a plumber stocking several tub kits on the truck for a multi-family turn is not adding meaningful weight per unit.
