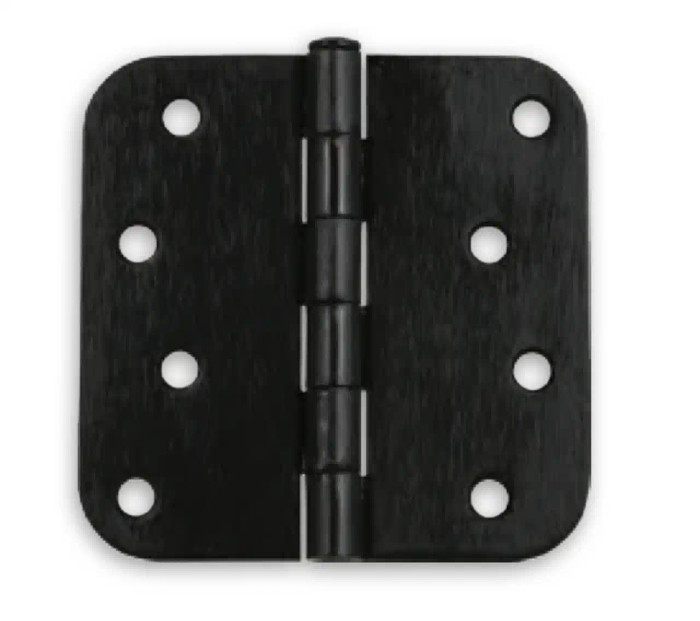

Delaney 4" x 4" Bulk Residential Hinges Exterior, 5/8" Radius, Non-Removable Pin (Pair)

The Delaney exterior residential hinge is a 4" x 4" full mortise hinge with 5/8" radius corners, so it drops into an existing 4 x 4 mortise cut with a 5/8 radius router template. If your door and jamb are prepped square corner or 1/4 radius, the leaf won't seat correctly without rework. Measure an existing hinge before ordering: corner radius is the detail people miss.

NRP means the hinge pin is locked in place so it can't be tapped out from the hinge side. On an out-swinging exterior door the barrels are exposed outside, and without NRP someone can drive the pin out and lift the door off. These Delaney 4 x 4 hinges are built NRP for exactly that reason. If your door swings inward, the barrels are on the protected side and NRP matters less.

These Delaney hinges are priced and sold by the pair, two hinges per pack, and they come 50 pair to a carton for bulk buyers. A standard residential door takes three hinges, so one pair covers two of the three leaves and you'll need a second pair (or order in odd counts accordingly) per door. Property managers doing a building at a time should plan on 1.5 pair per opening.

No. The Delaney 4 x 4 NRP hinge is rated residential and built from 0.087" gauge steel, which suits an exterior house or apartment unit door, not a high-traffic commercial opening. For commercial duty look at a heavy weight ball bearing hinge such as the Don-Jo HWBB84545 in 4-1/2" x 4-1/2", or the Hager BB1168, which is a heavy duty full mortise ball bearing hinge that is also available non-removable pin.

Not directly. A 4" x 4" hinge needs a deeper and taller mortise than a 3-1/2 inch leaf, so you'd be routing both the door and the jamb. Stay with a 3-1/2 size instead: the Emtek 91013 residential plain bearing hinge and the Schlage Residential S3P1010 are both 3-1/2" x 3-1/2" square corner, and the Deltana DSB35 is a 3-1/2 residential square hinge.

The Deltana DE44R5TA is the nearest match in the set: a 4 inch by 4 inch steel hinge pair with 5/8 inch radius corners and a security pin, the same size and corner radius as the Delaney 4 inch by 4 inch 5/8 inch radius non-removable pin pair. Both are sold by the pair, so ordering quantity carries over one for one on a two-hinge-per-door opening.

The Delaney 4 inch by 4 inch pair has 5/8 inch radius corners and needs a radiused mortise. For a square corner pocket with the same pin security, the Deltana CSB45N is a 4-1/2 inch by 4-1/2 inch square corner hinge pair with a non-removable pin. Note the leaf size steps up to 4-1/2 inch, so the mortise depth and height differ from a 4 inch hinge.

#9 x 1" wood screws are supplied with each pair, which is the right fastener for a wood door and wood jamb. If you're hanging into a steel frame or want longer screws driven into the stud behind the jamb for pull resistance, you'll need to source those separately.

Yes, these Delaney residential hinges are packed 50 pair per carton, which is 100 hinges, enough for roughly 33 three-hinge doors. Same 4 x 4 size, 5/8 radius and NRP throughout, so you can standardize every exterior unit door on one part and one finish.

Not a direct one. The Orca 4014 Series is a 4 inch by 4 inch plain bearing commercial hinge with a 1/4 inch radius corner, so the corner profile differs from the Delaney 5/8 inch radius and it will not seat correctly in a 5/8 inch radiused mortise. The Orca COM4040 is 4 inch by 4 inch with square corners, which likewise needs a different prep. Neither is described as having a non-removable pin, so they do not carry the Delaney security feature.

For interior residential doors where pin security is not a concern, the Emtek 91013 is a residential duty plain bearing hinge pair in plated steel at 3-1/2 inch by 3-1/2 inch with square corners, and the Ives 1010RP is a steel plain bearing residential hinge with square corners sold in sets of three. Both are smaller leaf sizes than the Delaney 4 inch by 4 inch and neither carries the non-removable pin feature, so keep the Delaney where the door swings out and the pin is exposed.

A spring hinge is a different product, not a substitute. The Stanley 2060R is a full mortise square corner spring hinge at 4.5 inch by 4.5 inch in a heavy duty rating, which adds self-closing action but has square corners and a larger leaf than the Delaney 4 inch by 4 inch 5/8 inch radius pair, and is not described as having a non-removable pin. If you need both self-closing and pin security on an out-swing door, plan on a separate closer with the Delaney hinges.

The Delaney 4 inch by 4 inch NRP pair is a residential exterior hinge whose non-removable pin stops someone from pulling the pin and lifting the door. For detention-grade openings the set carries purpose-built options: the BEST BB855 heavy-duty steel double weight concealed ball bearing prison hinge in the Detention Hardware series, and the Hager 990 STEEL full surface prison hinge at 3 inch by 4 inch with a welded tip in a heavy duty rating. Those are full surface or double weight constructions and require different door and frame prep than a residential full mortise hinge.

Two finishes: 625 Bright Chrome and 613 Satin Bronze Oil-Rubbed. If you're matching other openings in a building, 613 is the common dark bronze pairing with oil-rubbed levers and deadbolts, and 625 is the polished chrome match.

Steel, at 0.087" gauge. That is the standard residential exterior hinge material and it takes the plated finishes offered here. If you need a non-ferrous body for a coastal or corrosive environment, a steel hinge is the wrong base material and you should be looking at a non-ferrous hinge such as the McKinney T2314.

The Ives 3CB1 is a 3-knuckle concealed bearing full mortise hinge in a medium duty commercial rating, with the bearings hidden inside the knuckles for a smoother swing on frequently used doors. The Delaney 4 inch by 4 inch is a residential exterior full mortise hinge in 0.087 inch gauge steel whose distinguishing feature is the non-removable pin that blocks pin removal on an out-swinging door. Choose by whether the priority is bearing action on a high-cycle door or pin security on an exterior swing.

Only if your frame is not prepped for a mortised leaf on both sides. The Delaney 4 inch by 4 inch NRP is a full mortise hinge, recessed into both the door edge and the jamb. The Hager 1129 is a half mortise plain bearing hinge at 4-1/2 inch standard weight, which mortises into the door but surface mounts to the frame, and the Hager 990 STEEL is a full surface hinge that mounts on the face of both. Confirm the existing prep before switching mounting styles.
