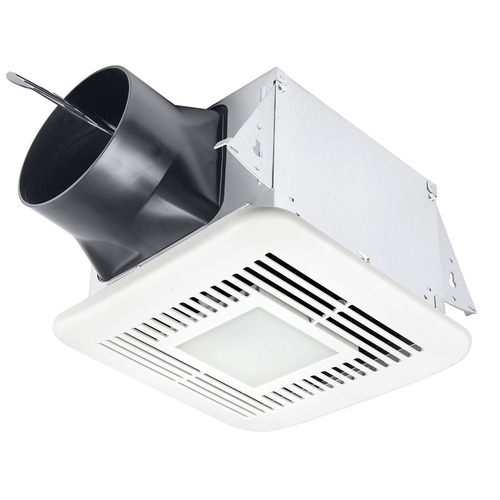

Delta Breez Elite - ELT80-110MH Exhaust Fan with Motion, Humidity Sensor, and High Speed Adjustable 80/110 CFM

Delta Breez Elite - ELT80-110MH Exhaust Fan with Motion, Humidity Sensor, and High Speed Adjustable 80/110 CFM

(No reviews yet) Write a Review

Model: ELT80-110MH
From the BreezElite Collection
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$209.83
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Delta BreezElite ELT80-110MH ENERGY STAR® qualified fan is the perfect fit for room side installation, featuring installer-friendly pocket mounting brackets and adjustable high-speed options for an affordable price.
ELT80-110MH is an exhaust fan rated for 80 or 110 CFM, which offers quiet energy efficient operation. It is not just ENERGY STAR rated, it exceeds Energy Star Most Efficient requirements. Energy Star Most Efficient recognizes the top ENERGY STAR labeled products.

Features

  • Adjustable high speed 80 or 110 CFM fan for spaces up to 110 sq. ft.
  • Brushless DC Motor outlasts typical AC motors by 2-1/2.
  • Very quiet at 0.5 sones.
  • Energy star®-qualified.
  • Installer-friendly pocket mounting brackets for room-side installation.
  • 6" duct, includes 6" to 4" duct reducer.
  • Adjustable high speed options of 80 or 110 CFM.
  • Housing size 8-1/4" x 8" x 7-7/8".
  • Built-in adjustable humidity sensor so that fan runs at full speed (80/110 CFM) when humidity is above the user-adjustable set-point and runs continuously at a pre-set lower level (0,50,80 CFM) when humidity is below the set-point.
  • Adjustable humidity set points between ~50% to ~80% RH.
  • Built-in motion sensor so when motion is detected, fan runs at full speed. When user leaves, fan remains running at full speed until delay time (10 minutes) has passed, then fan runs humidity control mode.
  • UL and cUL for ceiling mount installation.
  • UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.
  • 3 yr. limited warranty.

Product Specs

Subcategory:
BreezElite
Fan Speed:
Continuous Low Speed/Full Speed
Static Pressure:
0.1 - 0.25
Maximum CFM:
110
Sones:
0.3 - 2.0
Current:
0.27 Max.
Duct Size:
4" - 6"
Duct Diameter:
4" - 6"
Energy Star:
Yes
Warranty:
3 Year Limited
Product Group:
Washroom/Bath
Product Subgroup:
Ventilation Fans
Collection:
BreezElite
Product Voltage:
120/60
Product Height:
7-7/8"
Product Category:
Ventilation Fans
Product Width:
10-3/4"
Department:
Plumbing
Product Depth:
10-3/4"

Delta Breez ELT80-110MH – Frequently Asked Questions

1) Will the Delta Breez ELT80-110MH work with 4 inch duct, or do I have to run 6 inch?
The housing is built for 6 inch duct and ships with a 6 inch to 4 inch reducer, so it connects to either. Duct range is listed as 4 to 6 inches. On a retrofit where the existing run is 4 inch flex, use the reducer, but understand the fan is rated at 0.1 to 0.25 inches static pressure, so a long or crushed 4 inch run will cost you airflow. New construction pulling 110 CFM should go 6 inch the whole way.
2) What size bathroom does an 80/110 CFM Delta Breez Elite fan cover?
Delta rates the ELT80-110MH for spaces up to 110 square feet, and the high speed is field adjustable between 80 and 110 CFM. Set it at 80 for a standard 5x8 bath, and at 110 for a larger master bath or one with a separate tub and shower area.
3) Can this Delta Breez fan be installed over a tub or shower?
Yes. The ELT80-110MH is UL and cUL listed for tub and shower enclosure use, but only when the branch circuit feeding it is GFCI protected. It is also UL and cUL listed for ceiling mount. Wire it to a GFCI protected circuit if it sits inside the enclosure.
4) How does the humidity and motion sensor actually control the fan?
Two behaviors stack. The fan runs continuously at a preset low level (selectable 0, 50, or 80 CFM) while humidity sits below your set point, then jumps to full speed (80 or 110 CFM) once humidity crosses it. The set point is adjustable from roughly 50 to 80 percent RH. Separately, motion in the room kicks it to full speed, and it stays there for a 10 minute delay after the person leaves before dropping back to humidity control. That means no wall switch is needed for normal use.
5) Can I replace a bath fan from below without going into the attic?
That is what the Elite housing is built for. It uses pocket mounting brackets for room side installation, so a remodeler or property manager can mount it through the ceiling opening rather than crawling the attic. The housing measures 8-1/4 x 8 x 7-7/8 inches, so confirm your existing ceiling cutout and joist bay clear that before you pull the old unit.
6) How loud is the Delta Breez ELT80-110MH?
Rated 0.5 sones in Delta's feature list, with a published range of 0.3 to 2.0 sones depending on speed and the CFM setting. At the low continuous setting it is near silent, which is what makes it workable for multi-family or hospitality where the fan runs around the clock on humidity control.
7) Is the Delta Breez Elite fan Energy Star qualified for a green building or rebate program?
Yes, and Delta states it exceeds the Energy Star Most Efficient requirements, which is the tier above standard Energy Star labeling. The brushless DC motor is what gets it there, and Delta says that motor outlasts typical AC motors by 2-1/2 times. For a spec that calls out Energy Star ventilation, the ELT80-110MH documents it.
8) Do I need a separate timer or humidistat switch with this fan?
No. The humidistat and the occupancy sensing are built into the ELT80-110MH, including the adjustable RH set point and the 10 minute run-on after motion stops. Wiring it to a plain constant-hot feed is enough. Adding an external timer switch on top of it only fights the onboard logic.
9) Where can I get the submittal sheet and install instructions for the ELT80-110MH?
Delta publishes both a submittal sheet and an installation manual for this model, and ZenSupply hosts them on the product record. The submittal is what you hand over for a spec review or permit set; the install manual covers the pocket bracket mounting and the sensor set point adjustments.
