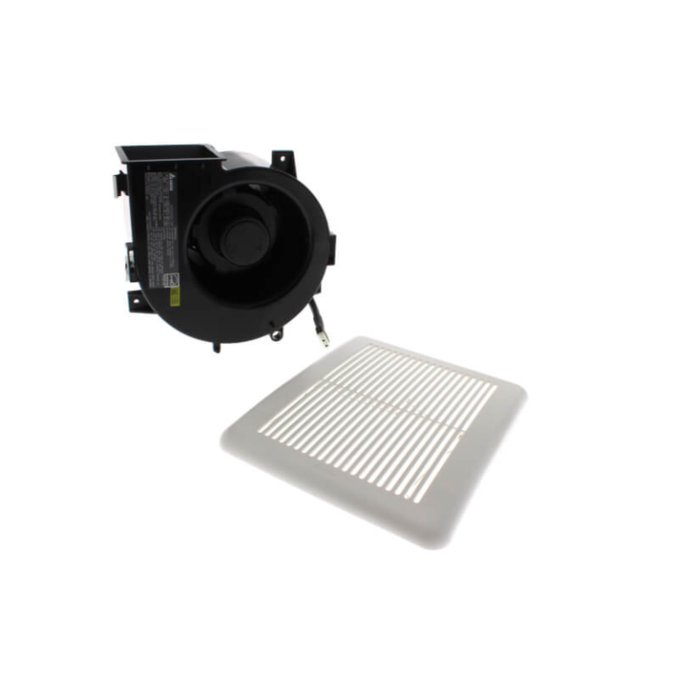

Delta Breez BreezIntegrity ITG50-B Replacement Motor and Grille Assembly
The ITG50-B is a drop-in replacement motor and grille assembly for existing Delta Breez BreezIntegrity exhaust fan housings. It restores full ventilation performance without requiring housing replacement, making it the correct service part for property managers, contractors, and facilities teams maintaining BreezIntegrity installations.
Key Specifications
- Airflow: 50 CFM
- Duct diameter: 4"
- ENERGY STAR certified
- Warranty: 3-year limited
Compatibility

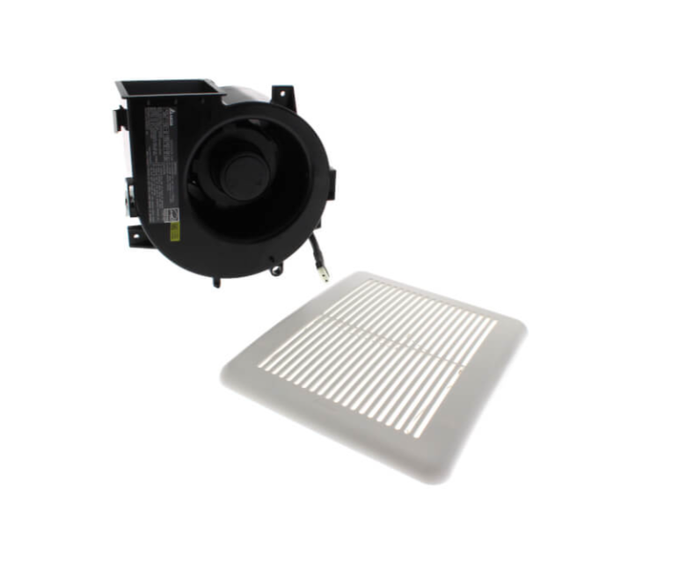

Designed for use with Delta Breez BreezIntegrity series housings. Confirm existing housing model before ordering. Assembly includes the motor/blower unit and louvered grille cover.
Manufacturer Resources
Product Specs
- Subcategory:
- BreezIntegrity
- Duct Size:
- 4"
- Duct Diameter:
- 4"
- Energy Star:
- Yes
- Warranty:
- 3 Year Limited
- Product Group:
- Washroom/Bath
- Product Subgroup:
- Ventilation Accessories
- Collection:
- BreezIntegrity
- Product Type:
- Grille
- Product Height:
- 5/3/04
- Product Category:
- Ventilation Fans
- Product Width:
- 10/3/04
- Department:
- Plumbing
- Product Depth:
- 9/3/08
- Parts and Accessories Type:
- Grille
- Application:
- Ventilation Fan
Delta Breez ITG50-B – Frequently Asked Questions
1) Can I replace just the motor on a Delta Breez BreezIntegrity fan without pulling the housing out of the ceiling?
That's exactly what the ITG50-B is. It's the motor and grille assembly for the BreezIntegrity ITG50 fan, sold as a service part so you swap the blower and the white louvered cover and leave the existing housing and 4 inch duct connection in the ceiling. For a property manager with drywall already closed up, that's the difference between a 15 minute fix and a ceiling repair.
2) Will the ITG50-B fit my existing 4 inch bath fan duct?
The duct connection on the ITG50 is 4 inches, which is the standard bath fan size on residential and light commercial installs. Since this is the motor and grille only, the duct actually lands on the housing already in your ceiling. Confirm the housing you have is a BreezIntegrity ITG50 and the ductwork is untouched by the swap.
3) Will a Delta Breez BreezIntegrity motor assembly fit a Delta Breez Slim, Signature, or Radiance housing?
No. The ITG50-B is built for BreezIntegrity ITG50 housings only. Delta's other Breez lines use their own housing geometry and mounting, so a motor plate from one series does not seat in another. If the label inside your existing housing does not read ITG50, get the model number off that label before ordering a service assembly.
4) I manage a building with a dozen of the same bath fans running loud or not at all. Is a motor assembly the right call over new fans?
If the housings are BreezIntegrity ITG50 and the ducting is sound, the ITG50-B settles it: you're buying the moving part and the visible part, and the ceiling stays closed. Standardizing on one service assembly across the fleet also means one part number on the truck for every unit. Replace the whole fan only when the housing itself is damaged or the airflow requirement has changed from 50 CFM.
5) Is the Delta Breez ITG50-B replacement assembly ENERGY STAR rated?
Yes, the ITG50 motor and grille assembly carries ENERGY STAR. That matters when the fan is part of a program-qualified unit or a spec that called out an ENERGY STAR exhaust fan: dropping in this assembly keeps the opening compliant rather than downgrading it with a generic motor.
6) Does the ITG50-B come with the grille cover, or do I need to order that separately?
Both parts ship together. The ITG50-B is the motor and blower assembly plus the white louvered grille, so you get a fresh cover along with the working part. No separate grille order needed, which is worth knowing when the old louver is yellowed or broken and that's half the reason for the callback.
7) What model do I order for a 50 CFM Delta Breez Integrity fan motor replacement?
Order MPN ITG50-B from Delta Breez. The ITG50 designation identifies the 50 CFM BreezIntegrity unit, and the -B suffix is the replacement motor and grille service assembly rather than a complete fan. Distributors ordering against a job list should quote the full ITG50-B, since the base ITG50 number refers to the whole fan.
