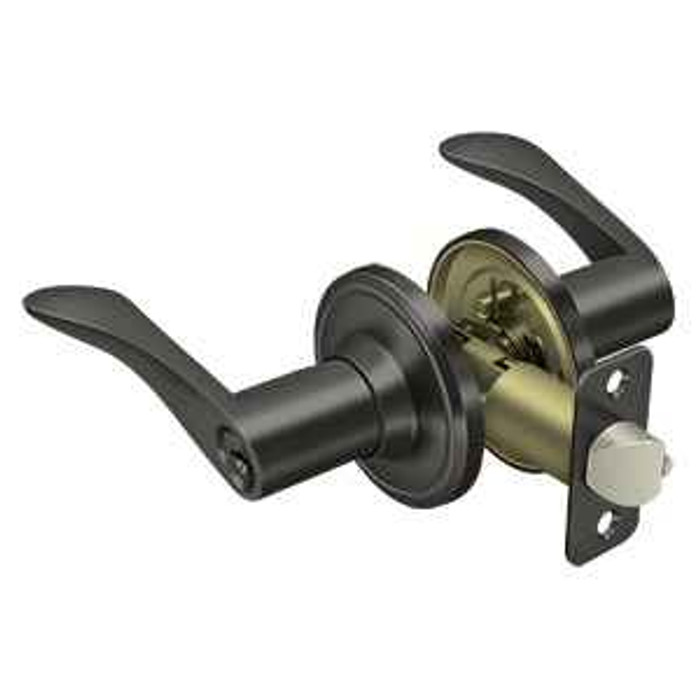

Deltana 6861 Trelawny Lever Entry

Both. The latch on the 6861 Trelawny entry set is adjustable between 2-3/8 and 2-3/4 inches, which are the two backsets bored doors are prepped for, so you don't have to measure from the door edge to the crossbore center before ordering.

The 6861 uses a Kwikset compatible keyway, so a locksmith can key it to an existing Kwikset key system. It is a single cylinder entry function: key outside, thumbturn or button inside. Keying can be ordered keyed different or keyed alike, and you can supply a key code with the order.

Yes, handing is a required choice on the 6861 Trelawny. It ships right hand or left hand, so stand outside the door: if the hinges are on your right it's right hand, hinges on the left it's left hand. Each of the seven finishes is offered in both hands.

It's a residential grade tubular lockset in steel and zinc, right for a house, condo, or apartment interior and entry doors. For a commercial opening with real traffic or a fire rated door, step up to something like the Hager 2525 Grade 2 cylindrical entry lock or the Dexter C1000 Grade 1 entry/office lever.

Yes. Keyed alike is a selectable keying option on the 6861, so a set ordered together runs on one key, which is what you want for a duplex or a rental with a front and back door. Keyed different is the other option, and you can also submit a specific key code to match locks already in the building, provided they are on the Kwikset keyway.

On a standard bored door it usually is. The 6861 is a tubular lockset with an adjustable 2-3/8 or 2-3/4 inch backset and a 1-3/8 to 2 inch door thickness range, which covers the prep a Kwikset residential entry lever like the 200 or 300 series Breton sits in, and the Kwikset compatible keyway means your existing key can be carried over by a locksmith. Check the crossbore is the standard 2-1/8 inch bore.

No. The Deltana 6861 Trelawny is a keyed tubular entry lockset with a live latch. A dummy lever is fixed trim with no latch and no cylinder, used on an inactive leaf or a pull. Dummy trim in the same lever look includes the Baldwin Estate 5103 half dummy in left hand and right hand versions with the 5048 rose, the Emtek Arts and Crafts and Cortina dummy pairs, the Callan Bentley Grade 2 dummy lever, and the BEST 9K single dummy trim. Ordering dummy trim for an opening that needs to latch and key leaves the door unable to close or lock.

The Deltana 6861 Trelawny is a residential tubular entry leverset with a single cylinder and an adjustable 2-3/8 or 2-3/4 backset. For an entry function with a stated commercial grade, the Hager 2525 is a Grade 2 commercial cylindrical entry lock with a lever handle and a 1-3/8 to 2 inch door thickness range, which matches the 1-3/8 to 2 inch range the 6861 covers. The Falcon B511CP6D is a Grade 2 medium duty cylindrical lever in entry/office function, and the Dexter C1000 entry/office is a Grade 1 clutching keyed lever with a 1-3/8 to 1-3/4 inch door thickness range.

The Deltana 6861 Trelawny is keyed entry with a single cylinder, so it is not the right pick for a door that only needs to latch. For passage function in a residential setting, the Kwikset 200BRNL Breton is a Grade 3 passage lever set with a 1-3/8 to 1-3/4 inch door thickness range, and the Callan Asheville is a Grade 3 passage leverset in satin nickel. The Bravura Atlanta, Orlando and Tampa are Grade 2 passage leversets, with the Tampa carrying square trim and the Atlanta and Orlando round trim.

The Deltana 6861 Trelawny is Kwikset keyway compatible, so it keys alike with a Kwikset-keyed system. If the building is on Schlage C, the Cal-Royal AG00 entrance lever is a Grade 2 with a 6-pin Schlage C keyway keyed different and a 2-3/8 inch backset, and the Cal-Royal AG03 classroom lever uses the same 6-pin Schlage C keyway with a 2-3/4 inch backset. For a knob rather than a lever, the Arrow MK33-BD-CS asylum lock uses a conventional cylinder in Schlage C keyway.

The 6861 is the entry (keyed) function in the Trelawny lever line, and Deltana builds the same lever in passage and privacy functions for interior doors. If you'd rather standardize on one brand across the whole unit, the Baldwin Estate 5103 comes as passage, privacy, and left or right hand half dummy, and the Bravura Atlanta and Orlando are Grade 2 passage leversets.

An entry lever like the Deltana 6861 Trelawny uses a key on the outside, which is not what a bath or bedroom door wants. Privacy function alternatives include the Kwikset 300BRNL Breton privacy lever set, Grade 3, for doors 1-3/8 to 1-3/4 inch thick, the Baldwin Estate 5103 privacy lever with the 5048 rose, and the Hager 2540 Grade 2 privacy cylindrical lock with the Withnell lever for doors 1-3/8 to 2 inch. Arrow MK02-TA is a privacy cylindrical lock with a Tudor knob rather than a lever if a knob suits the room.

The Deltana 6861 Trelawny covers doors 1-3/8 to 2 inches. For thicker stock, the Falcon K101 is a Grade 1 heavy duty cylindrical lock rated 1-3/8 to 2-1/4 inches, though it is passage function with non-handed levers rather than keyed. Among keyed options on heavier doors, the Corbin Russwin CL33903 electrified lever is rated 1-3/4 to 2 inches. Confirm the actual door thickness before ordering, since a lever sized for a 1-3/8 inch door will not spindle through a thicker slab.

The Deltana 6861 Trelawny is a single cylinder keyed entry lever, so every tenant change means a rekey. Keyless lever options include the Delaney LP250 electronic keypad leverlock, Grade 2, and the Emtek Classic keypad leverset. On the mechanical side, the Lockey 1150 heavy duty keypad lever set with double combination handles doors 1-1/8 to 2 inches, and the Lockey 2835 mechanical pushbutton lever fits 1 3/16 to 2 inch doors. The Lockey units are passage function, so the code retracts the latch rather than releasing a keyed lock.

An entry lever such as the Deltana 6861 Trelawny lets the inside lever unlock the outside, which is not the behavior a stockroom wants. Storeroom function keeps the outside lever fixed and key-only: the Cal-Royal AG05 is a Grade 2 storeroom lever lockset with a deadlocking latchbolt for doors 1-3/8 to 1-3/4 inch, and the Hager 2580 is a Grade 2 storeroom cylindrical lock with the Withnell lever for doors 1-3/8 to 2 inch. For utility and institution openings, the Dexter C1000 asylum lock is Grade 1 and covers 1-3/8 to 2 inch doors.

The Deltana 6861 Trelawny is ordered by hand, left or right, so the door swing has to be determined before the order goes in. If handing is a problem across a mixed set of doors, the Falcon B101 is a Grade 2 cylindrical passage lever with a non-handed design and the Falcon K101 is a Grade 1 passage lock with non-handed levers. Both are passage rather than keyed entry, so they suit interior doors where nothing needs to lock.

Yes. The Deltana 6861 Trelawny is a residential leverset. Where a fire rated opening is involved, the fire rated peers are the Corbin Russwin CL3110, a Grade 1 vandal resistant passage lever for doors 1-3/4 to 2 inch, the Falcon K101 Grade 1 passage lock, and the Arrow MK02-TA privacy cylindrical lock. Each of those is non-keyed function, so a fire rated opening that also needs a key calls for a keyed commercial lever confirmed against the door label.

The Deltana 6861 Trelawny is a keyed tubular entry lever on its own, with the deadbolt ordered separately if the door needs one. The Callan Bennett is a Grade 3 entrance leverset supplied as a deadbolt combo, so lever and bolt arrive together and key on one system. Other single-unit entrance levers include the Callan Artino Grade 3 entrance leverset, the Cal-Royal AUS00 Grade 3 entrance/office lever with a solid brass forged body for doors 1-3/8 to 1-3/4 inch, and the Master Lock BC Series return style keyed entry lever, Grade 3.

Steel and zinc construction. That's a residential duty lockset, fine for a house or apartment front door and the interior doors behind it. Where the opening sees institutional traffic, a forged brass body like the Cal-Royal AUS00 entrance lever or a heavy duty commercial lever is the better call.

The Deltana 6861 Trelawny is a tubular lockset with an adjustable 2-3/8 or 2-3/4 backset in lever form. The Arrow HK11-BB is an entrance cylindrical lock with a turn-pushbutton and a ball knob for doors 1-3/8 to 1-3/4 inch, which is the same broad cylindrical family but a knob rather than a lever. Where ADA lever operation is required by the facility, a knob is not an equivalent, and the Lockey 2835 is the peer that states ADA compliance in lever form.
