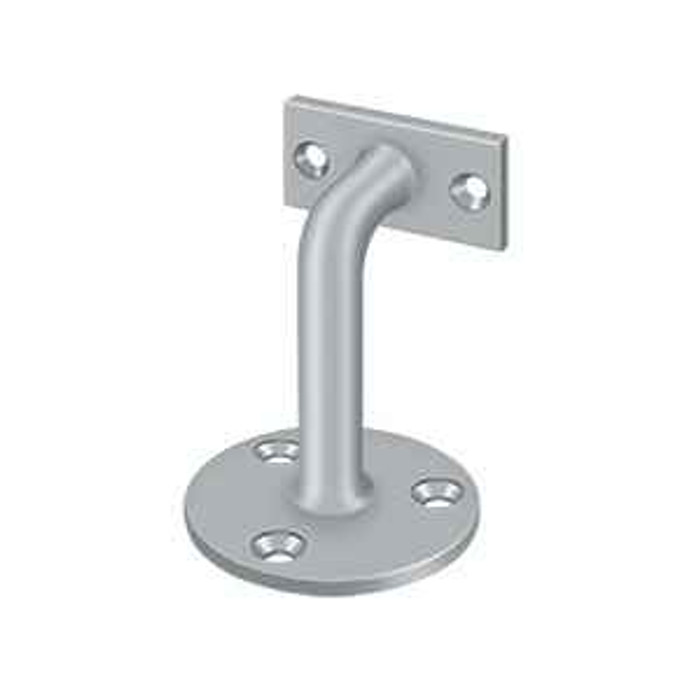

Deltana HRC253 Hand Rail Brackets, 3" Projection

Three inches of projection. That is the number to check first, because it sets how much room a hand has between the rail and the wall once your rail diameter is added, and code officials look at that clearance on commercial stairs. If 3 inches is not enough standoff for your rail profile or your wall trim, Delaney's 3-1/2 inch heavy duty handrail bracket is the longer option. Anything shorter than 3 inches and you are into decorative brackets rather than this size.

The wall base measures 2-1/4 inches, so you need that much flat, solid backing at each bracket location. On a stair with narrow trim, a thin stringer face, or a wainscot cap in the way, measure before you commit. It also matters on a replacement: a 2-1/4 inch base will only hide the old screw holes if the bracket coming off was the same size or smaller.

One bracket per unit, each packed in its own poly bag with matching screws. So a stair run needs multiple units ordered, one for every bracket location plus the ends. The screws supplied are matched to the bracket, which saves hunting for finish-matched fasteners, but the anchoring into your studs or blocking is a site call and depends on what is behind the drywall.

The Delaney 3 inch handrail bracket, DLY-4061, is the direct like-for-like at the same nominal 3 inch size. The Deltana HRC253 is a solid brass bracket with a 3 inch projection and a 2-1/4 inch base, packed individually with matching screws, and it comes in ten finishes including oil rubbed bronze, brushed nickel, polished chrome, polished brass, unlacquered brass and PVD polished brass. If the rail-to-wall standoff on the run is already set at 3 inches and you are adding or replacing brackets partway along it, either bracket keeps the rail line where it is. Where they part company is the base and the finish program: the HRC253 gives you a 2-1/4 inch base plate and the brass finish range above, so match the base footprint to the existing wall or newel prep before you mix the two on one run.

Step up to the Delaney 3-1/2 inch heavy duty handrail bracket, DLY-40615, which carries a 3-1/2 inch size designation against the 3 inch projection of the Deltana HRC253. That extra half inch matters where the wall finish is thick, where a chair rail or wainscot cap runs behind the handrail, or where a knuckle-clearance requirement on a stair means fingers need room to slide past the bracket without catching. Do not treat the two as mixable on the same run: changing from a 3 inch to a 3-1/2 inch bracket moves the entire rail line a half inch off the wall, so pick one projection and carry it through every bracket on the flight.

Deltana lists the HRC253 as commercial, and the bracket is solid brass rather than a plated pot-metal casting, which is what carries the load on a rail people actually pull on. For a multi-family common stair or a hotel corridor rail, that is the construction you want. Brass is the substrate all the way through, so a scuff on the finish does not expose a different base metal.

Ten finishes, which is why these get specified when the rail has to match the levers and hinges already on the floor: oil rubbed bronze, brushed nickel, antique nickel, paint black, polished chrome, brushed chrome, polished brass, unlacquered brass, antique brass, and PVD polished brass. The mounting screws ship matched to the bracket finish, so the heads do not stand out against the base.

All three start from the same solid brass bracket; the difference is what is on top. Polished brass is lacquered, and on a rail that hands touch all day the lacquer eventually wears through at the contact points. Unlacquered brass is bare metal that darkens and patinas with handling, which is the look you want on a restoration or a period building but not what a property manager wants if the goal is uniform appearance. PVD polished brass is a vapor-deposited coating, the hardest of the three against tarnish and wear, and it is the one to pick for a high-traffic stair or an exterior rail where you do not want to be repolishing.

Delaney's 3 inch handrail bracket is the direct match on projection. Orca Hardware's 10ST Series is another handrail bracket to look at, with the 10HD Series as their heavy duty version. The Deltana is the one to stay with if the finish has to match a specific hardware schedule, since it is offered in ten finishes including PVD polished brass and unlacquered brass.

Two different problems. The HRC253 is solid brass with a 3 inch projection and a 2-1/4 inch base, specified as commercial, and it is the choice when appearance and finish matching drive the job. Where the rail takes real abuse (a service stair, a dock, a school corridor), the heavy duty options are Orca Hardware's 10HD Series or the 10XL Series with a round base, and Delaney's 3-1/2 inch heavy duty bracket. Note the 10XL uses a round base, so if you are reusing existing screw holes the hole pattern will not carry over from a square-base bracket.

The Deltana HRC253 is a solid brass handrail bracket at 3 inch projection with a 2-1/4 inch base, catalogued for commercial use. Where the loading is harder - an apartment common stair, a back-of-house run in a hotel, a school corridor rail that gets leaned on all day - the heavy duty alternatives are the Orca Hardware 10HD series heavy duty handrail bracket and the Orca Hardware 10XL series heavy duty handrail bracket with round base. Both are catalogued by Orca with a handrail bracket function. The trade you are making is finish program against bracket weight: the HRC253 gives you ten finishes to match existing brass, bronze, nickel and chrome hardware on the property, while the Orca heavy duty brackets are the option when the fastening and body need to carry more abuse than decorative brass trim.

The Orca Hardware 10XL series heavy duty handrail bracket is the one built with a round base, so it is the closer match if the old bracket left a circular paint shadow or a round mounting pattern on the wall. The Deltana HRC253 works to a 2-1/4 inch base with matching screws packed in the bag, so on a replacement job you are covering or re-prepping to a 2-1/4 inch footprint. This is the detail worth checking before the order goes out: on a painted or papered stair wall, a base that lands smaller than the one coming off leaves an outline that has to be patched, and on a newel post or a stud-backed wall the new screw pattern has to find sound material rather than the old holes.

They are not the same bracket. Orca Hardware catalogues the 10ST series as a handrail bracket and the 10HD series as a heavy duty handrail bracket, so the series letters are the duty rating, not a finish or packaging code - ordering the 10ST when the drawing called for a heavy duty bracket gets you a lighter part in the same family. If the run in question is currently carried on a Deltana HRC253, that bracket sits at 3 inch projection with a 2-1/4 inch base in solid brass, and any Orca substitution needs its own projection and base confirmed against that before you mix them on one flight. Sort the duty question first, then the projection, then the finish.

Brass holds up outdoors, and Deltana calls out deck rails along with staircases as what these brackets are for. Finish choice is what decides it: unlacquered brass will darken and patina quickly in weather, while PVD polished brass is the coating that stays put. Whatever you pick, the fastening matters more than the bracket outdoors, since the supplied screws land in whatever framing your posts or wall give you.

The Delaney decorative handrail bracket, DLY-406111, is catalogued as a decorative bracket, which is the scroll-and-profile end of the range for a residential stair or a period interior. The Deltana HRC253 is a solid brass bracket at a stated 3 inch projection with a 2-1/4 inch base, catalogued for commercial use and offered in ten finishes - oil rubbed bronze, brushed nickel, antique nickel, paint black, polished chrome, brushed chrome, polished brass, unlacquered brass, antique brass and PVD polished brass. For a property manager standardizing across a building, the finish range is usually what decides it, because it lets the stair brackets match knobs, hinges and door trim already on the floor. For a one-off feature stair where the bracket is meant to be seen as ornament, the decorative Delaney is the different intent.
