Deltana PDR48 Panic Device Rim 48"

The strike ships with the PDR48. It is a rim device, so the strike mounts on the frame stop (or on a mullion if you are running a pair), and the latch engages it at the door edge. No separate strike purchase to complete a single-door install.

Yes. The PDR48 has Allen-key dogging, so you depress the push bar and set it with a hex key to hold the latch retracted for daytime push/pull traffic, then release it at close. Note that dogging is a feature of non-fire-rated devices; a fire door needs a fire rated device without mechanical dogging, such as the Marks USA M9900F 48 inch fire rated rim device.

No. A rim device like the Deltana PDR48 latches into a strike on the frame stop, so on a pair it needs a mullion (removable or fixed) to latch into. If you cannot use a mullion, go to a vertical rod device that latches at the head and sill instead, for example the Hager 4501 Series concealed vertical rod device.

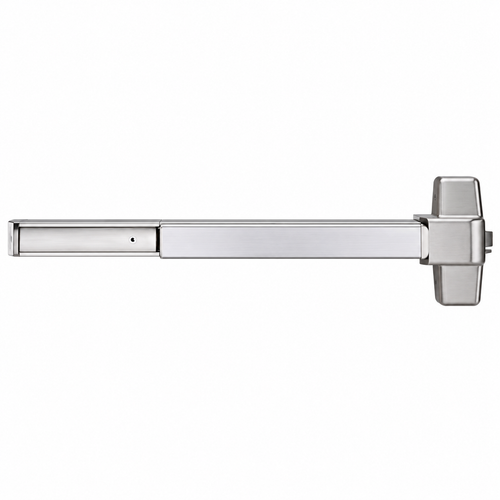

The Deltana PDR48 is a 48 inch rim panic device that is UL Listed, but for a labeled opening look at the Marks USA M9900F 48 inch rim panic exit device, which is fire rated and exit only. The Dexter ED1000-R-F-EO is another fire rated Grade 1 rim device option. On a 3 foot leaf, the Marks USA M9900F 36 inch and the Orca Hardware OED85 36 inch are both fire rated exit only rim devices.

For 48 inch rim devices with a stated Grade 1 rating, the Corbin Russwin ED3200 is a 48 inch crossbar rim device for 1-3/4 inch doors, and the DORMA 9300 is a 48 inch wide stile rim device rated Grade 1 heavy duty for 1-3/4 inch to 2-1/4 inch doors. Sargent's 2828 and 3828 are Grade 1 reversible wide stile rim devices for 48 inch doors, the 3828 with a standard push bar. The Deltana PDR48 itself is a 48 inch steel rim panic device with the strike included.

The PDR48 is a 48 inch steel rim panic device supplied as a standard push device with strike. Narrow stile aluminum doors are usually handled with a device specifically built for that stile: the Adams Rite 8800 Series 30 inch narrow stile rim device covers 1-3/4 inch to 2-1/4 inch doors, the Adams Rite 8700 and EX88 are narrow stile interlocking rim devices, and the Falcon 19-R and 1590EO are Grade 1 narrow stile rim devices for 1-3/4 inch doors.

The PDR48 is built at a 48 inch length, so on a narrower leaf step to a 36 inch device such as the Dexter ED1000-R-EO-3FT Grade 1 rim device, the TownSteel ED1100 36 inch Grade 1 heavy duty wide stile rim device, the Hager 4701 36 inch standard duty rim device, or the Marks USA M9900 36 inch exit only rim device.

The PDR48 is supplied as a standard 48 inch rim panic device with strike and Allen-key dogging. When the opening needs keyed entry from the outside, choose a device catalogued for trim: the Corbin Russwin ED5200 wide stile and ED4200 narrow stile are Grade 1 rim devices listed as exit only plus accepts trim for 1-3/4 inch doors, the Sargent 8504 is a narrow design rim device in night latch function, and the Detex V4003A/03AN is a Grade 1 wide stile rim device offered with night latch trim.

Watch two things. The Detex Advantex 00 Series is a super-heavy-duty dummy exit device with wide stile design - it matches the look of a working device but provides no latching. The Dexter ED1500-EXTRD-SP is a 12 inch extension rod assembly for ED1500 exit devices, a component rather than a device. The Deltana PDR48 is a functioning 48 inch rim panic device shipped with its strike.

No. The PDR48 is a mechanical panic rim device with hex key dogging and no electrical option. For a request to exit or maglock release, look at the SDC MSB550 Series mechanical switch bar, the SDC PSB560 pressure sense bar, or the SDC S6136 electrified rim exit device.

The Deltana PDR48 is a 48 inch rim panic device with Allen-key dogging and the strike included. The CRL Jackson 1095 is a 48 inch crossbar rim panic device, wide stile, exit only, so the actuator is a horizontal bar rather than a pad; CRL also offers the 1095P with a paddle and the 1295 non-handed push pad version for 1-3/4 inch doors. The Corbin Russwin ED3200 is another 48 inch crossbar style rim device.

The PDR48 uses Allen-key dogging. If you are standardizing on key dogging across a building, Design Hardware's 1000R heavy duty and 2000R standard duty rim devices both use hex key dogging at 33 inches, and the Stanley Security QED200 Series Grade 1 heavy duty narrow stile rim device also uses hex-key dogging.

Both are 48 inch rim exit devices, but they are not the same item. The Deltana PDR48 is a steel rim panic device with Allen-key dogging and the strike included. The Cal-Royal A9820 is a 48 inch exit only rim device catalogued heavy duty at Grade 2, as is the Cal-Royal 5500 48 inch push bar rim device. Confirm the grade your spec calls for before swapping one for the other.

The Deltana PDR48 is a rim device, meaning the latch and strike are surface applied at the head or jamb. Where the specification calls for concealed vertical rod hardware, Hager offers the 4501 Series 36 inch Grade 1 concealed vertical rod device with a wide stile pushpad and the 4601 Series 36 inch Grade 1 concealed vertical rod device in narrow stile.

Steel construction throughout, supplied in an aluminum finish. That is the single finish offered on the PDR48, so if you are standardizing a building on dark bronze or black push bars this one will not match.
