Design Hardware BB5 Standard Weight Ball Bearing Hinge

Design Hardware BB5-HW Heavy Weight Ball Bearing Hinge

(No reviews yet) Write a Review

Model: BB5-HW-NRP-4.5X4.5-26D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$40.50
$30.59
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
DESIGN HARDWARE  BB5 HEAVY WEIGHT BALL BEARING HINGES


Specifications:

ANSI: Meets ANSI A 156.2 - Dimensions and tolerances conform to ANSI - A156.7
Gauge of Metal: .129 for 4” x 4”, .134” for 4.5” x 4.5”, .145” for 5” x 4-1/2” sizes
Base Material: Steel (ANSI A8112) or Stainless Steel (Grade 304 standard) (ANSI A5112)
Marine Grade 316 US32D Stainless Steel also available
Design & Templating: 5 Knuckle Design & Templated hole locations for wood or metal doors & frames
Fire Door Use: Approved for most types of fire doors up to 4’ x 10’, 8’ x 10’ pairs - Refer to NFPA80
Swaging: 1/16” Swage standard which provides 1/16” of clearance between leaves
Security NRP: NRP - Non removable pin available upon request for most sizes
Pin & Tip: Equipped with easily seated non-rising pin with button head & plug
Radius Corner: 1/4” and 5/8” Radius Corner available and in stock for 4” x 4” sizes only
Bearings: Each hinge has 2 sets of maintenance free non detachable ball bearings
Electrification: Concealed thru wire and monitoring options available, See electrified section
Fasteners: Each box of 3 hinges contains full set of machine and wood screws
Warranty: Limited Lifetime Warranty



RESOURCES & DOWNLOADS

Template

Manufacturer Resources

Product Specs

Series:
BB5 Series
Features:
Ball Bearing Reduces Friction to Extend Lifetime of Hinge, For Medium Weight Doors of Average Frequency Use, More Durable than Standard Hinges
Product Group:
Door Hinges and Pivots
Product Subgroup:
Full Mortise Hinges
Product Type:
Ball Bearing Hinges
Subcategory:
Residential Hinges
ANSI/BHMA:
ANSI A 156.2, ANSI - A156.7
Duty Level:
Medium Duty
Bearing Type:
Ball Bearing
Commercial/Residential:
Commercial
Knuckles:
5
Department:
Door Hardware

Design Hardware BB5-HW-NRP-4.5X4.5-26D – Frequently Asked Questions

1) Will the Design Hardware BB5-HW ball bearing hinge work on a fire rated door?
The BB5 hinge is approved for most types of fire doors up to 4 x 10 feet, and up to 8 x 10 feet on pairs, per NFPA 80. Dimensions and tolerances conform to ANSI A156.7 and it meets ANSI A156.2. If your opening is larger than those leaf sizes, the hinge is outside what the manufacturer approves for fire door use.
2) What sizes does the Design Hardware BB5 hinge come in, and which one do I need for my door?
Three sizes: 4-1/2 x 4-1/2, 5 x 4-1/2, and 5 x 5 inches. The first number is leaf height, the second is the open width. Go to 5 inch when the door is thicker or heavier, or when trim or a deep frame reverse means a 4-1/2 inch hinge will not let the door swing clear. All three sizes are offered in both 626 satin chrome and 630 satin stainless.
3) Will the Design Hardware BB5 hinge fit my existing hinge mortise on a metal frame?
The BB5 uses templated hole locations for wood or metal doors and frames, and its dimensions and tolerances conform to ANSI A156.7. If your existing hinge is a templated 4-1/2 x 4-1/2 or 5 x 4-1/2 full mortise hinge, the BB5 of the same size drops into that prep. Match the size exactly first, since the prep depth and screw pattern follow the leaf size.
4) Do I need a security hinge for an out-swinging exterior door with a Design Hardware BB5?
An out-swinging door exposes the pin, and the BB5 ships standard with a non-rising pin with button head and plug, which can be driven out from the hinge side. Design Hardware offers NRP (non-removable pin) on most sizes by request. Specify NRP for any opening that swings out to the exterior or into a public corridor.
5) My frame has rounded hinge pockets. Does the Design Hardware BB5 come with radius corners?
Radius corner leaves are stocked in 1/4 inch and 5/8 inch, but only in the 4 x 4 size. In 4-1/2 x 4-1/2, 5 x 4-1/2 and 5 x 5, the BB5 is a square corner hinge. If your existing prep is a radiused 4-1/2 inch pocket, a square corner hinge will not seat without recutting the corners.
6) I need a taller hinge than 4-1/2 inches for a heavier leaf. What should I use instead of the Orca SSB4545?
The Orca SSB4545 is built in the 4-1/2 by 4-1/2 square corner size. Where the door calls for a taller or wider leaf, the Design Hardware BB5-HW is offered in 5 by 4-1/2 and 5 by 5 as well as 4-1/2 by 4-1/2, with a metal gauge of .134 inch at 4-1/2 by 4-1/2 and .145 inch at 5 by 4-1/2. It is a 5 knuckle hinge with two sets of maintenance free non detachable ball bearings and templated hole locations for wood or metal doors and frames.
7) For a fire rated opening, is a standard commercial ball bearing hinge like the Orca SSB4545 interchangeable with the Design Hardware BB5-HW?
Not automatically. Both are medium duty ball bearing commercial hinges, but fire door use is a separate qualification from size and bearing type. The Design Hardware BB5-HW is approved for most types of fire doors up to 4 ft by 10 ft, and 8 ft by 10 ft pairs, per NFPA 80, and meets ANSI A156.2 with dimensions and tolerances conforming to ANSI A156.7. On a labeled opening, specify the BB5-HW and confirm the leaf size against the NFPA 80 limits above.
8) Do the Design Hardware BB5 hinges come with screws, or do I have to buy fasteners separately?
Each box of 3 hinges includes a full set of both machine and wood screws, so the same box covers a hollow metal frame and a wood door leaf without a separate fastener order. Hinges are boxed in threes, which is what a standard door height takes.
9) Which finish should I order for a Design Hardware BB5 hinge in a coastal or wash-down building?
Two finishes are offered: 626 satin chrome and 630 satin stainless steel. For salt air or frequent wash-down, take 630 on stainless. The base material is either steel (ANSI A8112) or stainless (Grade 304 standard, ANSI A5112), and Design Hardware also makes a marine grade 316 stainless in US32D for genuinely corrosive exposure.
10) Is a ball bearing hinge worth it over a plain bearing hinge for an office or apartment door?
Ball bearings cut friction at the knuckle, which is what keeps a door hanging square and a closer working correctly over years of cycles. The BB5 carries two sets of maintenance free, non detachable ball bearings per hinge across five knuckles. It is a commercial, medium duty hinge, meant for medium weight doors of average frequency use. For a lobby, stairwell, or entry running constant traffic, look at a heavier duty hinge instead.
11) Can I run an electric strike or card reader wire through a Design Hardware BB5 hinge?

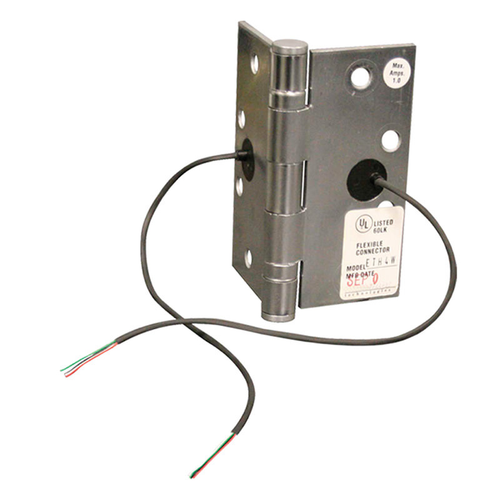

Concealed thru-wire and door position monitoring options are offered on the BB5 line, so the hinge can carry power or a monitoring circuit to an electrified lock or exit device without a surface loop. The standard 626 and 630 hinges in 4-1/2 x 4-1/2, 5 x 4-1/2 and 5 x 5 are not electrified, so the electrified version has to be specified as its own part.
12) The existing hinges on my doors are satin chrome. Will a stainless hinge like the Orca SSB4545 match, or do I need something else?
The Orca SSB4545 is a stainless steel butt hinge. The Design Hardware BB5-HW is offered in both 626 satin chrome and 630 satin stainless steel across its 4-1/2 by 4-1/2, 5 by 4-1/2, and 5 by 5 sizes, so if the rest of the fleet is 626 satin chrome, the BB5-HW carries that finish in the same square corner sizes. Its base material is steel or grade 304 stainless, with marine grade 316 in US32D also available for exterior and coastal openings.
13) How much clearance is there between the leaves on a Design Hardware BB5 hinge when the door is closed?
Standard swaging is 1/16 inch, giving 1/16 inch of clearance between the leaves. That is the gap you plan your door-to-frame clearance around, and it matches the standard commercial swage, so it will not change your gasketing or closer geometry versus the templated hinge you are replacing.
