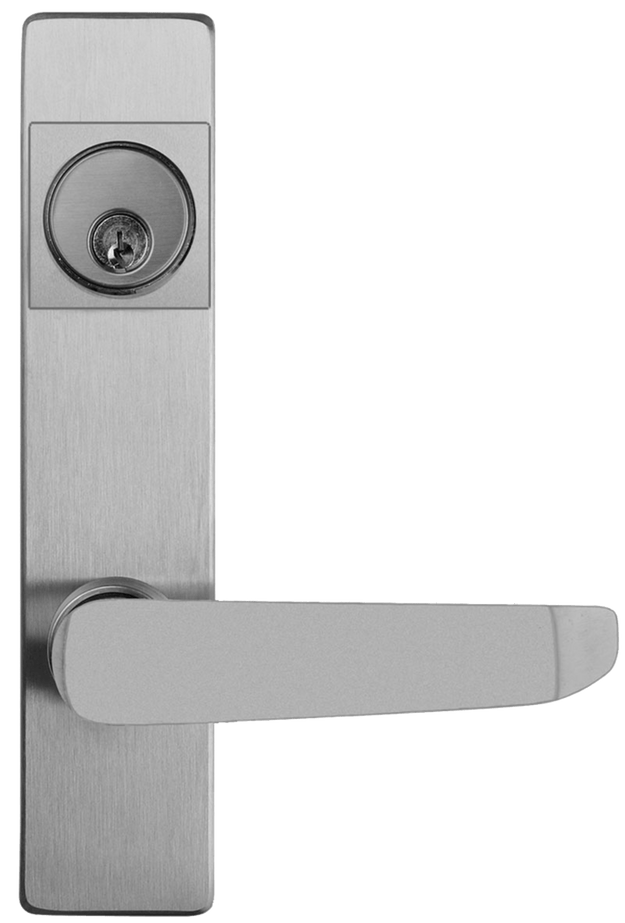

Assorted outside trims provide security for all types of installations. Built to be as durable as the panic devices, these heavy-duty trims will stand up to heavy use and abuse. The versatile design of the trims, combined with the device mounting plate, makes changing functions as simple as replacing the outside trim. This can easily be done without removing the exit device from the door. Detex uses the BHMA functions/descriptions for all trims.
BHMA Functions & Descriptions
02 – Entrance by trim when actuating bar is dogged (dummy trim)
08 – Entrance by lever. Key locks or unlocks lever (classroom trim)
09 – Entrance by lever only when released by key. Key removable only when locked
14 – Entrance by trim when latch bolt is released by knob or lever. Always active, no cylinder
EU – Electric Lock/Unlock – Fail Secure (FSE) or Fail Safe (FSA)
Installation Instructions (08/09/14BN)
Installation Instructions (EU2W)
Narrow Stile Trim Rehanding Video
Wide Stile Lever Trim Rehanding Video
Manufacturer Resources
Product Specs
- Category:
- Exit Devices and Trim
- Series:
- BN Series
- Subcategory:
- Lever Trim
- Product Group:
- Exit Devices and Trim
- Product Subgroup:
- Exit Device Trim
- Product Type:
- Exit Device Trim
- Commercial/Residential:
- Commercial
- Lock Type:
- Mortise
- Handle Type:
- Lever
- Lock Function:
- Classroom
- Product Model:
- 08BN
- Product Function:
- Classroom
