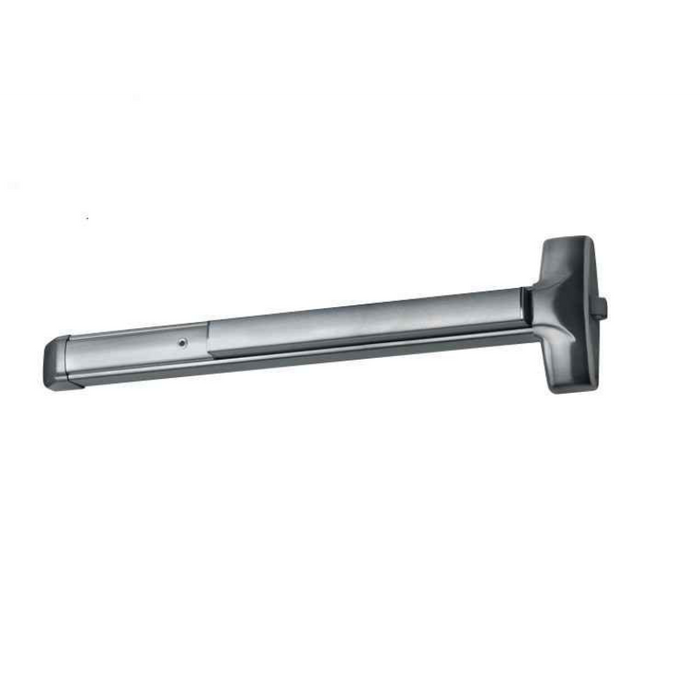

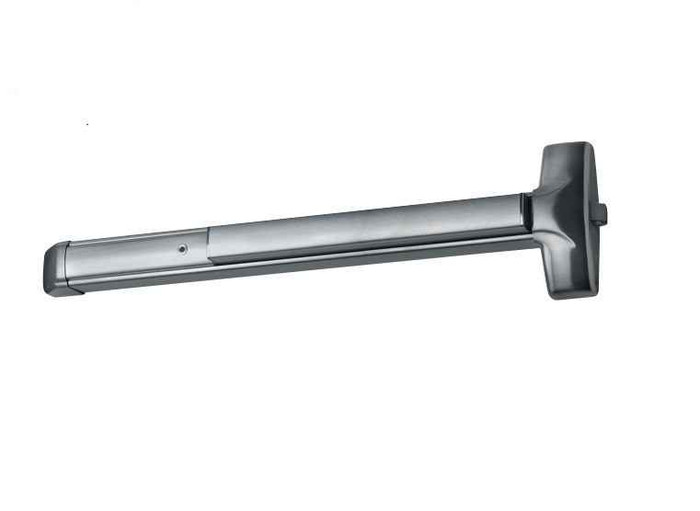

Detex Advantex 10 Series Wide Stile Rim Exit Device with Key Locks/Unlocks Lever

Detex Advantex 10 Series Wide Stile Rim Exit Device with Key Locks/Unlocks Lever

(No reviews yet) Write a Review

Model: 1008D-628-36
$2,503.00
$2,481.06
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,503.00
$2,481.06
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex Advantex 10 Series Wide Stile Rim Exit Device with Key Locks/Unlocks Lever

Super-Heavy-Duty Panic and Fire Exit Hardware Solution

The Detex Advantex 10 Series rim exit device delivers super-heavy-duty panic and fire exit hardware engineered for demanding commercial applications. This Grade 1 wide stile rim exit device features a patented mounting plate and strike locator system for precise installation, tested beyond 1,000,000 cycles for exceptional durability. The stainless steel deadlocking Pullman-type latch bolt and PVD-finished surfaces over stainless steel provide long-lasting performance in high-use, high-abuse environments.

Professional Features & Benefits

  • Super-Heavy-Duty Durability: Tested beyond 1,000,000 cycles - twice the cycling required for Grade 1 UL testing for exceptional reliability in high-traffic applications.
  • Wide Stile Design: Engineered for doors requiring wide stile configuration with field-sizeable capability for versatile installation options.
  • Patented Installation System: Mounting plate and strike locator system replaces paper templates for the easiest and most accurate installation of panic hardware available.
  • Premium Construction: All exposed surfaces finished over stainless steel with environmentally-friendly PVD finishing process for superior durability and appearance.
  • Stainless Steel Latch: Non-handed stainless steel deadlocking Pullman-type latch bolt provides reliable latching performance and security.
  • Flexible Operation: Key locks/unlocks lever function with 1/8 turn hex or cylinder dogging options for operational versatility.
  • Heavy-Duty Protection: Angled end cap design deflects damage away from device in high-abuse environments.
  • Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Grade: Grade 1
  • Product Category: Exit Devices and Trim
  • Product Function: Key Locks/Unlocks Lever
  • Product Group: Exit Devices and Trim
  • Product Model: 1008D
  • Product Subgroup: Exit Devices - Rim
  • Product Type: Exit Devices - Rim
  • Series: 10 Series
  • Stile: Wide
  • Stile Type: Wide Stile
  • Subcategory: Advantex Series
  • Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
  • Wood Door Compatible: No

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex exit devices deliver professional-grade reliability with stainless steel construction and PVD finishing rated for over 1,000,000 life cycles. The 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty provides comprehensive coverage for demanding commercial applications. Engineered for high-use, high-abuse environments where dependable panic hardware performance is essential.



Resources

Installation Instructions
Parts List
Door Templates
Maintenance Manual
Installation Video
Specifications

Product Specs

Series:
10 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Subcategory:
Advantex Series
Commercial/Residential:
Commercial
Warranty:
10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
Grade:
Grade 1
Stile:
Wide
Stile Type:
Wide Stile
Wood Door Compatible:
No
Product Model:
1008D
Product Function:
Key Locks/Unlocks Lever
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex 1008D-628-36 – Frequently Asked Questions

1) What does the key locks/unlocks lever function do on the Detex 1008D?
The 1008D is a keyed lever function: turning the key on the outside trim locks or unlocks the lever, so once unlocked the lever stays free for pull-side entry until you key it back. Push side is always free egress. If all you need is exit only with no outside entry, a device like the Corbin Russwin ED2200 or Von Duprin 22 is the simpler spec.
2) Is the Detex Advantex 1008D available fire rated?
Fire rated is one of four rating choices on the 1008D, along with hurricane rated, hurricane and fire rated combined, and non-rated. Pick fire rated for a labeled opening, and note that fire rated devices cannot be dogged open, so specify less/no dogging on those. The hurricane and fire rated combination is the one to use on a coastal labeled exit.
3) What electrified options can I get on the Detex Advantex 1008D?
Five choices on the electrified axis: none, delayed egress, electric dogging, hardwired electric alarm, and request to exit (signal) switch. Delayed egress suits a controlled perimeter exit in retail or healthcare; RX gives your access control panel a signal when the bar is pushed; electric dogging lets you unlock and relock the pushbar on a time schedule instead of sending someone around with a hex key.
4) Can a rim exit device like the Detex 1008D be used on a pair of doors?
A rim device latches into a strike on the frame or stop, so on a pair it needs a removable mullion between the leaves to give it something to latch into. Without a mullion you want vertical rod hardware instead, such as the Hager 4501 Series concealed vertical rod device with a wide stile pushpad.
5) Is there a hurricane rated exit device option for a coastal building?
Yes. The Advantex 1008D can be ordered hurricane rated, or hurricane and fire rated together for a labeled coastal exit. That combination is unusual among rim devices and is the reason the 10 Series gets specified on Gulf and Atlantic coast schools and municipal buildings.
6) The door has a narrow aluminum stile - what rim exit device should I use instead of the Detex 1008D?
The 1008D is built for wide stile doors, so a narrow aluminum stile needs a narrow stile rim device instead. Narrow stile options include the Adams Rite 8800 Series 30 inch, a Grade 1 narrow stile rim device for 1-3/4 inch to 2-1/4 inch doors, the Adams Rite 8700 Series 30 inch and 3700 Series 30 inch, the Corbin Russwin ED4200 36 inch Grade 1 narrow stile, the Falcon 19-R 36 inch Grade 1 narrow stile exit only, and the TownSteel ED3700 36 inch Grade 1 narrow stile. If the opening is also fire rated, the Adams Rite 3700 Series 30 inch is the fire rated narrow stile choice of that group.
7) What is the closest Grade 1 wide stile rim exit device to the Detex 1008D from another manufacturer?
The Detex 1008D is a Grade 1 wide stile rim exit device in the Advantex 10 Series. The nearest cross-brand equivalents in wide stile Grade 1 rim form are the Von Duprin 22-3FT, a 36 inch non-handed wide stile pushpad rim device for 1-3/4 inch doors, the Corbin Russwin ED5200 in 36 inch wide stile, the DORMA 8300 Series wide stile panic rim device, and the TownSteel ED1100 36 inch heavy duty wide stile rim device. All four are wide stile rim devices carrying a Grade 1 rating, so they suit the same hollow metal openings; the 1008D differs in that it is ordered with a key locks/unlocks lever function and in hex, cylinder, or less dogging.
8) Is an SDC pressure sense bar or switch bar a substitute for the Detex 1008D?
No, they solve a different problem. The 1008D is a mechanical Grade 1 rim exit device with a stainless steel deadlocking Pullman latch that latches the door itself, and it can be ordered with electrified options such as delayed egress, electric dogging, request to exit signal switch, or a hardwired electric alarm. The SDC MSB550 Series 36 inch is a mechanical switch bar that releases an electromagnetic lock, and the SDC SureExit PSB560 Series 36 inch is a pressure sense bar with tri-failsafe technology - both are touch bars that signal a separate locking device rather than rim latches. If the opening needs its own latch, the 1008D is the rim device; the SDC bars suit doors held by a mag lock.
9) The opening is fire rated - which rim exit devices besides the Detex 1008D carry a fire rating?
The Detex 1008D can be ordered in fire rated, hurricane rated, hurricane and fire rated, or non-rated configurations, so it covers a labeled opening directly. Other fire rated rim devices include the Dexter ED1000 Series Grade 1 fire rated, the Adams Rite 3700 Series 30 inch Grade 1 fire rated narrow stile, the Sargent 12-8810-LTRIM Grade 1 fire rated wide stile with RX and MELR, the Marks USA M9900F in 36 inch and 48 inch, the Arrow FS1250 32 inch, and the Orca OED85 Series 36 inch. Of that group the 1008D is the one that also offers hurricane rated builds.
10) Which strike should I order with the Detex Advantex 10 Series rim device, 98 or 99?
Two strikes are offered: the 99 surface strike, which mounts on the face of the stop and is the easier retrofit on an existing frame, and the 98 semi-mortise strike, which recesses partly into the frame for a cleaner look and less projection. On a replacement job the 99 usually reuses more of what is there; on new frames the 98 is the tidier prep.
11) What dogging options come on the Detex 1008D exit device?
Three: 1/8 turn hex dogging, cylinder dogging, and less/no dogging. Hex is the standard maintenance choice for holding the pushbar depressed during business hours. Cylinder dogging keys the same function so staff do not need an Allen wrench. Less dogging is required on fire rated openings.
12) Is the Detex Advantex 1008D Grade 1, and how durable is it?
Grade 1, and Detex states the Advantex 10 Series is tested beyond 1,000,000 cycles, twice the cycling required for Grade 1 UL testing. Exposed surfaces are PVD finished over stainless steel, which is why it holds up in school corridors, hospitals, and warehouse traffic.
13) What finishes does the Detex Advantex 10 Series rim device come in for matching existing doors?
Ten finishes: 605 polished brass, 606 brushed brass, 611 polished bronze, 612 brushed bronze, 613 oil rubbed bronze, 628 brushed aluminum, 629 polished stainless, 630 brushed stainless, 693 black painted, and 695 dark bronze painted. For a building already standardized on satin chrome look hardware, 630 brushed stainless is the usual match; 628 pairs with clear anodized aluminum storefront.
14) What is a comparable wide stile rim exit device to the Detex Advantex 1008D?
Among wide stile Grade 1 rim devices, the Von Duprin 22 Series (36 inch, non-handed, 1-3/4 inch door), the Corbin Russwin ED5200, and the TownSteel ED9700 are the closest in type. Those are listed as exit only or exit only with trim, so if you specifically need the key locks/unlocks lever behavior the Detex 1008D is the one that carries that function outright.
15) I do not need outside key control on the lever - is there a simpler rim device than the Detex 1008D?
Yes. The 1008D is ordered with a key locks/unlocks lever function, which is only worth paying for when the outside trim has to be locked and unlocked by key. For a push-to-exit-only opening with no outside trim, exit only rim devices cover the same duty: the Corbin Russwin ED2200 36 inch Grade 1 wide stile exit only, the Sargent 2828 Grade 1 reversible wide stile exit only, the Imperial USA ED-501 36 inch Grade 1 wide stile exit only, and the Marks USA M9900 36 inch exit only. All are rim devices for the same door face, just without the keyed lever trim.
16) What is the difference between the Detex 1008D and a crossbar rim exit device?
The 1008D is a push pad style rim device in the Advantex 10 Series with an angled end cap. Crossbar rim devices use a horizontal bar across the door face instead: the Corbin Russwin ED3200, a Grade 1 48 inch wide stile crossbar rim device for 1-3/4 inch doors, and the CRL Jackson 1095 Series 48 inch crossbar rim panic device, which is exit only. Crossbar devices project further from the door face and present a different look, while the 1008D keeps the actuator within the pad housing. Both latch the door at the strike as rim devices.
17) How does the Detex 1008D compare with a Grade 2 rim exit device like the Cal-Royal 5000?
The Detex 1008D is a Grade 1 commercial rim device tested beyond 1,000,000 cycles, which is twice the cycling required for Grade 1 UL testing, with PVD finishes over stainless steel. The Cal-Royal 5000 is a 36 inch wide rim exit device with a touch bar and a Grade 2 chassis, and the Cal-Royal 5500 is a 48 inch push bar rim device also rated Grade 2; both are described as heavy duty. For a high-traffic or high-abuse entrance where the specification calls for Grade 1, the 1008D meets that grade; the Cal-Royal devices sit at Grade 2.
18) I need a 48 inch device - which alternatives to the Detex 1008D come that long?
The Detex 1008D is offered in 36 inch and 48 inch lengths, so it covers a wide leaf directly. Other rim devices in 48 inch include the Corbin Russwin ED3200 Grade 1 wide stile crossbar, the CRL Jackson 1095 Series crossbar, the DORMA 9300 Series wide stile exit only for 1-3/4 inch to 2-1/4 inch doors, the Cal-Royal 5500 push bar, the Cal-Royal A9820, the Marks USA M9900F fire rated, and the Dexter ED1000 Series 4FT Grade 1.
19) Is a concealed vertical rod device an alternative to the Detex 1008D?
Only if the opening allows a different latching point. The 1008D is a rim device, latching into a surface 99 strike or semi-mortise 98 strike on the frame stop. The Hager 4501 Series 36 inch is a Grade 1 concealed vertical rod device with a wide stile pushpad and the Hager 4601 Series 36 inch is its narrow stile counterpart; those latch top and bottom through rods inside the door and require a door prepped for concealed rods. A rim device like the 1008D mounts to the door face with no internal rod prep, so the two are not interchangeable on the same prepped door.
20) Which alternative to the Detex 1008D also offers hex key dogging?
The Detex 1008D can be ordered with hex dogging, cylinder dogging, or less dogging. Other rim devices listing hex key dogging are the Design Hardware 1000R 33 inch heavy duty rim device, the Design Hardware 2000R 33 inch standard duty wide stile rim device, and the Stanley Security QED200 Series Grade 1 heavy duty narrow stile rim device. Bear in mind dogging is not permitted on a fire rated opening, so specify less dogging where the door is labeled.
21) Is the Sargent 8504 nightlatch a substitute for the Detex 1008D keyed lever function?
They serve different outside trim behavior. The Detex 1008D uses a key locks/unlocks lever, so a key turn leaves the lever free or locked until it is changed again. The Sargent 8504 is a Grade 1 narrow stile rim device with a night latch function, where the key retracts the latch for momentary entry rather than leaving the trim unlocked. The 8504 is also a narrow stile device, while the 1008D is wide stile, so it is not a drop-in on the same door prep.
22) Why does the Detex 1008D have an angled end cap?
The angled end cap deflects carts, pallet jacks, and shoulder traffic away from the device rather than letting impact land square on it. That plus the stainless construction is why the 10 Series shows up in warehouses, loading areas, and school corridors where standard end caps get torn off.
23) How hard is the Detex Advantex 10 Series to install on an existing door?
Detex ships a patented mounting plate and strike locator system in place of paper templates, which is what keeps the device and strike in line on a retrofit. Door prep templates, installation instructions, a parts list, and a maintenance manual are all published for the 10 Series, so a contractor can confirm the prep before the door is cut.
