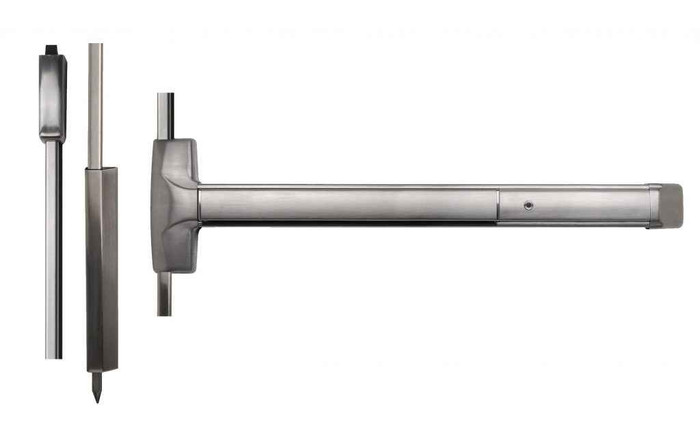

Detex 2702C Advantex 27 Series High Security Surface Vertical Rod Exit Device with Dummy Pull Trim

Detex Advantex 27 Series High Security Surface Vertical Rod Exit Device with Dummy Pull Trim

Professional High Security Exit Device Solution

The Detex Advantex 27 Series High Security Surface Vertical Rod Exit Device delivers super-heavy duty panic and fire exit hardware designed for double doors without a mullion. This Grade 1 exit device features stainless steel relatching top bolt and hardened steel bottom drop bolt construction for maximum security and durability. The patented mounting plate and strike locator system ensures precise installation while the wide stile design accommodates various door configurations.

Professional Features & Benefits

• Heavy-Duty Security Construction: Oversized, heavy duty relatching top and bottom bolts provide enhanced security for high-risk applications.
• Stainless Steel Relatching Top Bolt: Corrosion-resistant stainless steel construction ensures reliable operation and long-term durability.
• Hardened Steel Bottom Drop Bolt: Heavy-duty hardened steel bottom bolt with optional dust proof strike for maximum security retention.
• Patented Installation System: Mounting plate and strike locator system replaces paper templates for the most accurate installation available.
• Field Reversible Design: Handed but field reversible configuration allows adaptation to various door applications without ordering specific hand versions.
• Wide Stile Compatibility: Wide stile design accommodates doors with larger stile dimensions for versatile installation options.
• PVD Finish Process: All exposed surfaces finished over stainless steel with environmentally friendly PVD coating for superior durability.
• Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

• Commercial/Residential: Commercial
• Grade: Grade 1
• Product Category: Exit Devices and Trim
• Product Function: Dummy Pull Trim
• Product Group: Exit Devices and Trim
• Product Model: 2702C
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Vertical Rod
• Series: 27 Series
• Stile: Wide
• Stile Type: Wide Stile
• Subcategory: Advantex Series
• Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Detex Quality?

Detex Advantex 27 Series exit devices deliver professional-grade reliability with stainless steel and hardened steel construction rated for super-heavy duty applications. The 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty provides comprehensive coverage for demanding commercial installations. Engineered for demanding commercial applications where dependable performance and enhanced security are essential.
