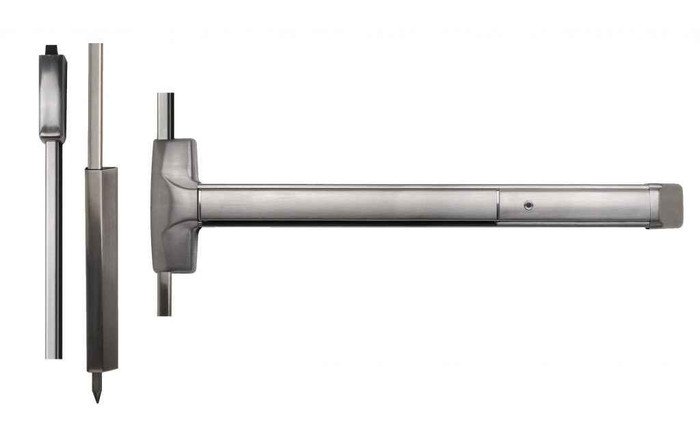

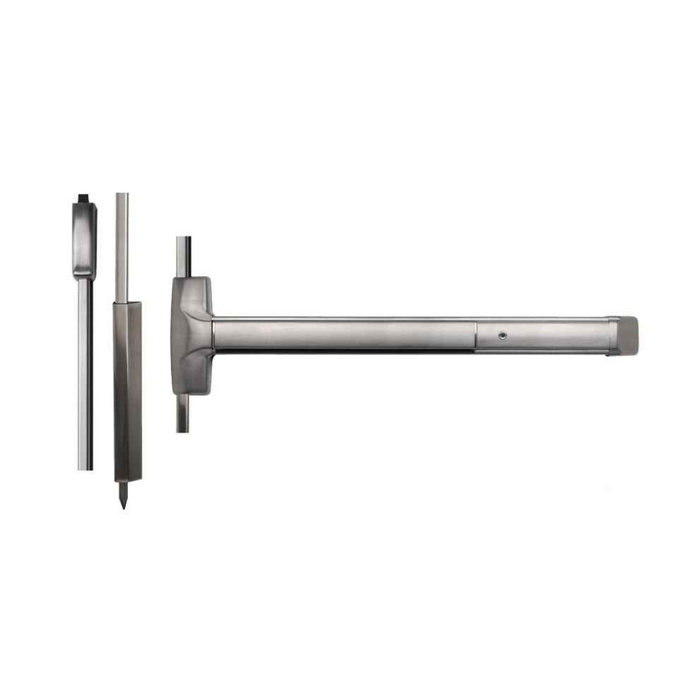

Detex 2714D Advantex 27 Series High Security Surface Vertical Rod Exit Device with Lever Always Active

Detex Advantex 27 Series High Security Surface Vertical Rod Exit Device with Lever Always Active

Professional High Security Exit Device Solution

The Detex Advantex 27 Series High Security Surface Vertical Rod Exit Device delivers super-heavy duty panic and fire exit hardware designed for double doors without a mullion. This Grade 1 commercial exit device features stainless steel relatching top bolt and hardened steel bottom drop bolt construction for maximum security and durability. The patented mounting plate and strike locator system ensures precise installation while the wide stile design accommodates various door configurations.

Professional Features & Benefits

• High Security Construction: Oversized, heavy duty relatching top and bottom bolts provide enhanced security for demanding commercial applications.
• Stainless Steel Relatching Top Bolt: Corrosion-resistant stainless steel construction ensures reliable operation and long-term durability.
• Hardened Steel Bottom Drop Bolt: Heavy-duty bottom bolt with optional dust proof strike for maximum security and weather protection.
• Patented Installation System: Mounting plate and strike locator system replaces paper templates for the easiest and most accurate installation available.
• Field Reversible Design: Handed device can be field reversed for flexible installation requirements and inventory management.
• Wide Stile Compatibility: Designed for wide stile applications providing versatile door compatibility options.
• PVD Finish Process: All exposed surfaces finished over stainless steel with environmentally friendly PVD coating for superior durability.
• Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

• Commercial/Residential: Commercial
• Grade: Grade 1
• Product Category: Exit Devices and Trim
• Product Function: Lever Always Active
• Product Group: Exit Devices and Trim
• Product Model: 2714D
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Vertical Rod
• Series: 27 Series
• Stile: Wide
• Stile Type: Wide Stile
• Subcategory: Advantex Series
• Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use the patented mounting plate and strike locator system to mark mounting hole locations accurately on door and frame surfaces, eliminating the need for paper templates.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions with minimal door preparation required.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion, ensuring proper engagement of both top and bottom bolts.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• High Security Commercial Buildings
• Educational Facilities with Security Requirements
• Healthcare Institutions
• Government and Municipal Buildings
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Emergency Exit Compliance Applications

Why Choose Detex Quality?

Detex Advantex 27 Series exit devices deliver professional-grade reliability with stainless steel and hardened steel construction rated for super-heavy duty applications. The 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty provides comprehensive coverage for demanding commercial environments. Engineered for high-use, high-abuse environments where dependable performance and enhanced security are essential.
