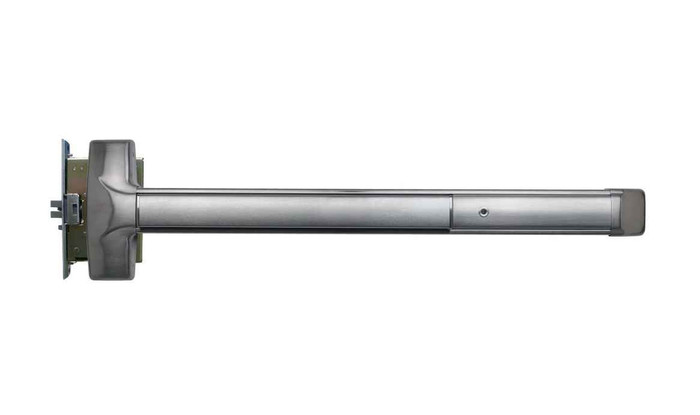

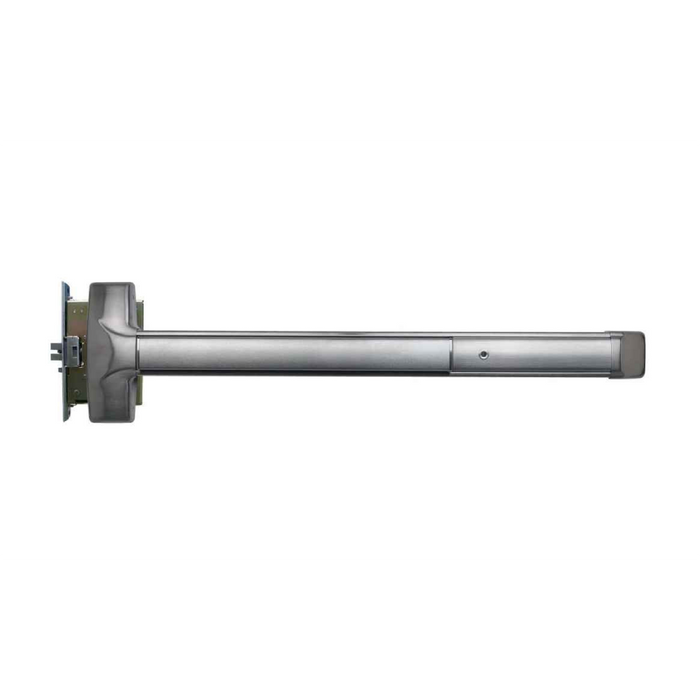

Detex Advantex 30 Series Mortise Lock Exit Device with Dummy Lever Trim - Grade 1 Commercial

Detex Advantex 30 Series Mortise Lock Exit Device with Dummy Lever Trim - Grade 1 Commercial

(No reviews yet) Write a Review

Model: 3002DM-628-90-36
$3,168.00
$3,140.24
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,168.00
$3,140.24
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex Advantex 30 Series Mortise Lock Exit Device with Dummy Lever Trim - Grade 1 Commercial

Super-Heavy-Duty Panic and Fire Exit Hardware Solution

The Detex Advantex 30 Series mortise lock exit device delivers super-heavy-duty panic and fire exit hardware performance for single and double door applications. This Grade 1 commercial exit device features a patented mounting plate and strike locator system for precise installation, 3/4" projection stainless steel latch bolt, and PVD-finished surfaces over stainless steel construction. Designed for high-use, high-abuse environments with wide stile compatibility and field-sizeable, non-handed operation.

Professional Features & Benefits

  • Grade 1 Commercial Rating: BHMA Grade 1 certification ensures maximum durability and performance for demanding commercial applications.
  • Heavy-Duty Construction: Tough and durable design engineered for years of trouble-free service in high-use, high-abuse environments.
  • Precision Latch System: 3/4" projection stainless steel anti-friction, deadlocking latch bolt provides secure and reliable operation.
  • Advanced Surface Protection: All exposed surfaces finished over stainless steel with environmentally-friendly PVD coating for superior durability.
  • Patented Installation System: Mounting plate and strike locator system replaces paper templates for the easiest and most accurate installation available.
  • Flexible Configuration: Non-handed, field-sizeable design with 1/8 turn dogging and easy retrofit capability to other manufacturers.
  • Wide Stile Compatibility: Designed for wide stile door applications with minimal door preparation requirements.
  • Comprehensive Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Grade: Grade 1
  • Product Category: Exit Devices and Trim
  • Product Function: Dummy Lever Trim
  • Product Group: Exit Devices and Trim
  • Product Model: 3002DM
  • Product Subgroup: Exit Devices - Mortise
  • Product Type: Exit Devices - Mortise
  • Series: 30 Series
  • Stile: Wide
  • Stile Type: Wide Stile
  • Subcategory: Advantex Series
  • Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
  • Wood Door Compatible: No

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex Advantex 30 Series exit devices deliver professional-grade reliability with stainless steel construction and PVD finishing rated for high-use, high-abuse commercial environments. The patented mounting plate and strike locator system ensures precise installation while the heavy-duty angled end cap deflects damage away from the device. Backed by a comprehensive 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty, this exit device is engineered for demanding commercial applications where dependable performance is essential.



Resources

Installation Instructions
Catalog
Door Templates

Product Specs

Series:
30 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Mortise
Product Type:
Exit Devices - Mortise
Subcategory:
Advantex Series
Commercial/Residential:
Commercial
Warranty:
10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
Grade:
Grade 1
Stile:
Wide
Stile Type:
Wide Stile
Wood Door Compatible:
No
Product Model:
3002DM
Product Function:
Dummy Lever Trim
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex 3002DM-628-90-36 – Frequently Asked Questions

1) Do I have to specify handing on the Detex Advantex 30 Series mortise device?
Yes, handing is a required choice: right hand reverse or left hand reverse. Those are the two handings an outswinging exit door takes. The chassis itself is non-handed and field sizeable, but because this is a mortise lock version the lock case goes into the door edge, so order it to match the opening.
2) Will the 3002DM latch into the strike I already have, or do I need to order a strike with it?
The strike is part of the order, and there are four choices: 90 non-handed curved lip, 91 ANSI flat lip, 92 double door short open back, and 93 double door long open back. Pick 90 or 91 for a single door depending on whether the frame is prepped to ANSI, and 92 or 93 for a pair. The latch is a 3/4 inch projection stainless steel anti-friction deadlocking bolt, so the strike lip has to suit that throw.
3) Do I need the fire rated version of the Detex 30 Series, and what changes?
Rating is an order option: fire rated or non-rated. Fire rated is what a labeled door assembly requires, and on a fire rated device the dogging has to stay out, so that version is ordered less/no dogging. If the opening is a non-labeled egress door and you want to hold the pad down during business hours, take the non-rated version with hex or cylinder dogging.
4) Can I get the Detex Advantex 3002DM with an alarm or delayed egress?
Yes. Electrified options are None, EA hardwired electric alarm, EX request to exit signal switch, EE delayed egress, and EB electric alarm with battery. EB is the choice where you cannot run power to the door, EA where you can. EX just sends a signal to the access control panel when someone pushes the pad. EE is the 15 second delayed egress version for controlled openings.
5) Can the Detex 30 Series replace another brand's mortise exit device without redoing the door?
The Advantex 30 Series is built to retrofit to other manufacturers' devices with minimal door preparation, and the patented mounting plate and strike locator system replaces paper templates so the new holes land accurately. It is a like-for-like swap for another wide stile mortise device on a metal door, for example a Von Duprin 8875 or 9875 wide stile mortise device, both of which are also wide stile and not wood door rated. Pull the old device first and confirm the existing mortise pocket and edge prep before you commit.
6) I need a mortise exit device on a wood door - can I use the Detex Advantex 3002DM?
No. The Detex Advantex 3002DM is not wood door compatible. For wood doors, the Adams Rite 3300 Series is a fire-rated Grade 1 wide stile mortise exit device for wood and hollow metal doors, and the Adams Rite 8300 Series is the non fire-rated Grade 1 wide stile equivalent for the same door types. Pick the 3300 where the opening is on a fire-rated assembly.
7) I need outside lever entry, not a dummy lever - what replaces the Detex 3002DM?
The Detex Advantex 3002DM carries dummy lever trim, which is pull only with no outside entry. Where the outside lever must operate the latch, the Corbin Russwin ED5600AL is a Grade 1 3 hour fire rated wide stile mortise exit device that accepts passage or classroom lever trim, for 1-3/4 inch doors, with trim ordered separately. For keyed outside entry on a wide stile door, the Sargent 8904 is a Grade 1 wide stile mortise device in night latch function with 24VAC/DC operation.
8) The Detex 3002DM will not fit my narrow stile aluminum door - what mortise exit device should I use instead?
The Detex Advantex 3002DM is built for wide stile doors. For a narrow stile aluminum opening, the Adams Rite 8400 Series is a Grade 1 life-safety narrow stile mortise exit device for aluminum doors. Other narrow stile mortise options are the Von Duprin 5575-3ft crossbar mortise device, Grade 1 and field reversible, and the Sargent 8304 narrow stile mortise device in night latch function. Choose by the outside function you need, since the 8304 is night latch rather than dummy trim.
9) What is the closest wide stile mortise exit device to the Detex Advantex 3002DM from another manufacturer?
The Detex Advantex 3002DM is a Grade 1 wide stile mortise exit device. The closest cross-brand equivalents are the Von Duprin 9875-3FT, a 3 ft smooth case wide stile mortise exit device, Grade 1, non-handed, and the Falcon 25-M-EO, a Grade 1 wide stile mortise exit device in a 36 inch exit only configuration. Both are wide stile mortise devices in Grade 1 like the Detex. The Detex 3002DM is supplied with dummy lever trim, while the Falcon 25-M-EO is exit only with no outside trim, so confirm which outside operation the opening needs.
10) What is the difference between hex dogging and cylinder dogging on this Detex exit device?
Both hold the push pad depressed so the door pushes open freely, and the Advantex uses a 1/8 turn dogging action. Hex dogging is operated with an Allen key, so anyone with the wrench can dog it. Cylinder dogging takes a keyed cylinder instead, which is what schools and hospitals usually specify so only staff with the key can dog the door. Less/no dogging is the choice for fire rated openings.
11) Can the Detex 3002DM be used on a pair of doors?
Yes. The 30 Series mortise device covers single and double door applications, and two of the strike choices are made for pairs: 92 double door short open back and 93 double door long open back. A mortise device latches into the frame or the adjacent leaf at the door edge, so for a pair you are matching the strike to the inactive leaf condition rather than adding vertical rods.
12) Is the Detex Advantex 30 Series a true Grade 1 device for a school or hospital corridor?
BHMA Grade 1, which is the highest commercial cycle and strength grade and what institutional specs normally call for. It is a commercial-only device built for high-use, high-abuse openings, with stainless steel construction and a heavy angled end cap that pushes cart and equipment damage away from the mechanism.
13) Should I use a mortise exit device or a rim device on my opening?
A mortise device like the Advantex 3002DM puts the lock case inside a pocket routed in the door edge and latches into the frame, which gives a clean look and a concealed lock but requires that edge prep and, here, a metal door. A rim device surface mounts with a strike on the frame stop and is far less door prep, which is why it is the usual retrofit when you cannot cut a mortise pocket. For a pair of doors with no mullion, a surface vertical rod device such as the Sargent 1256NB-8710G latches at head and sill instead.
14) I just need exit only with no trim at all. Is the 3002DM the right model?
The 3002DM is the dummy lever trim version, so it includes an outside lever that is fixed and serves as a pull. If you want a bare door outside with no trim, an exit only mortise device is the cleaner order, such as the Falcon 25-M-EO in 36 inch wide stile or the BEST Precision 2301 Series exit only mortise device. If you want a pull but on a different chassis, the Sargent 810 is a dummy pull exit device trim.
15) Is the Sargent 810 dummy pull a substitute for the Detex 3002DM?
No. The Sargent 810 is a Grade 1 dummy exit device trim from the PE80 Series - trim only, with no exit device behind it. The Detex Advantex 3002DM is a complete mortise lock exit device that includes the dummy lever trim. Order the 810 only when the device is already on the door and you are replacing the outside trim.
16) How does the Detex Advantex 3002DM differ from the Von Duprin 8875 crossbar device?
Both are Grade 1 wide stile mortise exit devices that are non-handed and not wood door compatible. The difference is the actuator: the Von Duprin 8875-3FT is a crossbar device at 36 inches for 1-3/4 inch doors, while the Detex Advantex 3002DM is a push pad style device. The Detex is field-sizeable and offered in 36 inch and 48 inch lengths with fire rated and non-rated options, where the 8875 is listed as non fire-rated. If you are matching existing crossbar hardware across a building, the 8875 keeps the look consistent.
17) What wide stile mortise exit device holds up best in a high-abuse opening compared to the Detex 3002DM?
The Detex Advantex 3002DM is a Grade 1 device with stainless steel construction, PVD finishing and an angled end cap that deflects damage away from the device, targeted at high-use, high-abuse environments. A comparable heavy-duty alternative is the Von Duprin 9475/9575 Impact Series, a Grade 1 wide stile mortise lock exit device with a recessed push pad, which is listed as non fire-rated. Where the opening is on a fire-rated assembly, the Detex is offered in a fire rated version.
18) Is the Sargent 1256NB-8710G a replacement for the Detex Advantex 3002DM?
No. The Sargent 1256NB-8710G is an 84 inch fire rated surface mount vertical rod exit device with electric latch retraction, Grade 1, for narrow stile doors. The Detex Advantex 3002DM is a wide stile mortise lock device using a mortise lock body and strike rather than top and bottom rods. They prep the door differently and are not interchangeable; the Detex does offer electrified options including a request to exit switch and delayed egress.
19) Which finish do I order to match the other exit devices in my building?
Ten finishes are available on the Advantex 30 Series: 605 polished brass, 606 brushed brass, 611 polished bronze, 612 brushed bronze, 613 oil rubbed bronze, 628 brushed aluminum, 629 polished stainless steel, 630 brushed stainless steel, 693 black painted, and 695 dark bronze painted. Exposed surfaces are PVD finished over stainless steel, so the plated finishes hold up in high traffic and exterior openings better than paint.
20) Where do I get door prep templates and install instructions for the Detex 3002DM?
Detex publishes both an Advantex 30 Series catalog and the installation instructions as PDFs, and ZenSupply hosts copies of each on the product record. The device also ships with the patented mounting plate and strike locator, which is what you actually lay out the prep from rather than a paper template.
