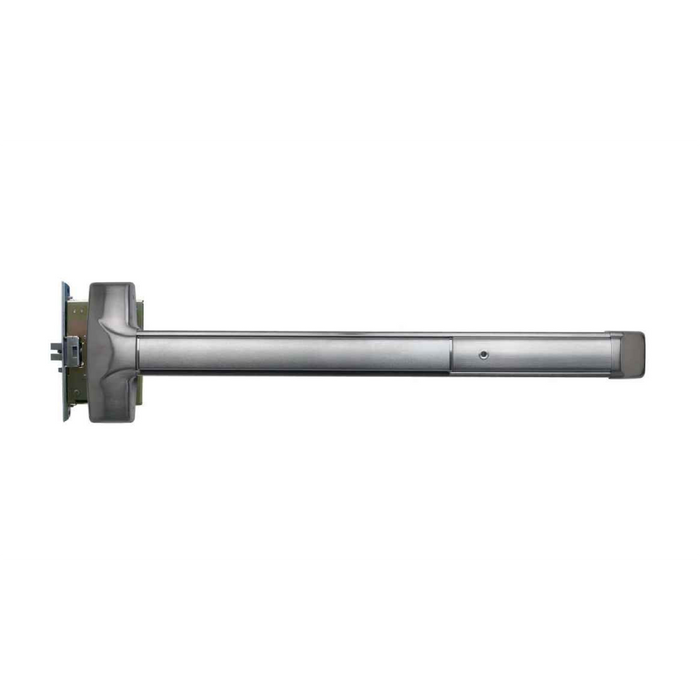

Detex Advantex 30 Series Mortise Lock Exit Device with Electric Lock/Unlock

Detex Advantex 30 Series Mortise Lock Exit Device with Electric Lock/Unlock

(No reviews yet) Write a Review

Model: 30EUxDM-628-90-36
$4,084.00
$4,048.22
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4,084.00
$4,048.22
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex Advantex 30 Series Mortise Lock Exit Device with Electric Lock/Unlock

Super-Heavy-Duty Panic and Fire Exit Hardware Solution

The Detex Advantex 30 Series mortise lock exit device delivers super-heavy-duty panic and fire exit hardware designed for all types of single and double doors. This Grade 1 commercial exit device features a 3/4" projection stainless steel latch bolt with anti-friction, deadlocking operation and electric lock/unlock functionality. All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process, ensuring years of trouble-free service in high-use, high-abuse environments.

Professional Features & Benefits

  • Super-Heavy-Duty Construction: Grade 1 rated design engineered for years of trouble-free service in high-use, high-abuse commercial environments.
  • Advanced Latch System: 3/4" projection stainless steel latch bolt with anti-friction, deadlocking operation for reliable security and smooth operation.
  • Electric Lock/Unlock Function: Integrated electric operation provides remote access control capability for modern security systems.
  • Environmentally-Friendly Finish: All exposed surfaces finished over stainless steel with PVD coating process for superior durability and environmental responsibility.
  • Easy Installation System: Patented mounting plate and strike locator system replaces paper templates for the easiest and most accurate installation available.
  • Retrofit Compatibility: Easy retrofit capability to other manufacturers' devices with minimal door preparation saves time and money.
  • Field Serviceable Design: Outside trims are easily changed or re-keyed without removing device from door, and non-handed, field sizeable construction provides installation flexibility.
  • Comprehensive Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Grade: Grade 1
  • Product Category: Exit Devices and Trim
  • Product Function: Electric Lock/Unlock
  • Product Group: Exit Devices and Trim
  • Product Model: 30EUxDM
  • Product Subgroup: Exit Devices - Mortise
  • Product Type: Exit Devices - Mortise
  • Series: 30 Series
  • Stile: Wide
  • Stile Type: Wide Stile
  • Subcategory: Advantex Series
  • Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
  • Wood Door Compatible: No

Installation & Operation

  1. Verify electrical requirements match available power supply and confirm current capacity before proceeding with electric lock/unlock installation.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the electric lock/unlock application.
  5. Configure operational settings including any configurable options per application requirements.
  6. Restore power and test all functions including normal operation, electric lock/unlock functions, and integration with connected access control systems.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex Advantex 30 Series exit devices deliver professional-grade reliability with super-heavy-duty construction rated for high-use, high-abuse environments. The patented mounting plate and strike locator system ensures accurate installation while the Grade 1 rating and 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty provide long-term confidence. Engineered for demanding commercial applications where dependable panic hardware performance and electric access control integration are essential.



Resources

Installation Instructions
Catalog
Door Templates

Product Specs

Series:
30 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Mortise
Product Type:
Exit Devices - Mortise
Subcategory:
Advantex Series
Commercial/Residential:
Commercial
Warranty:
10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
Grade:
Grade 1
Stile:
Wide
Stile Type:
Wide Stile
Wood Door Compatible:
No
Product Model:
30EUxDM
Product Function:
Electric Lock/Unlock
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex 30EUxDM-628-90-36 – Frequently Asked Questions

1) Do I have to specify handing on the Detex 30EUxDM, and is the device field reversible?
Handing has to be specified as either Right Hand Reverse or Left Hand Reverse when you order. Exit devices always mount on the pull-side-out, push-to-exit face, which is why only the reverse handings exist. The device itself is non-handed, field sizeable construction, so the chassis adapts, but the order still carries a handing selection.
2) Is there a fire rated version of the Detex Advantex 30 Series mortise exit device?
Yes, the 30 Series mortise device is ordered as either Fire Rated or Non-Rated. Pick Fire Rated for a labeled opening, and remember fire rated devices cannot be dogged open, so specify Less/No dogging on those. Hex dogging or cylinder dogging belong on non-rated openings where you want the latch held retracted during business hours.
3) Which strike do I order for a pair of doors with the Detex 30 mortise device?
Four strikes are offered on the 30 Series mortise device: 90 non-handed curved lip, 91 ANSI flat lip, 92 double door short open back, and 93 double door long open back. On a pair, use the 92 or 93 open back strike so the latch engages the inactive leaf; the 90 and 91 are for single doors into a frame jamb.
4) What does the electric lock/unlock function on the Detex 30EUxDM actually do?
The EU function electrically locks or unlocks the outside trim, so an access control system, card reader, or front desk can control entry from the pull side. Egress is always free from the inside through the push pad. It does not electrically retract the latch, so it is not a latch retraction device for automatic operators.
5) Will the Detex 30 mortise device latch into my existing strike prep?
The latch is a 3/4 inch projection stainless steel bolt with anti-friction and deadlocking action, so it needs a strike pocket deep enough for a 3/4 inch throw. Detex states the 30 Series retrofits other manufacturers' devices with minimal door preparation, and the patented mounting plate and strike locator sets the strike position instead of a paper template.
6) What electrified options can I add to the Detex 30EUxDM beyond the lock/unlock function?
Four add-ons are available alongside the base device: EA hardwired electric alarm, EB electric alarm with battery, EX request to exit signal switch, or EE delayed egress. Choose EX if the access control panel needs a shunt or REX signal on egress, EE where code permits a 15 second delay on the opening, and EA or EB where you want a local alarm on unauthorized use. None is also an option if you only need the electric lock/unlock.
7) I need a fire rated mortise exit device - which options besides the Detex 30EUxDM are fire rated?
The Detex Advantex 30EUxDM is available in a fire rated build. Among other mortise devices, the Adams Rite 3300 Series is fire rated and Grade 1 wide stile, for wood and hollow metal doors, and the Corbin Russwin ED5600AL is a Grade 1 3 hour fire rated wide stile mortise device for 1-3/4 inch doors. Note that the Adams Rite 8300 and 8400 life-safety series and the Von Duprin 8875, 9875 and 9475/9575 are all listed non-fire-rated.
8) I have narrow stile aluminum doors - can I use the Detex 30EUxDM?
No. The Detex Advantex 30EUxDM is a wide stile mortise device. For a narrow stile aluminum opening, the Adams Rite 8400 Series is a life-safety narrow stile mortise exit device built for aluminum doors, and the Von Duprin 5575 is a narrow stile crossbar mortise lock device in a 3 ft size, Grade 1 and field reversible. The Sargent 8304 is another narrow stile mortise option, in a night latch function.
9) What is a comparable wide stile mortise exit device to the Detex Advantex 30EUxDM if I need electrified operation?
The Sargent 8904 is a wide stile mortise exit device with 24VAC/DC operation and a night latch function, Grade 1. The difference to weigh is function: the Detex 30EUxDM is an electric lock/unlock device, so the outside trim is locked or unlocked electrically, while the Sargent 8904 runs a nightlatch function. Both are wide stile mortise devices, so the door prep family is the same class of opening.
10) Is the Detex Advantex 30 Series exit device rated for a high traffic school or hospital entrance?
It is a Grade 1 commercial device, described as super heavy duty for high use, high abuse environments, which is the grade specified for school, healthcare, and government openings. Exposed surfaces are finished over stainless steel by PVD, which holds up better than plated brass on a heavily used push pad.
11) Can I rekey or swap the outside trim on the Detex 30EUxDM without pulling the device off the door?
Yes. Outside trims on the 30 Series mortise device are changed or re-keyed with the device still mounted, which is why locksmiths like it on a fleet of doors where keying changes over time.
12) How does the Detex 30 mortise exit device compare to a Von Duprin 9875 or a Falcon 25-M?
All three are Grade 1 wide stile mortise devices. The Detex 30EUxDM carries electric lock/unlock for access control and is offered fire rated or non-rated. The Von Duprin 9875-3FT is a 3 foot smooth case wide stile mortise device, non-handed, listed non fire rated and not wood door compatible. The Falcon 25-M-EO is a 36 inch wide stile exit only device with no trim function. Corbin Russwin ED5600AL is the 3 hour fire rated wide stile option that accepts passage or classroom lever trim. If you need no electrical function, the mechanical devices are the simpler buy.
13) Why choose a mortise exit device like the Detex 30 Series instead of a rim or vertical rod device?
A mortise device puts the lock case inside the door edge, so it latches into the frame jamb with nothing exposed at the head or sill, and it gives a cleaner look on a single door or the active leaf of a pair. It requires a mortise pocket in the door, which is why it is not a drop-in on a door prepped for a rim device. If you need to secure a pair without a mullion, a surface vertical rod device such as the Sargent 1256NB-8710G latches at the head and sill instead.
14) What wide stile mortise exit device should I look at for an abuse-prone opening instead of the Detex 30EUxDM?
The Von Duprin 9475/9575 Impact Series is a Grade 1 wide stile mortise lock exit device with a recessed push pad, which keeps the pad back from cart and traffic strikes. It is listed non-fire-rated, so it will not cover a fire door opening. The Detex Advantex 30EUxDM is offered in both fire rated and non-rated builds and is a Grade 1 wide stile device as well.
15) Will the Sargent 810 or a vertical rod device work in place of the Detex 30EUxDM?
No, neither is a substitute. The Sargent 810 is dummy pull exit device trim, not a device - it has no latching function at all. The Sargent 1256NB-8710G is a narrow stile surface mount vertical rod device with electric latch retraction, an 84 inch fire rated unit that latches top and bottom rather than into a mortise lock in the door edge. The Detex 30EUxDM is a wide stile mortise device, so the door prep and strike are entirely different.
16) What is an exit only mortise alternative if I am replacing a Detex 30EUxDM on a door that no longer needs outside access?
The BEST Precision 2301 Series is a mortise exit device in exit only configuration with heavy wrought construction, and the Falcon 25-M-EO is an exit only wide stile mortise device in 36 inch for 1-3/4 inch doors. Exit only means no outside trim and no keyed or electric entry, where the Detex Advantex 30EUxDM is built around electric lock/unlock of the outside trim.
17) Can I match the Detex 30 Series exit device to existing hardware finishes in my building?
Ten finishes are offered: 605 polished brass, 606 brushed brass, 611 polished bronze, 612 brushed bronze, 613 oil rubbed bronze, 628 brushed aluminum, 629 polished stainless, 630 brushed stainless, 693 black painted and 695 dark bronze painted. 630 and 628 are the usual matches for aluminum and stainless storefront openings, 695 for dark bronze anodized frames.
18) Where do I get the door prep dimensions for the Detex Advantex 30 Series?
Detex publishes the 30 Series catalog and the installation instructions as PDFs, and the strike locator and mounting plate supplied with the device set the prep positions in place of a paper template. Pull the installation instruction sheet for the mortise pocket and wiring routing before you cut the door.
