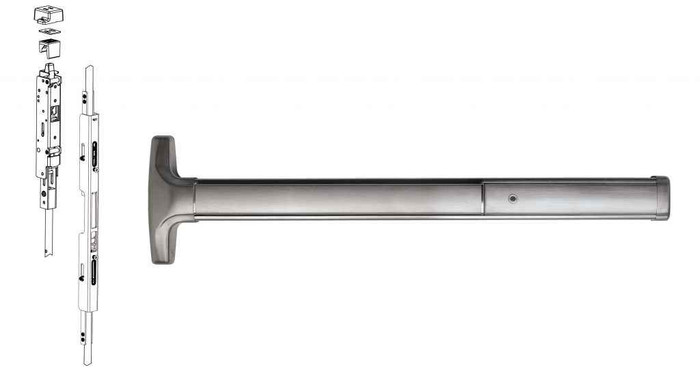

Detex Advantex 62/63 Series Concealed Vertical Rod Exit Device with Key Locks/Unlocks Lever - Grade 1 Narrow Stile

Detex Advantex 62/63 Series Concealed Vertical Rod Exit Device with Key Locks/Unlocks Lever - Grade 1 Narrow Stile

(No reviews yet) Write a Review

Model: 6208DNV-628-36x96
$3,851.00
$3,830.62
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,851.00
$3,830.62
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex Advantex 62/63 Series Concealed Vertical Rod Exit Device with Key Locks/Unlocks Lever - Grade 1 Narrow Stile

Super-Heavy-Duty Concealed Vertical Rod Exit Hardware for Narrow Stile Hollow Metal Doors

The Detex Advantex 62/63 Series concealed vertical rod exit device delivers Grade 1 super-heavy-duty panic and fire exit hardware specifically engineered for narrow stile hollow metal doors without a mullion. This professional-grade exit device features a patented mounting plate system that ensures the easiest and most accurate installation of panic hardware available, with field-reversible handing and field-sizeable design for maximum installation flexibility.

Professional Features & Benefits

  • Grade 1 Heavy-Duty Construction: Super-heavy-duty design engineered for years of trouble-free service in high-use, high-abuse commercial environments.
  • Patented Deadlocking System: Advanced deadlocking of top (62 and 63 Series) and bottom bolt (62 Series) assemblies provides superior security and consistent operation.
  • 6-Position Multi-Step Action: Top latch features 6-position multi-step action that keeps top and bottom bolts retracted until door closes, providing more consistent re-latching and enhanced security.
  • Fully Adjustable Top Strike: Top strike adjusts both vertically and accommodates varying weather strip thicknesses while securing the door and re-engaging the latchbolts.
  • Narrow Stile Compatibility: Specifically designed for narrow stile hollow metal doors with minimal door preparation requirements to save installation time and costs.
  • Field-Reversible Design: Handed design with field-reversible capability and field-sizeable construction allows adaptation to various door configurations without device removal.
  • Easy Maintenance Access: Outside trims are easily changed or rekeyed without removing the device from the door (except for 03R model).
  • Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Grade: Grade 1
  • Product Category: Exit Devices and Trim
  • Product Function: Key Locks/Unlocks Lever
  • Product Group: Exit Devices and Trim
  • Product Model: 6208DNV/6308DNV
  • Product Subgroup: Exit Devices - Vertical Rod
  • Product Type: Exit Devices - Vertical Rod
  • Series: 62/63 Series
  • Stile: Narrow (For Hollow Metal Doors)
  • Stile Type: Narrow Stile
  • Subcategory: Advantex Series
  • Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex Advantex Series exit devices deliver professional-grade reliability with super-heavy-duty construction rated for demanding high-use, high-abuse commercial environments. The patented mounting plate system and deadlocking technology ensure consistent performance and security. Backed by a comprehensive 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty, this Grade 1 exit device is engineered for demanding commercial applications where dependable performance and long-term durability are essential.



Resources

Installation Instructions
Catalog Page
Door Templates

Product Specs

Subcategory:
Advantex Series
Series:
62/63 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Vertical Rod
Product Type:
Exit Devices - Vertical Rod
Commercial/Residential:
Commercial
Warranty:
10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
Grade:
Grade 1
Stile:
Narrow (For Hollow Metal Doors)
Stile Type:
Narrow Stile
Product Model:
6208DNV/6308DNV
Product Function:
Key Locks/Unlocks Lever
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex 6208DNV-628-36x96 – Frequently Asked Questions

1) Will the Detex Advantex 6208DNV fit a narrow stile aluminum storefront door?
No. The Advantex 62/63 Series concealed vertical rod device is built for narrow stile hollow metal doors, not aluminum storefront. The stile spec reads narrow (for hollow metal doors), and the concealed rods run inside the door, so the door has to be a hollow metal leaf prepped per the Detex template. For a wide stile application you would be looking at something like the Von Duprin 8827 surface vertical rod instead.
2) Can this Detex exit device be used on a pair of doors without a mullion?
Yes. That is the reason to pick a vertical rod device. The Advantex 62/63 latches into the head and, on the top and bottom rod version, into the threshold, so a pair of narrow stile hollow metal doors can be secured with no center mullion. A rim device on the same pair would need a mullion between the leaves.
3) Should I order the top rod only or the top and bottom rod version of the Advantex 62/63?
Both are offered. Top rod only (the 63 Series) eliminates the bottom bolt and the threshold strike, which is what most people want where floor debris, carpet, or an uneven slab fouls a bottom bolt. Top and bottom (the 62 Series) gives you deadlocking at both the head and the sill, so it is the more secure choice on an exterior pair. Deadlocking of the top bolt is patented on both 62 and 63; bottom bolt deadlocking applies to the 62.
4) Do I have to specify handing on the Detex 6208DNV, and can it be reversed in the field?
Handing is a required selection, right hand reverse or left hand reverse, since an exit device always swings out. The device itself is handed but field-reversible, so if the wrong hand shows up on site it can be corrected without a new order. It is also field-sizeable, so one device covers a range of door widths.
5) Is there a fire rated version of the Detex Advantex 62/63 concealed vertical rod device?
Yes, the Advantex 62/63 is ordered either fire rated or non-rated. Pick fire rated for any labeled opening; note that fire rated exit devices cannot be dogged, so on a labeled door you want the less/no dogging option rather than hex or cylinder dogging.
6) What door heights and device widths does the Detex 62/63 concealed vertical rod cover?
Rod length is ordered by door height, either 96 inch or 120 inch doors, so tall openings are covered without a special order. Device width comes in 36 inch and 48 inch to match the door leaf width.
7) Can I get the Detex Advantex 62/63 with delayed egress or a request-to-exit switch?
Yes. Electrified options on the Advantex 62/63 are EA hardwired electric alarm, EX request to exit signal switch, EE delayed egress, and ED electric dogging, or none for a purely mechanical device. EE delayed egress is the choice where you need to hold the door for a timed period on an alarmed opening; EX simply signals the access control panel that someone pushed the bar; ED lets the device be dogged and undogged from a remote switch or time clock.
8) What is the difference between the Detex 6208DNV/6308DNV and the Von Duprin 8827-3FT vertical rod exit device?
Both are Grade 1 vertical rod exit devices, but they suit different doors. The Detex Advantex 6208DNV/6308DNV is a concealed vertical rod device built for narrow stile hollow metal doors, and the key locks and unlocks the lever trim. The Von Duprin 8827-3FT is a surface vertical rod device in the 88 Series for wide stile doors, listed at 1-3/4 inch door thickness and 3 ft width. If the stile on your door is narrow, the Detex is the one that preps into it; if you have a wide stile door and want surface-mounted rods you can see and service, the 8827-3FT fits that opening.
9) I need delayed egress or a request-to-exit switch on a vertical rod device. Does a comparable model cover that?
The Detex Advantex 6208DNV/6308DNV is the one to specify for that. It is ordered with an electrified option of EA hardwired electric alarm, EX request to exit signal switch, EE delayed egress, or ED electric dogging, plus hex dogging or cylinder dogging choices. The comparable vertical rod devices from Cal-Royal, Delaney, Imperial USA, Marks USA, and Von Duprin listed here are mechanical exit-only or standard panic devices without those electrified configurations called out.
10) What does the Key Locks/Unlocks Lever function on the Detex 6208DNV actually do?
Outside trim is a lever, and a key in the trim locks or unlocks that lever. Turn it to the unlocked position and the lever retracts the latches for normal traffic; lock it and the lever is dead, so entry is by key only while egress from the inside is always free through the pushbar. Handy detail for maintenance: the outside trim can be changed or rekeyed with the device still on the door, the one exception being the 03R trim.
11) Which dogging option should I choose for a school or office door that stays open during the day?
On a non-rated opening, cylinder dogging is the usual pick for schools and offices because it takes a key rather than an allen wrench, so staff can hold the latch retracted during business hours and nobody dogs it down with a hex key from a toolbox. Hex dogging is the lower-cost mechanical option. If the opening is fire rated, order less/no dogging.
12) Is there a Grade 1 fire rated vertical rod alternative if the Detex Advantex does not suit the opening?
Yes. For a 36 by 84 inch opening, the Delaney F9100 Series is a Grade 1 fire rated heavy duty vertical rod device in aluminum finish. Its non-rated siblings are the Delaney 9100 Series in stainless and the Delaney 8100 Series, both Grade 1. Where budget drives the spec and the door is non-rated, the Cal-Royal 9860 is a Grade 2 heavy duty exit-only surface vertical rod.
13) Do the top and bottom bolts on the Detex Advantex drag on the floor when the door is open?
No, and that is the point of the 6-position multi-step top latch. It holds both the top and bottom bolts retracted until the door closes, so the bottom bolt is not scraping the threshold every cycle and re-latching stays consistent. The top strike is also adjustable vertically and takes up varying weather strip thicknesses, which is where most vertical rod callbacks come from.
14) Is the Detex Advantex 62/63 heavy enough for a high-traffic school or hospital exit?
It is a Grade 1 commercial device, the top ANSI/BHMA durability tier for exit hardware, and Detex builds the Advantex line super-heavy-duty for high-use, high-abuse openings. Typical applications are schools, healthcare, retail, warehouses, multi-tenant residential and government buildings. Concealed rods help here too, since there is no exposed rod for a cart or a foot to bend.
15) How do the Delaney 8100 and 9100 Series vertical rod devices compare to the Detex Advantex 62/63 Series?
The Delaney 8100 Series and 9100 Series are both Grade 1 non-fire-rated vertical rod devices sized for a 36 by 84 inch door, the 9100 offered in stainless steel finish. The Detex Advantex 6208DNV/6308DNV is also Grade 1 but is a concealed vertical rod device for narrow stile hollow metal doors, offered in 36 inch and 48 inch sizes for 96 inch and 120 inch door heights, in ten finishes from 605 polished brass through 695 dark bronze painted, and in either top-and-bottom rod or top-rod-only form. Pick the Detex when the opening is a tall door, a narrow stile, or needs keyed lever trim.
16) Which vertical rod exit devices are non-handed if I do not want to specify handing?
The Marks USA M9900VR and the fire rated M9900FVR are described as non-handed vertical rod panic devices, so handing does not have to be called out at order time. The Detex Advantex 6208DNV/6308DNV is ordered by handing, right hand reverse or left hand reverse, though the device is field-reversible and field-sizeable if the opening changes.
17) What finishes does the Detex 62/63 come in for matching existing hardware in a building?
Ten finishes: 605 polished brass, 606 brushed brass, 611 polished bronze, 612 brushed bronze, 613 oil rubbed bronze, 628 brushed aluminum, 629 polished stainless, 630 brushed stainless, 693 black painted and 695 dark bronze painted. For a building already standardized on aluminum storefront hardware, 628 is the common match; 630 is the usual institutional standard.
18) Where do I get the door prep template for the Detex 6208DNV before the doors go to the shop?
Detex publishes both the 62/63 Series catalog page and the installation instructions for the Advantex concealed vertical rod device, and a template set covering the Advantex 60/61/62/63 Series. Get the prep to the hollow metal shop before the doors are fabricated, because concealed rods need the routing done in the leaf. The device uses a patented mounting plate system that keeps the hole locations accurate and the door prep minimal.
