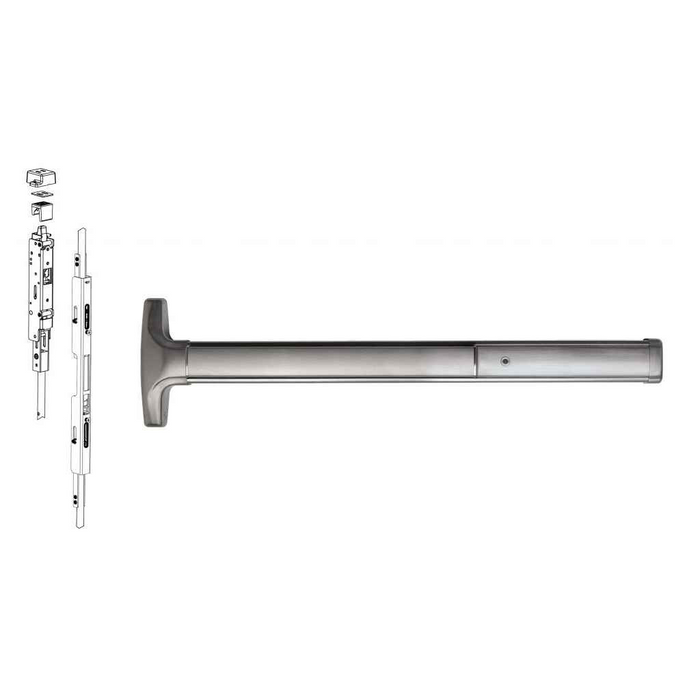

Detex 70/71 Advantex Series Concealed Vertical Rod Exit Device - Wide Stile Grade 1

Detex 70/71 Advantex Series Concealed Vertical Rod Exit Device - Wide Stile Grade 1

Super Heavy-Duty Panic and Fire Exit Hardware for Wood Doors

The Detex 70/71 Advantex Series concealed vertical rod exit device delivers Grade 1 performance for wooden double doors without a mullion. This wide stile design features patented mounting plate system for accurate installation and 6-position multi-step action in top latch for enhanced security. Field reversible and field sizeable construction with patented deadlocking of top and bottom bolt assemblies ensures reliable operation in high-use commercial environments.

Professional Features & Benefits

• Wide Stile Design: Specifically engineered for wood doors with wide stile construction for optimal mounting and operation.
• Super Heavy-Duty Construction: Tough and durable design built for years of trouble-free service in high-use, high-abuse environments.
• Patented Mounting System: Patented mounting plate system ensures the easiest and most accurate installation of panic hardware available.
• 6-Position Multi-Step Action: Advanced top latch mechanism keeps top and bottom bolts retracted until door closes, providing more consistent re-latching and enhanced security.
• Patented Deadlocking: Patented deadlocking of top (70 and 71 Series) and bottom (70 Series) bolt assemblies for maximum security performance.
• Field Adjustable: Rods are easily adjustable with rods installed in door, and device is field reversible and field sizeable for installation flexibility.
• Grade 1 Certification: BHMA Grade 1 rating ensures commercial-grade performance and durability standards.
• Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

• Commercial/Residential: Commercial
• Grade: Grade 1
• Product Category: Exit Devices and Trim
• Product Function: Device Only - Exit Only
• Product Group: Exit Devices and Trim
• Product Model: 70/71
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Vertical Rod
• Series: 70/71 Series
• Stile: Wide (For Wood Doors)
• Stile Type: Wide Stile
• Subcategory: Advantex Series
• Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Detex Quality?

Detex concealed vertical rod exit devices deliver professional-grade reliability with patented mounting and deadlocking systems engineered for demanding commercial applications. The Grade 1 certification and 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty demonstrate the company's commitment to quality and performance. Built for high-use, high-abuse environments where dependable panic hardware performance is essential.
