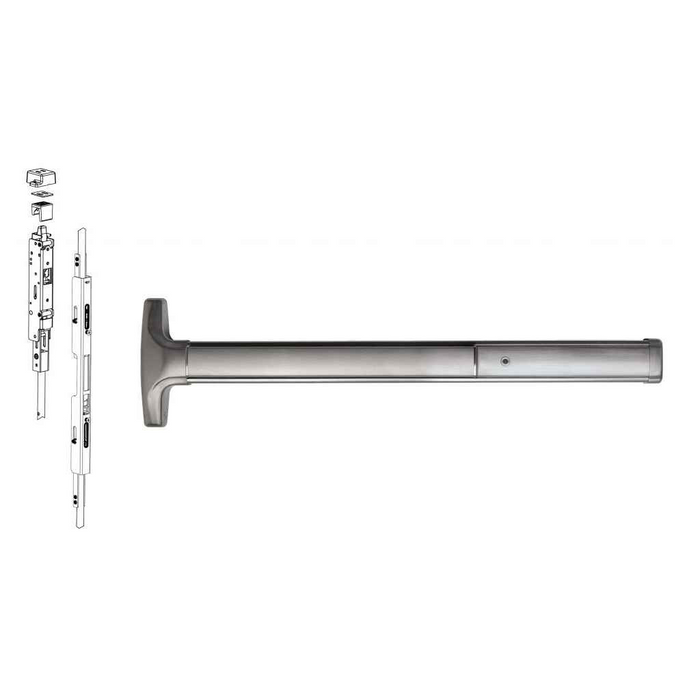

Detex Advantex 70/71 Series Concealed Vertical Rod Exit Device with Dummy Pull Trim - Wide Stile

Detex Advantex 70/71 Series Concealed Vertical Rod Exit Device with Dummy Pull Trim - Wide Stile

(No reviews yet) Write a Review

Model: 7002CV-628-36x96
$3,523.03
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,523.03
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex Advantex 70/71 Series Concealed Vertical Rod Exit Device with Dummy Pull Trim - Wide Stile

Super Heavy-Duty Panic and Fire Exit Hardware for Wood Doors

The Detex Advantex 70/71 Series Concealed Vertical Rod Exit Device delivers Grade 1 commercial-grade performance for wooden double doors without mullions. This wide stile design features patented mounting plate technology for precise installation and includes dummy pull trim for complete door coordination. The device incorporates patented deadlocking bolt assemblies and field-reversible operation for maximum installation flexibility.

Professional Features & Benefits

  • Wide Stile Compatibility: Specifically designed for wood doors with wide stile configurations for optimal fit and performance.
  • Super Heavy-Duty Construction: Engineered for years of trouble-free service in high-use, high-abuse commercial environments with durable steel components.
  • Patented Mounting System: Ensures the easiest and most accurate installation of panic hardware available with minimal door preparation required.
  • 6-Position Multi-Step Action: Top latch keeps top and bottom bolts retracted until door closes, providing consistent re-latching and enhanced security.
  • Field Reversible Operation: Handed design allows field reversal for flexible installation without requiring different hardware.
  • Patented Deadlocking Technology: Top and bottom bolt assemblies feature patented deadlocking for superior security performance.
  • Adjustable Strike System: Top strike fully adjustable both vertically and to accommodate varying weather strip thicknesses.
  • Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Grade: Grade 1
  • Product Category: Exit Devices and Trim
  • Product Function: Dummy Pull Trim
  • Product Group: Exit Devices and Trim
  • Product Model: 7002CV/7102CV
  • Product Subgroup: Exit Devices - Vertical Rod
  • Product Type: Exit Devices - Vertical Rod
  • Series: 70/71 Series
  • Stile: Wide (For Wood Doors)
  • Stile Type: Wide Stile
  • Subcategory: Advantex Series
  • Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex Advantex Series exit devices deliver professional-grade reliability with patented mounting plate technology and Grade 1 commercial construction rated for high-use, high-abuse environments. The 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty provides comprehensive coverage for demanding applications. Engineered for demanding commercial applications where dependable performance and code compliance are essential.



Resources

Installation Instructions
Catalog Page
Door Templates

Product Specs

Subcategory:
Advantex Series
Series:
70/71 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Vertical Rod
Product Type:
Exit Devices - Vertical Rod
Commercial/Residential:
Commercial
Warranty:
10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
Grade:
Grade 1
Stile:
Wide (For Wood Doors)
Stile Type:
Wide Stile
Product Model:
7002CV/7102CV
Product Function:
Dummy Pull Trim
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex 7002CV-628-36x96 – Frequently Asked Questions

1) Will the Detex Advantex 7002CV/7102CV work on a pair of wood doors with no center mullion?
That's exactly the application. The 7002CV/7102CV is a concealed vertical rod device, so it latches into the frame head and the threshold rather than into a mullion, which lets you secure wood double doors without one. It's built for wide stile wood doors specifically.
2) Is the Detex 70/71 Series concealed rod device available fire rated?
Both fire rated and non-rated configurations are offered on the 7002CV/7102CV, so you choose the rating when you order. For a fire door assembly, specify the fire rated version and note that dogging is not used on fire rated exit devices.
3) What does the "Dummy Pull Trim" function on the Detex 7002CV/7102CV mean for the inactive leaf?
Dummy pull trim means the outside trim is a pull only, with no lever and no latch retraction from outside. You push the touchbar to get out; from the outside the door stays locked and the pull is just a grab handle. If you need keyed entry from outside, this is the wrong trim function.
4) Do I need to order the Detex Advantex 7002CV handed?
You pick Right Hand Reverse or Left Hand Reverse when ordering, but the device is field reversible, so a handing mix-up on site can be corrected without a different part.
5) Can the Detex 70/71 Series concealed rod device be ordered top rod only, without a bottom rod?
Yes. Two rod configurations are offered: top and bottom rod, or top rod only. Top rod only avoids the floor strike, which is the usual choice where flooring, carpet transitions, or debris make a bottom strike a maintenance problem. Fire rated openings generally require the bottom bolt unless the door manufacturer's listing permits less bottom rod.
6) What door heights and device widths does the Detex 7002CV/7102CV cover?
Rod lengths are offered for 96 inch and 120 inch door heights, and the device itself comes in 36 inch and 48 inch widths to suit the door leaf. Match the width to the leaf and the rod length to the door height.
7) Can I get alarm or delayed egress on the Detex 70/71 Series exit device?
Four electrified options are available on the 7002CV/7102CV: EA hardwired electric alarm, EX request-to-exit signal switch, EE delayed egress, and ED electric dogging. EA is the local horn on the device itself, EX gives a dry contact to your access control or camera system, EE is the 15-second delay for controlled openings, and ED lets you dog and undog the bar remotely on a schedule.
8) Should I use a concealed vertical rod device or a surface vertical rod device?
Concealed rod, like the Detex 7002CV/7102CV, hides the rods inside the door for a cleaner look and less to vandalize or catch on a cart, but it needs the door routed for the rods, so it's best specified on new doors or doors already prepped. Surface vertical rod mounts the rods on the face of the door and installs on an unprepped leaf, which is why it's the retrofit choice. If you want surface rod, the Von Duprin 8827-3FT is a Grade 1 wide stile surface vertical rod device, and the Marks USA M9900VR covers 36 by 84 openings.
9) Will the Detex Advantex 7002CV fit narrow stile aluminum storefront doors?
No. This is the wide stile version, built for wood doors, and it needs the stile width a wide stile device requires. On a narrow stile aluminum storefront leaf you want a narrow stile device instead.
10) I need a fire rated vertical rod device for a 36 inch by 84 inch opening - what are my options besides the Detex 70/71 Series?
The Detex Advantex 70/71 Series 7002CV/7102CV is offered in both Fire Rated and Non-Rated builds in 36 inch and 48 inch sizes. For a fire rated surface alternative at 36 by 84, the Marks USA M9900FVR is a fire rated vertical rod exit device, exit only and non-handed, and the Delaney F9100 Series 694300 is a Grade 1 fire rated heavy duty vertical rod device for a 36 by 84 door in an aluminum finish. At 48 inches, the Marks USA M9900F-VR is the fire rated equivalent.
11) Is the Cal-Royal 9860 a substitute for the Detex Advantex 7002CV/7102CV?
They are not interchangeable on rating or duty class. The Cal-Royal 9860 is a heavy duty Grade 2 surface vertical rod exit device, exit only, and is not fire rated. The Detex Advantex 70/71 Series 7002CV/7102CV is Grade 1 with concealed vertical rods and is available in a fire rated build. If the opening is specified Grade 1 or fire rated, the 9860 will not cover it.
12) What dogging options are there on the Detex Advantex 70/71 concealed vertical rod device?
Three choices: hex dogging, cylinder dogging, or less dogging. Hex key dogging is the standard mechanical option and needs the hex wrench on hand. Cylinder dogging lets staff hold the bar down with a key instead, which most schools and offices prefer when non-maintenance people manage the doors. Less dogging is the option to take on a fire rated opening.
13) What finishes does the Detex Advantex 7002CV come in for matching other doors in a building?
Ten finishes: 605 polished brass, 606 brushed brass, 611 polished bronze, 612 brushed bronze, 613 oil rubbed bronze, 628 brushed aluminum, 629 polished stainless, 630 brushed stainless, 693 black painted, and 695 dark bronze painted. For a building already standardized on aluminum storefront hardware, 628 is the usual match; 630 brushed stainless is the common pick for healthcare and education corridors.
14) Is the Detex 70/71 concealed vertical rod device heavy duty enough for a high school or hospital corridor?
It's Grade 1, the top ANSI/BHMA durability tier for exit devices, with steel components and patented deadlocking top and bottom bolt assemblies. Detex lists it for high-use, high-abuse commercial service, including educational, healthcare, and government buildings.
15) What are the alternatives if I need a fire rated vertical rod device but not a concealed one?
Two fire rated surface options we carry: the Delaney F9100 Series (Grade 1, fire rated, sized for a 36 by 84 door) and the Marks USA M9900FVR, also fire rated for 36 by 84, non-handed. For a 48 inch leaf, Marks offers the M9900F-VR at 48 by 84. Those go on the face of the door rather than needing the leaf routed like the Detex concealed rod device.
16) Does weatherstripping at the head cause latching problems with the Detex 70/71 top bolt?
The top strike adjusts both vertically and for varying weather strip thickness, so you can dial in the top bolt engagement on a gasketed exterior opening. The 6-position multi-step action also holds the top and bottom bolts retracted until the door closes, which keeps the re-latch consistent.
17) I need a 48 inch wide vertical rod exit device - what can I choose from?
The Detex Advantex 70/71 Series 7002CV/7102CV is offered in a 48 inch size as well as 36 inch, with concealed rods and Grade 1 construction. For surface rod alternatives at that width, the Marks USA M9900VR 48 by 84 is a non fire rated exit only vertical rod panic device and the Marks USA M9900F-VR 48 by 84 is the fire rated exit only version.
18) Do any of the comparable vertical rod exit devices offer delayed egress or electric dogging like the Detex Advantex?
The Detex Advantex 7002CV/7102CV can be ordered with EA hardwired electric alarm, EX request to exit signal switch, EE delayed egress, or ED electric dogging, plus hex or cylinder dogging. The comparable vertical rod devices - Cal-Royal 9860, Imperial USA ED-VR531, Marks USA M9900VR and Von Duprin 8827-3FT - are catalogued as mechanical exit only or plain panic devices, so if the opening needs an access control or egress signal tie-in the Advantex is the device configured for it.
19) How do the Delaney 8100 and 9100 Series vertical rod devices differ from each other as alternatives to the Detex 70/71 Series?
Both are Grade 1 non fire rated vertical rod devices for a 36 by 84 door. The Delaney 9100 Series 692301 is described as heavy duty and supplied in a stainless steel finish, while the 8100 Series 8100-3684 is the base Grade 1 vertical rod device for the same opening. The fire rated counterpart in that family is the F9100 Series 694300. The Detex Advantex 7002CV/7102CV differs from all three in using concealed vertical rods and offering ten architectural finishes.
20) Will the Detex 7002CV/7102CV work on a hollow metal door, or should I look at another device?
The Detex Advantex 70/71 Series 7002CV/7102CV is specified with a wide stile for wood doors and conceals its rods within the door. Where the leaf is not prepped for concealed rods, surface-applied Grade 1 wide stile options include the Von Duprin 8827-3FT, rated for 1-3/4 inch thick doors in a 3 ft width, and the Imperial USA ED-VR531 wide stile surface vertical rod device.
21) Are door prep templates and install instructions available for the Detex 70/71 Series?
Yes, and on a concealed rod device you want them before you cut. Detex publishes installation instructions and a series catalog page for the 70/71 Advantex devices, plus door prep templates for the series. The mounting plate system is patented and keeps door prep to a minimum.
