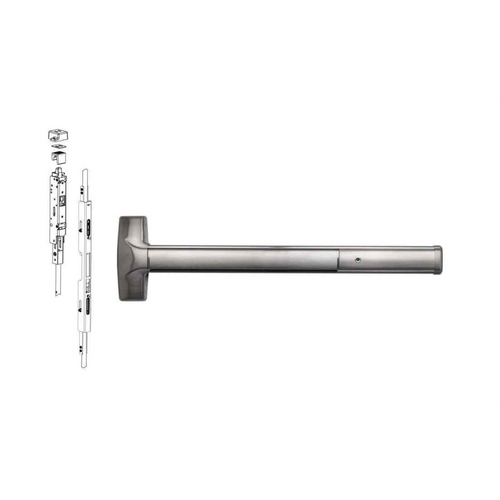

Detex Advantex 82/83 Series Concealed Vertical Rod Exit Device with Dummy Lever Trim - Wide Stile Aluminum Doors

Detex Advantex 82/83 Series Concealed Vertical Rod Exit Device with Dummy Lever Trim - Wide Stile Aluminum Doors

Professional Concealed Vertical Rod Exit Device for Wide Stile Aluminum Doors

The Detex Advantex 82/83 Series concealed vertical rod exit device combines architectural aesthetics with super-heavy-duty panic and fire exit hardware performance. Specifically designed for wide stile aluminum doors without a mullion, this Grade 1 exit device features a patented mounting plate system that ensures the easiest and most accurate installation available. The device includes dummy lever trim and offers field-reversible operation with 1/8 turn dogging capability for versatile commercial applications.

Professional Features & Benefits

• Wide Stile Aluminum Door Compatibility: Specifically engineered for wide stile aluminum doors without mullion requirements for optimal architectural integration.
• Heavy-Duty Construction: Super-heavy-duty design built for years of trouble-free service in high-use, high-abuse commercial environments.
• Patented Mounting System: Patented mounting plate system ensures the easiest and most accurate installation of panic hardware available, saving time and money.
• Advanced Latch Mechanism: 6-position multi-step action in top latch keeps top and bottom bolts retracted until door closes, providing more consistent re-latching and enhanced security.
• Adjustable Strike System: Top strike fully adjustable both vertically and to accommodate varying weather strip thicknesses for precise door alignment.
• Patented Deadlocking: Patented deadlocking of top bolt assemblies (82 and 83 Series) and bottom bolt assemblies (80 Series) for maximum security.
• Field Configuration Options: Handed field-reversible design with field sizeable capability and 1/8 turn dogging for operational flexibility.
• Manufacturer Warranty: 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

• Commercial/Residential: Commercial
• Grade: Grade 1
• Product Category: Exit Devices and Trim
• Product Function: Dummy Lever Trim
• Product Group: Exit Devices and Trim
• Product Model: 8202DV/8302DV
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Vertical Rod
• Series: 82/83 Series
• Stile: Wide (For Aluminum Doors)
• Stile Type: Wide Stile
• Subcategory: Advantex Series
• Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, wide stile dimensions, and handing as applicable to this concealed vertical rod device.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces, utilizing the patented mounting plate system.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for wide stile aluminum door applications.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications, ensuring proper alignment with the patented mounting system.
5. Adjust operational components including the 6-position multi-step action mechanism and top strike for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation including 1/8 turn dogging function to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Detex Quality?

Detex Advantex Series exit devices deliver professional-grade reliability with super-heavy-duty construction and patented mounting technology designed for demanding commercial applications. The Grade 1 rating and 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty demonstrate the exceptional durability and performance standards. Engineered for high-use, high-abuse environments where dependable panic hardware performance is essential.
