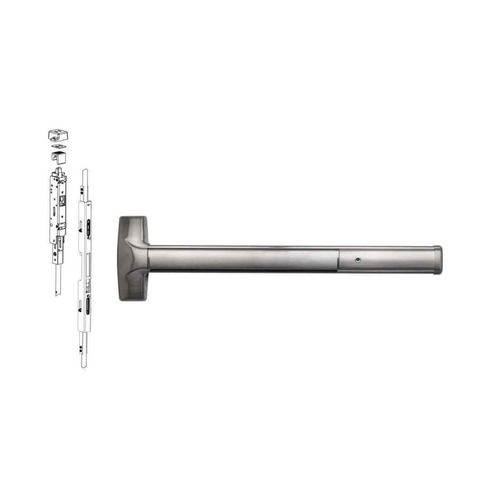

Detex Advantex 82/83 Series Concealed Vertical Rod Exit Device with Key Locks/Unlocks Lever - Wide Stile Aluminum Door

Detex Advantex 82/83 Series Concealed Vertical Rod Exit Device with Key Locks/Unlocks Lever - Wide Stile Aluminum Door

(No reviews yet) Write a Review

Model: 8208DV-628-36x96
$3,784.00
$3,750.85
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,784.00
$3,750.85
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex Advantex 82/83 Series Concealed Vertical Rod Exit Device with Key Locks/Unlocks Lever - Wide Stile Aluminum Door

Professional Concealed Vertical Rod Exit Device for Wide Stile Aluminum Doors

The Detex Advantex 82/83 Series Concealed Vertical Rod Exit Device delivers Grade 1 performance specifically engineered for wide stile aluminum doors without mullions. This super-heavy-duty panic and fire exit hardware features a patented mounting plate system for precise installation and field-reversible operation. The device incorporates patented deadlocking of top and bottom bolt assemblies with a durable steel bottom drop bolt for enhanced security and reliability.

Professional Features & Benefits

  • Wide Stile Aluminum Door Compatibility: Specifically designed for wide stile aluminum doors without mullions, ensuring proper fit and optimal performance.
  • Grade 1 Heavy-Duty Construction: Super-heavy-duty design engineered for years of trouble-free service in high-use, high-abuse commercial environments.
  • Patented Deadlocking System: Advanced deadlocking of top (82 and 83 Series) and bottom bolt assemblies provides superior security and consistent operation.
  • 6-Position Multi-Step Action: Top latch features 6-position multi-step action that keeps top and bottom bolts retracted until door closes, providing more consistent re-latching and enhanced security.
  • Field-Reversible Design: Handed device with field-reversible capability allows adaptation to various door configurations without requiring different hardware.
  • Adjustable Strike System: Top strike is fully adjustable both vertically and to accommodate varying weather strip thicknesses for precise door alignment.
  • Easy Installation System: Patented mounting plate system ensures the easiest and most accurate installation with minimal door preparation, saving time and money.
  • Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty provides long-term protection and confidence.

Technical Specifications

  • Commercial/Residential: Commercial
  • Grade: Grade 1
  • Product Category: Exit Devices and Trim
  • Product Function: Key Locks/Unlocks Lever
  • Product Group: Exit Devices and Trim
  • Product Model: 8208DV/8308DV
  • Product Subgroup: Exit Devices - Vertical Rod
  • Product Type: Exit Devices - Vertical Rod
  • Series: 82/83 Series
  • Stile: Wide (For Aluminum Doors)
  • Stile Type: Wide Stile
  • Subcategory: Advantex Series
  • Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex Advantex Series exit devices deliver professional-grade reliability with super-heavy-duty construction and patented deadlocking technology designed for demanding high-use, high-abuse environments. The 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty demonstrates the manufacturer's confidence in long-term performance. Engineered for demanding commercial applications where dependable panic hardware performance and architectural aesthetics are essential.



Resources

Installation Instructions
Catalog Page
Door Templates

Product Specs

Subcategory:
Advantex Series
Series:
82/83 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Vertical Rod
Product Type:
Exit Devices - Vertical Rod
Commercial/Residential:
Commercial
Warranty:
10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
Grade:
Grade 1
Stile:
Wide (For Aluminum Doors)
Stile Type:
Wide Stile
Product Model:
8208DV/8308DV
Product Function:
Key Locks/Unlocks Lever
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex 8208DV-628-36x96 – Frequently Asked Questions

1) Will the Detex Advantex 8208DV/8308DV work on a pair of aluminum storefront doors with no mullion?
That's exactly what it's built for. The Advantex 82/83 Series concealed vertical rod device is designed for wide stile aluminum doors without mullions. Because it latches into the frame head and the threshold rather than a strike on a mullion, it secures the opening without a center post. For a narrow stile aluminum door, this is the wrong device.
2) What door heights and device widths does the Detex 82/83 concealed vertical rod device cover?
Device width is offered in 36 inch and 48 inch, and rod length is ordered by door height in either 96 inch or 120 inch. Pick the width to suit the door leaf and the height to suit the actual opening, since the concealed rods run the full leaf.
3) Do I have to specify handing on the Detex Advantex 8208DV, and can it be changed in the field?
Handing is specified at order: right hand reverse or left hand reverse. The device is handed, but field-reversible, so if the wrong hand shows up on the job it can be converted rather than returned.
4) Can I order the Detex 82/83 concealed vertical rod device less bottom rod?
Yes. Two configurations are offered: top and bottom rod, or top rod only. Top rod only keeps the bottom of the door clear, which helps on openings where floor debris, carpet, or an uneven threshold fouls a bottom bolt. Top and bottom rod gives you the steel bottom drop bolt and deadlocking at both ends.
5) Is the Detex Advantex 82/83 device available fire rated?
It is ordered either fire rated or non-rated. On a fire door assembly you need the fire rated version, and fire rated exit devices do not get dogged down, so plan the dogging choice accordingly.
6) What is the closest wide stile surface-mounted alternative to the Detex 8208DV/8308DV concealed vertical rod device?
The Von Duprin 8827-3FT is a Grade 1 wide stile surface vertical rod exit device in a 3 ft width, built for 1-3/4 inch doors. The difference is rod placement: the Detex 8208DV/8308DV runs its vertical rods concealed inside the wide stile aluminum door, while the 8827-3FT carries them on the door face. Surface rods mean no internal door prep, but they are exposed to traffic and carts. Both are Grade 1. If the aluminum door is already prepped for concealed rods, the Detex is the direct fit; if you are retrofitting an unprepped door, the surface device saves the routing.
7) I only need a push-to-exit door with no outside key function. What should I use instead of the Detex 8208DV/8308DV?
The Detex 8208DV/8308DV is a key locks/unlocks lever device, meaning it carries outside lever trim controlled by a cylinder. If the opening needs no outside operation at all, an exit-only vertical rod device is the simpler specification: the Imperial USA ED-VR531 is a Grade 1 wide stile surface vertical rod device in 36 inch, listed as exit only, and the Marks USA M9900VR is a 36 by 84 exit-only vertical rod panic device that is non-handed. Exit only means there is no outside trim, no cylinder, and nothing to key into a master system.
8) My opening is fire rated. Which vertical rod devices besides the Detex 8208DV/8308DV can I use?
The Detex 8208DV/8308DV is ordered in either a Fire Rated or Non-Rated configuration, so the rated version covers a labeled opening directly. Among other vertical rod devices, the Delaney F9100 Series (DLY-694300) is a Grade 1 fire rated heavy duty vertical rod device for a 36 by 84 door in an aluminum finish, the Marks USA M9900FVR is a fire rated 36 by 84 exit-only vertical rod device, and the Marks USA M9900F-VR covers a 48 by 84 fire rated exit-only opening. Note that a fire rated device cannot be dogged, so the hex or cylinder dogging options on the Detex apply to non-rated openings only.
9) Which vertical rod devices support electrified options like delayed egress or request to exit?
The Detex 8208DV/8308DV is ordered with an electrified option: EA hardwired electric alarm, EX request to exit signal switch, EE delayed egress, ED electric dogging, or none. The comparable vertical rod devices from Cal-Royal, Delaney, Imperial USA, Marks USA and Von Duprin are catalogued as mechanical exit devices without those built-in electrified functions. If the opening is tied to an access control or alarm system, the Detex is the device that carries the option factory-installed.
10) What looks like a substitute for the Detex 8208DV/8308DV but will not fit my wide stile aluminum door prep?
Any surface vertical rod device is the common near-miss. The Cal-Royal 9860, Imperial USA ED-VR531, Von Duprin 8827-3FT, and the Marks USA and Delaney vertical rod devices are all surface rod designs, and they mount rods on the face of the door rather than inside the stile. The Detex 8208DV/8308DV is a concealed vertical rod device for wide stile aluminum doors without mullions, so a door already routed for concealed rods will not accept a surface device without visible rods and new prep. Match concealed to concealed when replacing in kind.
11) What dogging options are there on the Detex 8208DV, and which should I pick for a retail entrance?
Three choices: hex dogging, cylinder dogging, or less dogging. For a retail storefront held open during business hours, cylinder dogging lets staff dog the device with a key instead of an allen wrench, which is what most property managers want when multiple people handle open and close. Hex dogging is the lower cost option. Less dogging is the choice on a fire rated opening.
12) What does the Key Locks/Unlocks Lever function mean on the Detex 8208DV/8308DV?
The outside lever trim is controlled by key: turn the key to lock the lever, turn it back to leave the lever unlocked for free entry. It is not momentary key retraction. Inside, the push pad always gives free egress. This suits an office or school entrance that needs to be unlocked during the day and secured after hours without changing hardware.
13) What electrified options can I add to the Detex Advantex 82/83 exit device?
Four, plus a non-electrified version: EA hardwired electric alarm, EX request to exit signal switch, EE delayed egress, and ED electric dogging. EX is what you use to tie the door into an access control system so an authorized exit does not trip the alarm. ED lets the device dog and undog on a time schedule instead of by hand.
14) Why choose a concealed vertical rod device instead of a surface vertical rod?
Concealed rods run inside the door stile, so nothing is exposed on the face of the door. That's the reason most aluminum storefront and architectural openings spec them: cleaner look, and the rods are not there to be kicked or vandalized. The tradeoff is door prep, the leaf has to be prepped for the rods, so retrofitting concealed rods into a door that was never prepped is a job. If the door is already surface prepped, a surface device like the Von Duprin 8827 wide stile surface vertical rod or the Imperial USA ED-VR531 is the simpler swap.
15) Is the Detex Advantex 8208DV Grade 1, and is that enough for a high traffic school exit?
Grade 1, commercial rated, which is the top ANSI/BHMA durability tier for exit devices and the normal spec for school, healthcare, and government openings. Detex builds the Advantex line for high-use, high-abuse service, with patented deadlocking of the top and bottom bolt assemblies and a steel bottom drop bolt.
16) My doors re-latch inconsistently at the top. Does the Detex 82/83 address that?
That's the point of the 6-position multi-step top latch. It holds both the top and bottom bolts retracted until the door is actually closed, so the bolts are not dragging or firing early, which is the usual cause of a top bolt that does not seat. The top strike also adjusts vertically and for weather strip thickness, so you can dial in the alignment after install instead of shimming.
17) What is a cheaper alternative to the Detex Advantex concealed vertical rod if I only need exit-only hardware?
If nobody needs to get back in through that door with a key, you don't need the key-locks-lever trim function. Exit-only vertical rod devices ZenSupply carries include the Marks USA M9900VR in 36 x 84 and 48 x 84, the fire rated Marks USA M9900FVR, and the Imperial USA ED-VR531. Note these are surface vertical rod devices, so the look and the door prep differ from a concealed rod. The Cal-Royal 9860 is Grade 2 rather than Grade 1, which matters if your spec calls for Grade 1.
18) What Grade 1 fire rated vertical rod alternatives are there besides the Detex Advantex?
For a fire rated opening the Delaney F9100 Series is Grade 1 and fire rated, sized for a 36 x 84 door in aluminum finish. The Marks USA M9900FVR is fire rated and exit only, offered in 36 x 84 and 48 x 84. The Delaney 9100 and 8100 Series are Grade 1 but non-fire-rated, so they are not substitutes on a labeled door.
19) Is the Cal-Royal 9860 an acceptable substitute for the Detex 8208DV/8308DV?
Not on a like-for-like basis. The Cal-Royal 9860 is a heavy duty Grade 2 surface vertical rod exit device with an exit only function and no fire rating. The Detex 8208DV/8308DV is Grade 1, offered fire rated or non-rated, and provides key locks/unlocks lever trim on the outside. If your drawing calls for Grade 1 or for outside lever control, the 9860 does not meet it. If the spec allows Grade 2 and the door needs egress only, the 9860 is the lighter specification.
20) I have a 48 inch wide leaf. Which vertical rod devices cover that width?
The Detex 8208DV/8308DV is available in a 48 inch device size as well as 36 inch, and covers 96 inch and 120 inch door heights. Among other vertical rod devices sized for a wide leaf, the Marks USA M9900VR-48X84 is a 48 by 84 exit-only panic device and the Marks USA M9900F-VR is the 48 by 84 fire rated exit-only version. The Marks options are exit only; if the 48 inch leaf needs keyed outside lever access, the Detex is the one that provides it.
21) Does handing matter when I swap the Detex 8208DV/8308DV for another vertical rod device?
It can. The Detex 8208DV/8308DV is a handed device ordered as right hand reverse or left hand reverse, though it is field reversible. By contrast the Marks USA M9900VR and the fire rated M9900FVR are listed as non-handed, so a single part covers either swing. If you are stocking devices across a mixed-swing building, that difference changes how many part numbers you carry.
22) Can I use a top-rod-only device instead of a full top and bottom rod vertical rod exit device?
The Detex 8208DV/8308DV is offered as a top and bottom rod device or a top rod only device. Top rod only eliminates the bottom latch and the floor strike, which is the usual choice where debris, water, or a threshold makes a bottom bolt unreliable. The comparable devices such as the Von Duprin 8827-3FT and the Imperial USA ED-VR531 are surface vertical rod devices, so the comparison there is rod exposure rather than rod count. Confirm with the authority having jurisdiction before applying a top rod only device to a fire rated opening.
23) What finishes does the Detex 82/83 series come in to match existing storefront hardware?
Ten finishes: 605 polished brass, 606 brushed brass, 611 polished bronze, 612 brushed bronze, 613 oil rubbed bronze, 628 brushed aluminum, 629 polished stainless, 630 brushed stainless, 693 black painted, and 695 dark bronze painted. On aluminum storefront the usual matches are 628 for clear anodized and 695 for dark bronze anodized.
24) How much door prep does the Detex Advantex 82/83 need on an aluminum door?
Detex uses a patented mounting plate system on the Advantex line specifically to keep door preparation minimal and the hole locations accurate. Detex publishes door prep templates and installation instructions for the 80/81/82/83 Series, so pull the template for your exact configuration before cutting the leaf, since rod configuration and handing change the prep.
