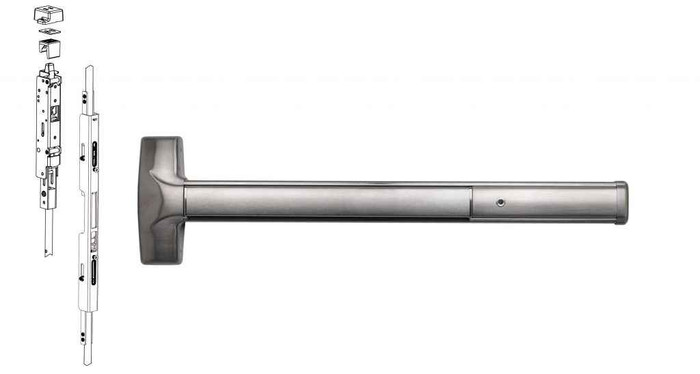

Detex Advantex 82/83 Series Concealed Vertical Rod Exit Device with Key Override Function

Detex Advantex 82/83 Series Concealed Vertical Rod Exit Device with Key Override Function

(No reviews yet) Write a Review

Model: 8209DV-628-36x96
$3,784.00
$3,750.85
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,784.00
$3,750.85
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex Advantex 82/83 Series Concealed Vertical Rod Exit Device with Key Override Function

Professional Concealed Vertical Rod Exit Device for Wide Stile Aluminum Doors

The Detex Advantex 82/83 Series Concealed Vertical Rod Exit Device delivers Grade 1 commercial-grade performance specifically engineered for wide stile aluminum doors without mullions. This super-heavy-duty panic and fire exit hardware features a patented mounting plate system for precise installation and key override functionality that unlocks the lever when engaged and locks when the key is removed. The concealed vertical rod design enhances architectural aesthetics while providing reliable emergency egress control for demanding commercial applications.

Professional Features & Benefits

  • Wide Stile Aluminum Door Compatibility: Specifically designed for wide stile aluminum doors without mullions for optimal architectural integration.
  • Heavy-Duty Construction: Super-heavy-duty design engineered for years of trouble-free service in high-use, high-abuse environments with durable steel bottom drop bolt.
  • Patented Mounting System: Patented mounting plate system ensures the easiest and most accurate installation of panic hardware available with minimal door preparation.
  • Advanced Latch Mechanism: 6-position multi-step action in top latch keeps top and bottom bolts retracted until door closes, providing more consistent re-latching and enhanced security.
  • Adjustable Strike System: Top strike fully adjustable both vertically and to accommodate varying weather strip thicknesses while securing the door and re-engaging latchbolts.
  • Field Reversible Design: Handed device is field reversible and field sizeable with easily adjustable rods installed in door for installation flexibility.
  • Key Override Function: Key unlocks lever when engaged and locks when key removed, providing controlled access while maintaining emergency egress capability.
  • Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Grade: Grade 1
  • Product Category: Exit Devices and Trim
  • Product Function: Key Unlocks Lever, Locked When Key Removed
  • Product Group: Exit Devices and Trim
  • Product Model: 8209DV/8309DV
  • Product Subgroup: Exit Devices - Vertical Rod
  • Product Type: Exit Devices - Vertical Rod
  • Series: 82/83 Series
  • Stile: Wide (For Aluminum Doors)
  • Stile Type: Wide Stile
  • Subcategory: Advantex Series
  • Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex Advantex Series exit devices deliver professional-grade reliability with super-heavy-duty construction and patented mounting technology engineered for demanding commercial applications. The 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty demonstrates confidence in long-term performance. Designed for high-use, high-abuse environments where dependable emergency egress and controlled access are essential.



Resources

Installation Instructions
Catalog Page
Door Templates

Product Specs

Subcategory:
Advantex Series
Series:
82/83 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Vertical Rod
Product Type:
Exit Devices - Vertical Rod
Commercial/Residential:
Commercial
Warranty:
10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
Grade:
Grade 1
Stile:
Wide (For Aluminum Doors)
Stile Type:
Wide Stile
Product Model:
8209DV/8309DV
Product Function:
Key Unlocks Lever, Locked When Key Removed
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex 8209DV-628-36x96 – Frequently Asked Questions

1) Will the Detex Advantex 8209DV/8309DV work on a pair of aluminum storefront doors with no mullion?
That is exactly what the 82/83 Series concealed vertical rod device is built for. It is designed for wide stile aluminum doors without mullions, latching at the head and at the threshold with a steel bottom drop bolt so each leaf is secured independently. If your opening has a removable mullion instead, a rim device is the simpler choice.
2) What does the key override function on the Detex 8209DV do, and does it still allow free egress?
Turning the key unlocks the lever for entry from the outside; pull the key and the lever locks again. Egress is never affected, pushing the touchpad from the inside always releases the latches. That makes it a controlled-access exterior opening rather than an exit-only door.
3) Do I have to specify handing on the Detex Advantex 82/83 concealed vertical rod device?
Yes, order it right hand reverse or left hand reverse. The device is handed, but it is field reversible and field sizeable, with rods that adjust after they are in the door, so a shop can correct a handing or door height mismatch without a new unit.
4) Can I get the Detex 82/83 concealed vertical rod as a fire rated exit device?
Both are offered. Choose the fire rated build for a labeled opening or the non-rated build for a standard egress door. Fire rated devices are ordered without mechanical dogging, so pick the dogging option accordingly.
5) What door widths and heights does the Detex Advantex 8209DV/8309DV cover?
Devices are built for 36 inch and 48 inch door widths, with rod lengths for 96 inch or 120 inch door heights. The 120 inch option covers tall storefront and entrance leaves without a special order.
6) Can the Detex 8209DV be ordered with a delayed egress or alarm option?
Yes. Factory electrified options are EA hardwired electric alarm, EX request-to-exit signal switch, EE delayed egress, and ED electric dogging. EE is the one for a controlled exterior door that needs a timed hold before release; EX is what ties the device into an access control or alarm panel for a valid-exit signal; ED lets the building schedule dog the device automatically.
7) How much door prep does a Detex Advantex concealed vertical rod device need compared to a surface rod device?
Concealed rods run inside the stile, so the door has to be prepped or supplied for them, but Detex uses a patented mounting plate system that keeps door preparation minimal and sets hole locations accurately. If your existing doors are not prepped for concealed rods, a surface vertical rod device such as the Von Duprin 8827 wide stile is the retrofit route, since surface hardware mounts on the face of the door.
8) What is the difference between the Detex 8209DV and the exit-only vertical rod devices like the Marks USA M9900VR?
Function. The Detex 8209DV/8309DV includes key override outside trim, so a key unlocks the lever for entry and relocks when the key is pulled. The Marks USA M9900VR and the Cal-Royal 9860 are exit only, meaning no outside trim at all, push to get out and no way back in. Pick exit only for a rear or stair discharge door, pick the Detex where people also need to come in.
9) Will the Detex 82/83 device fit a narrow stile aluminum door?
No. The 82/83 Series is a wide stile device for aluminum doors. A narrow stile leaf does not have the face width to take it, and you need a narrow stile device instead. Among wide stile alternatives, the Imperial USA ED-VR531 500 Series and the Von Duprin 8827 are both wide stile vertical rod devices.
10) What is the closest wide stile Grade 1 vertical rod alternative to the Detex Advantex 8209DV/8309DV?
The Von Duprin 8827-3FT is the nearest wide stile Grade 1 vertical rod device, listed for 1-3/4 inch doors in a 3 ft width from the 88 Series. The key difference is rod placement: the Advantex 8209DV/8309DV is a concealed vertical rod device for wide stile aluminum doors without mullions, while the 8827-3FT is a surface vertical rod, so the rods run on the face of the door instead of inside the stile. The 8827-3FT is non-fire-rated; the Advantex is ordered either fire rated or non-rated.
11) If the door does not need key entry from outside, is there a simpler vertical rod device than the Detex 8209DV/8309DV?
Yes. The Advantex 8209DV/8309DV is built around a key override function where the key unlocks the lever and the door locks again when the key is removed, which means outside trim and a cylinder. If the opening is egress only with no outside entry, exit-only vertical rod devices cover it: the Marks USA M9900VR at 36 x 84, the M9900VR 48 x 84, the Imperial USA ED-VR531 36 inch Grade 1 wide stile device, or the Cal-Royal 9860 heavy duty Grade 2 device. Those carry no outside lever, so nothing to key.
12) What fire rated vertical rod exit devices compare to the fire rated Detex Advantex 8209DV/8309DV?
The Advantex 8209DV/8309DV is orderable fire rated in 36 inch and 48 inch widths for 96 inch and 120 inch door heights, with key override trim. Fire rated peers include the Delaney F9100 Series Grade 1 fire rated vertical rod device for a 36 x 84 door in aluminum finish, the Marks USA M9900FVR fire rated 36 x 84 exit only device, and the Marks USA M9900F-VR fire rated 48 x 84 exit only device. Both Marks devices are exit only, so they do not provide the keyed outside lever the Advantex does.
13) Which vertical rod devices look like substitutes for the Detex Advantex 8209DV/8309DV but will not drop into the same door prep?
Every comparable vertical rod device in this class is a surface rod design, including the Von Duprin 8827-3FT wide stile Grade 1 device, the Imperial USA ED-VR531 wide stile device, and the Marks USA M9900VR. The Advantex 8209DV/8309DV runs its rods concealed inside the stile with a patented mounting plate and adjustable top strike, so a door already routed for concealed rods will not accept a surface rod device without a new prep and cover of the existing routing. Only the Advantex is offered with top rod only as well as top and bottom rod.
14) Should I order the top and bottom rod version or the top rod only version of the Detex 82/83?
Top and bottom rod gives you two points of latching, head and threshold, for maximum security. Top rod only (less bottom rod) removes the bottom latch and its floor strike, which is the usual pick where debris, ice, snow or carpet fouls a bottom bolt, or on high-traffic doors where you want nothing at the threshold. Both are stocked.
15) What are the dogging choices on the Detex Advantex 82/83 exit device?
Three: hex dogging, cylinder dogging, or less dogging. Hex key dogging is the standard shop option; cylinder dogging keys the hold-open to your system so only key holders can dog the push pad down for business hours. Less dogging is what you specify on a fire rated opening.
16) Is the Detex Advantex 82/83 heavy duty enough for a school or hospital main entrance?
It is a Grade 1 commercial device, the top ANSI/BHMA durability tier, built super heavy duty for high-use, high-abuse openings. Detex lists it for office buildings, schools, healthcare, retail, industrial, multi-tenant residential and government facilities.
17) Does the Detex Advantex 82/83 re-latch reliably on a door with heavy weatherstripping?
Two things help there. The top latch uses a 6-position multi-step action that holds the top and bottom bolts retracted until the door is actually closed, so it does not drag or hang up. And the top strike adjusts vertically and for varying weather strip thickness, so you can dial the engagement in on site rather than shimming.
18) Can a Cal-Royal 9860 be used in place of the Detex Advantex 8209DV/8309DV?
They are not equivalents. The Cal-Royal 9860 is a heavy duty Grade 2 surface vertical rod device with an exit only function and no fire rating. The Advantex 8209DV/8309DV is a Grade 1 concealed vertical rod device with key override trim, offered fire rated or non-rated. On an opening where the specification calls for Grade 1 or a fire label, the 9860 will not satisfy it.
19) For a standard 36 x 84 non-rated opening, what Grade 1 vertical rod devices are alternatives to the Detex Advantex?
For a 36 x 84 non-rated leaf, the Delaney 9100 Series Grade 1 heavy duty vertical rod device in stainless steel finish, the Delaney 8100 Series Grade 1 vertical rod device, and the Imperial USA ED-VR531 500 Series Grade 1 36 inch wide stile surface vertical rod device all cover it. The Advantex 8209DV/8309DV differs in that its rods are concealed in the door and it ships handed right hand reverse or left hand reverse, field reversible, sized for 96 inch or 120 inch door heights rather than 84 inch.
20) What finishes does the Detex 82/83 concealed vertical rod device come in to match my other storefront doors?
Ten finishes: 605 polished brass, 606 brushed brass, 611 polished bronze, 612 brushed bronze, 613 oil rubbed bronze, 628 brushed aluminum, 629 polished stainless, 630 brushed stainless, 693 black painted and 695 dark bronze painted. For typical aluminum storefront, 628 and 695 are the two that match most existing frames.
