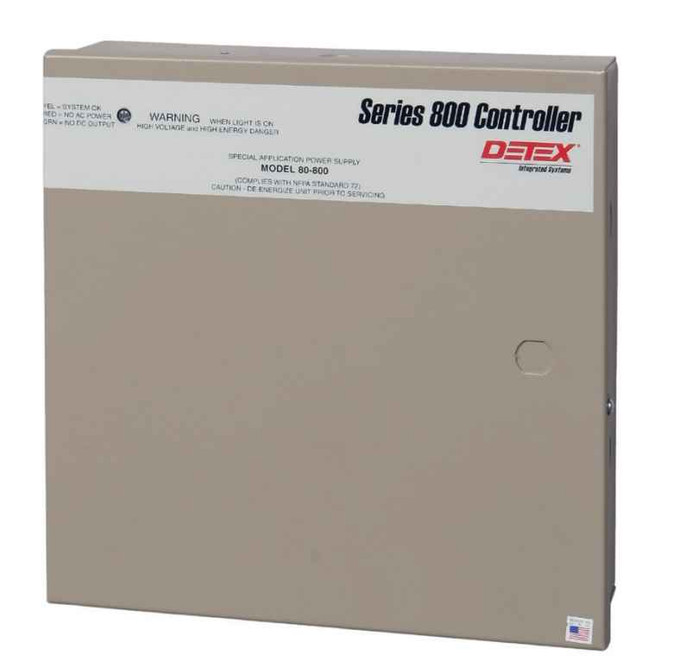

Detex 800 Series Electronic Access Control Power Supply with 2.0A Continuous Output and Dual Door Control

Detex 800 Series Electronic Access Control Power Supply with 2.0A Continuous Output and Dual Door Control

Professional Power Supply Solution for Electronic Access Control Systems

The Detex 800 Series logic and power supply controller converts 120VAC into regulated and filtered 24VDC, providing secure, consistent power to electrified door hardware accessories and access control components. This 2.0A continuous output unit powers and controls ER devices for 2 independent doors with signal output capability for 2 operators, making it ideal for dual-door access control installations requiring reliable power management.

Professional Features & Benefits

• Dual Door Control: Powers and controls ER devices for 2 independent doors with dedicated signal output for 2 operators for comprehensive access management.
• High-Capacity Power Output: 2.0A continuous current capacity provides reliable power for demanding electronic access control applications.
• Filtered and Regulated 24VDC: Converts 120VAC to stable 24VDC output with filtering and regulation to protect circuitry from power surges and spikes.
• Integrated Battery Charging: Built-in battery charging circuit included standard for backup power capability during outages (batteries sold separately).
• Operator Signal Output: Standard output signals automatic door operators for integrated access control and door automation systems.
• 800 Series Compatibility: Works with Detex latch retraction exit devices (ER Electrified option) and other compatible electronic access control components.
• Commercial-Grade Construction: Designed for commercial applications requiring dependable power supply performance in professional access control systems.

Technical Specifications

• Commercial/Residential: Commercial
• Current: 2A
• Electronic: Yes
• Product Category: Electronic Access Controls
• Product Group: Electronic Access Controls
• Product Model: 83-800
• Product Subgroup: Sensors, Switches, Relays and Timers
• Product Type: Power Supplies
• Series: 800 Series
• Subcategory: Power Supply

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm 120VAC input and ensure adequate circuit capacity for 2.0A continuous output before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the dual door application.
5. Configure operational settings including signal output connections for automatic door operators per application requirements.
6. Restore power and test all functions including normal operation, battery charging circuit, and integration with connected ER devices and door operators.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Retail Loss Prevention
• Healthcare Facility Access Control
• Educational Institution Safety Systems
• Industrial Facility Monitoring
• Multi-Door Access Control Installations
• Integrated Door Automation Systems

Why Choose Detex Quality?

Detex 800 Series power supply controllers deliver professional-grade reliability with filtered and regulated 24VDC output and integrated battery charging capability. The 2.0A continuous output capacity and dual door control functionality provide dependable performance for demanding commercial access control applications where consistent power management is essential.
