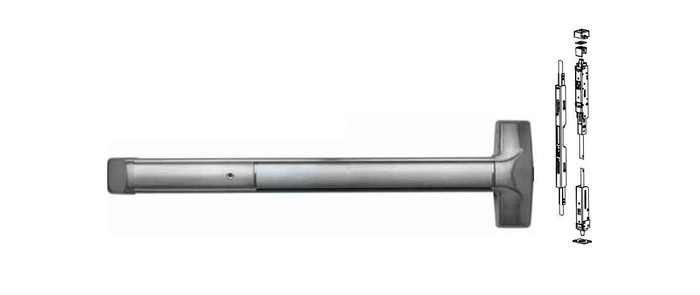

Detex Advantex 87 Series High Security Concealed Vertical Rod Exit Device with Electric Lock/Unlock

Detex Advantex 87 Series High Security Concealed Vertical Rod Exit Device with Electric Lock/Unlock

Professional High Security Exit Device Solution

The Detex Advantex 87 Series high security concealed vertical rod exit device combines architectural aesthetics with super-heavy-duty panic and fire exit hardware performance. Designed for hollow metal doors without a mullion, this Grade 1 device features patented mounting plate system technology and field-reversible operation for versatile commercial applications. The electric lock/unlock function provides enhanced access control integration capabilities.

Professional Features & Benefits

• Patented Deadlocking System: Top and bottom bolt assemblies feature patented deadlocking for enhanced security and consistent re-latching performance.
• 6-Position Multi-Step Action: Top latch keeps top and bottom bolts retracted until door closes, providing more consistent re-latching and security to door.
• Heavy-Duty Construction: Durable steel bottom drop bolt and tough design engineered for years of trouble-free service in high-use, high-abuse environments.
• Field-Reversible Design: Handed device can be field-reversed for flexible installation requirements and inventory management.
• Adjustable Strike System: Top strike fully adjustable both vertically and to accommodate a variety of varying weather strip thicknesses for precise fit.
• Easy Maintenance Access: Outside trims are easily changed or rekeyed without removing device from door for simplified service.
• Minimal Door Preparation: Patented mounting plate system ensures easiest and most accurate installation while saving time and money on door prep.
• Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

• Commercial/Residential: Commercial
• Grade: Grade 1
• Product Category: Exit Devices and Trim
• Product Function: Electric Lock/Unlock
• Product Group: Exit Devices and Trim
• Product Model: 87EUV
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Vertical Rod
• Series: 87 Series
• Stile: Wide (For Hollow Metal Doors)
• Stile Type: Wide Stile
• Subcategory: Advantex Series
• Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Installation & Operation

1. Verify electrical requirements match available power supply and confirm current capacity before proceeding with electric lock/unlock installation.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including any configurable options per application requirements.
6. Restore power and test all functions including normal operation, electric lock/unlock functions, and integration with connected systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Detex Quality?

Detex Advantex 87 Series exit devices deliver professional-grade reliability with durable steel construction and patented deadlocking technology rated for high-use, high-abuse environments. The comprehensive 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty provides exceptional coverage for demanding commercial applications. Engineered for demanding commercial applications where dependable performance and enhanced security are essential.
