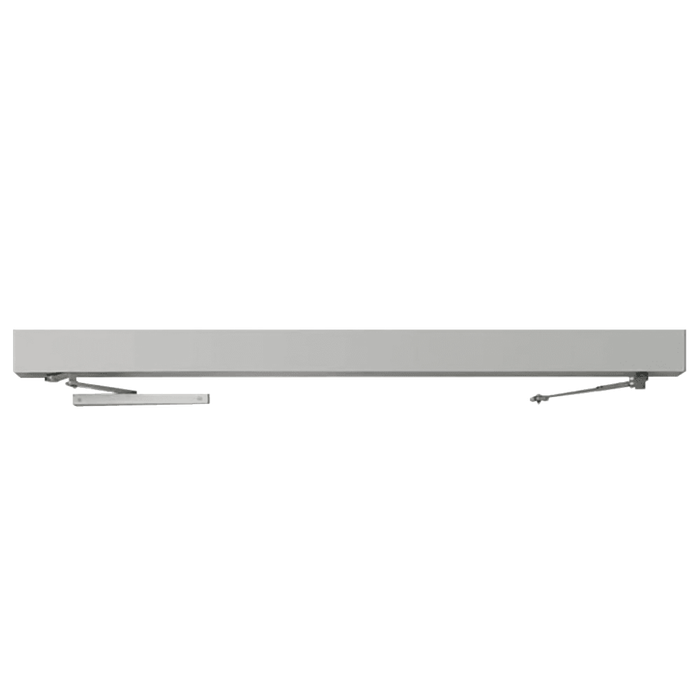

Detex AO19-3 Series Low Energy Automatic Door Operator for Double Egress Applications with 115VAC Power

Detex AO19-3 Series Low Energy Automatic Door Operator for Double Egress Applications with 115VAC Power

(No reviews yet) Write a Review

Model: AO19-3x LH 75.5 AL
$9,568.24
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$9,568.24
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex AO19-3 Series Low Energy Automatic Door Operator for Double Egress Applications with 115VAC Power

Heavy-Duty Low Energy Automatic Door Operator Solution

The Detex AO19-3 Series Low Energy Automatic Door Operator delivers professional-grade automated access control for double egress door applications. This heavy-duty operator features 115VAC power with plug-in mounting in the header and meets ANSI/BHMA A156.19 standards for Power Assist and Low Energy Power Operated Doors. Designed for medium to high-traffic commercial environments, the AO19-3 provides ADA compliant access with advanced safety features and adjustable operation modes.

Professional Features & Benefits

  • Heavy-Duty Construction: Built for high use and high abuse applications with reduced service calls through robust engineering and quality components.
  • 115VAC Power Operation: Convenient plug-in power mounting in header with single voltage source requirement for simplified electrical installation.
  • ADA Compliance: Meets American Disabilities Act requirements providing safe and easy access for handicap applications in commercial settings.
  • ANSI/BHMA A156.19 Certified: Complies with American National Standard for Power Assist and Low Energy Power Operated Doors for professional installations.
  • Reverse on Obstruction Safety: Automatically stalls door during closing cycle and re-activates to open when obstruction is sensed before latch position for enhanced safety.
  • Push & Go Activation: Handicap-accessible feature activates when door is manually pushed to open, providing intuitive operation for users with mobility challenges.
  • Electric Lock Integration: Built-in electric lock relay provides adjustable delay before door opens to unlock electric strikes, maglocks, or other electric locking devices.
  • Manufacturer Warranty: 3 Year Mechanical / 1 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

  • ADA Compliant: Yes
  • Commercial/Residential: Commercial
  • Duty Level: Heavy-Duty
  • Product Category: Door Controls
  • Product Group: Door Controls
  • Product Model: AO19-3
  • Product Subgroup: Door Controls
  • Product Type: Door Controls
  • Series: AO19 Series
  • Subcategory: Automatic Operators
  • Warranty: 3 Year Mechanical / 1 year Electrical Limited Manufacturer's Warranty

Installation & Operation

  1. Verify electrical requirements match available power supply. Confirm 115VAC capacity and ensure proper electrical safety procedures before proceeding.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the unit in the header location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
  5. Configure operational settings including reverse on obstruction, Push & Go activation, power close, and electric lock relay timing per application requirements.
  6. Restore power and test all functions including normal operation, obstruction detection, manual activation, and integration with electric locking devices.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Building Security Systems
  • Healthcare Facility Access Control
  • Educational Institution Safety Systems
  • Retail Establishments
  • Government and Municipal Buildings
  • Industrial Facility Access Points
  • Multi-Tenant Residential Properties

Why Choose Detex Quality?

Detex AO19-3 Series automatic door operators deliver professional-grade reliability with heavy-duty construction engineered for high use and high abuse commercial applications. The 3 Year Mechanical / 1 year Electrical Limited Manufacturer's Warranty provides comprehensive coverage for demanding installations. Built to ANSI/BHMA A156.19 standards with ADA compliance, these operators ensure dependable automated access control where safety and accessibility are essential.



Resources

Installation Instructions (English)
Push Motor/Gearbox Repair Manual
Pull Motor/Gearbox Repair Manual
Parts List
Installation Video

Product Specs

Subcategory:
Automatic Operators
Series:
AO19 Series
Product Group:
Door Controls
Product Subgroup:
Door Controls
Product Type:
Door Controls
Commercial/Residential:
Commercial
ADA Compliant:
Yes
Warranty:
3 Year Mechanical / 1 year Electrical Limited Manufacturer’s Warranty
Duty Level:
Heavy-Duty
Product Model:
AO19-3
Product Category:
Door Controls
Department:
Door Hardware

Detex AO19-3x LH 75.5 AL – Frequently Asked Questions

1) Will the Detex AO19-3 operator work on a double egress pair, where one leaf swings in and the other swings out?
That is exactly what the AO19-3 is built for. It is a low energy automatic operator configured for double egress openings, so both leaves get powered operation on a pair that swings opposite directions. You pick Independent, where each door operates on its own, or Simultaneous, where both leaves run together. Independent is the usual choice for a corridor pair where traffic uses one leaf at a time; Simultaneous suits an opening where the full clear width is needed on every cycle.
2) What door width do I order the Detex AO19-3 automatic operator for?
Three door width options are offered: 75.5 inches, 92 inches, and 100 inches. Measure the full opening across the pair, frame to frame, not a single leaf, and order the option that covers it. The header assembly is sized to the opening, so this is the one dimension you cannot change after the unit ships.
3) What arm do I order for the Detex AO19-3 if my door sits in a deep reveal or I am short on headroom?
Three arm and mounting options cover this. Standard handles a normal reveal. The Deep option is built for an 11 inch reveal on a push type door, which is what you want when the header sets well back from the door face. The Flat Arm substitution buys 1-3/4 inches of additional headroom at the top of the door, so it is the answer when a transom, a soffit, or a low ceiling leaves you tight above the leaf. Measure the reveal and the clearance above the door before you pick.
4) What power does a Detex AO19-3 automatic operator need at the header?
115VAC, single voltage source, plugged in at the header. There is no separate low voltage transformer to run, so the electrical rough-in is one circuit to the header location with enough clearance behind the cover for wiring, ventilation, and later service access. Confirm the circuit capacity before the header goes up.
5) Can I tie a maglock or electric strike into a Detex AO19-3 operator so the door unlocks before it opens?
Yes. The operator has a built-in electric lock relay with an adjustable delay, so it releases an electric strike, maglock, or other electric locking device and waits before driving the door open. That delay is what keeps the motor from fighting a lock that has not dropped yet. The locking device and its own power still get ordered separately.
6) What happens if someone walks into the door while a Detex AO19-3 is closing?
The operator stalls the door during the closing cycle and re-activates to open when it senses an obstruction before latch position. Push and Go is the other side of that behavior: push the leaf manually and the operator takes over and completes the opening, which is how most people with a cart or a wheelchair end up using it rather than hitting an actuator.
7) What finishes does the Detex AO19-3 operator header come in?
Two: AL aluminum and BZ dark bronze. On a fleet of openings the header is a visible band across the top of the frame, so match it to the existing storefront or frame finish rather than to the door hardware. Both finishes are offered across the width and arm choices.
8) Is the Detex AO19-3 operator rated for a high traffic building, or is it a light duty unit?
Heavy-Duty, commercial only. Detex builds the AO19 series for high use and high abuse openings, which is the reason it turns up in hospitals, schools, municipal buildings, and multi-tenant residential where a light duty operator gets torn up in a year. It is not a residential product.
9) Where do I get wiring diagrams and a parts breakdown for a Detex AO19-3 operator?
Detex publishes the full set for the AO19-3: installation instructions in English, a parts list, and separate repair manuals for the push motor/gearbox and the pull motor/gearbox. Programming the reverse on obstruction, Push and Go, power close, and electric lock relay timing is done from those instructions after the unit is powered up. For a maintenance shop stocking spares, the two gearbox manuals are the ones worth having on file.
