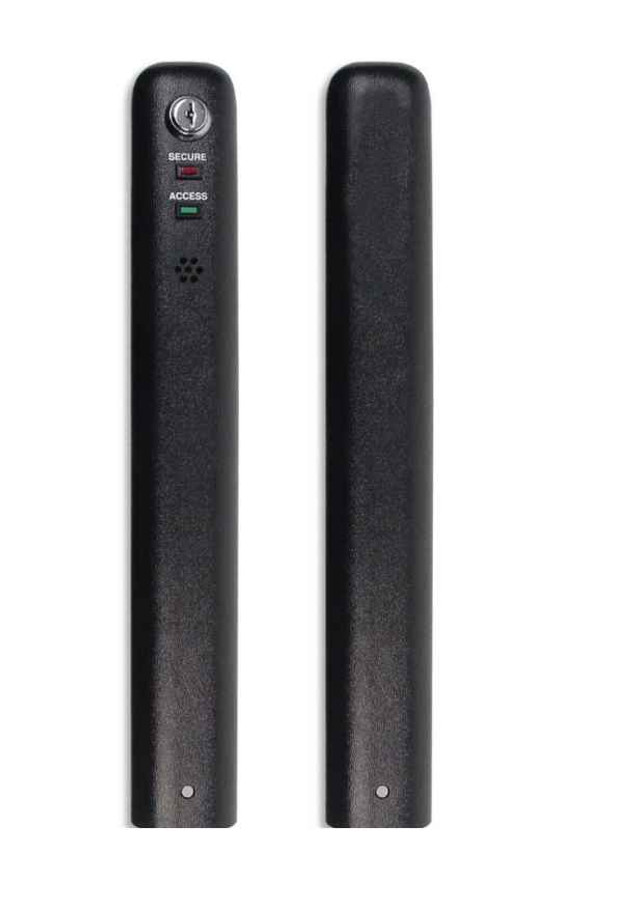

Detex AT-5600 Series Tailgate Detection System with Digital Voice Alarm and 3 Second Standard Message

Detex AT-5600 Series Tailgate Detection System with Digital Voice Alarm and 3 Second Standard Message

(No reviews yet) Write a Review

Model: AT-5600-R0

In Stock (leaves warehouse same day if ordered before 3pm ET)

$8,505.96
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex AT-5600 Series Tailgate Detection System with Digital Voice Alarm and 3 Second Standard Message

Advanced Optical Security System for Unauthorized Entry Prevention

The Detex AT-5600 Series Tailgate Detection System ensures only one individual enters a secured doorway for each authorized card read, using unique algorithms and infrared sensor beams to detect tailgating attempts. This cost-effective optical security system is compatible with most card reader technologies and easily retrofits to existing access control systems. The system features a 3 second fixed time alarm with auto reset, mounts on standard door frames up to 80" width, and includes integrated door prop alarm functionality for comprehensive security coverage.

Professional Features & Benefits

  • Advanced Detection Technology: Unique algorithms and infrared sensor beams provide reliable tailgate detection for enhanced security in restricted areas.
  • Digital Voice Alarm System: Local digital voice annunciator provides immediate notification of unauthorized access attempts with 3 second fixed time alarm and auto reset functionality.
  • Universal Compatibility: Compatible with most access control systems and card reader technologies for easy retrofit installation and integration.
  • Flexible Installation Options: Mounts on standard width door frames or walls with maximum 80" width capacity, includes spacer mounting kit for wiring management.
  • Comprehensive Security Features: Integrated door prop alarm, tamper switch protection, and alarm status relay for remote annunciation provide multi-layered security.
  • ADA Compliant Design: Meets accessibility requirements while maintaining high throughput for authorized personnel entry and exit.
  • Field Configurable Operation: Adjustable access period with card in/card out or card in/free exit operation modes for application flexibility.
  • Manufacturer Warranty: 3 Year Limited Manufacturers Warranty for reliable long-term performance and protection.

Technical Specifications

  • ADA Compliant: Yes
  • Commercial/Residential: Commercial
  • Electronic: Yes
  • Product Category: Electronic Access Controls
  • Product Group: Electronic Access Controls
  • Product Model: AT-5600
  • Product Subgroup: Sensors, Switches, Relays and Timers
  • Product Type: Tailgate Detection Systems
  • Series: AT-5000 Series
  • Subcategory: Anti-Tailgate Detection System
  • Warranty: 3 Year Limited Manufacturers Warranty

Installation & Operation

  1. Verify electrical requirements and confirm adequate power supply capacity for the detection system and voice alarm components.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the unit on standard door frame or wall ensuring maximum 80" width clearance and adequate access for wiring connections and future service.
  4. Route and connect wiring according to manufacturer wiring diagrams using the included spacer mounting kit as a raceway. Connect to access control system and card reader per specifications.
  5. Configure operational settings including card in/card out or card in/free exit modes, adjustable access period, and alarm reset options per application requirements.
  6. Restore power and test all functions including tailgate detection sensitivity, digital voice alarm operation, door prop alarm, tamper switch, and integration with connected access control systems.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Employee Entrance Security Systems
  • Computer Room Access Control
  • Bank Vault Security Applications
  • Dormitory Entrance Monitoring
  • Restricted Area Access Control
  • Healthcare Facility Security Systems
  • Government and Municipal Building Access

Tamper-Resistant Design

The AT-5600 includes integrated tamper switch protection to detect unauthorized attempts to disable or bypass the detection system. This feature ensures continuous security monitoring and provides immediate notification of tampering attempts to maintain system integrity.

Why Choose Detex Quality?

Detex AT-5600 Series tailgate detection systems deliver professional-grade security with advanced infrared sensor technology and unique detection algorithms for reliable performance in demanding commercial applications. The 3 Year Limited Manufacturers Warranty provides confidence in long-term reliability. Engineered for seamless integration with existing access control systems while maintaining ADA compliance and architectural aesthetics.



Resources

Installation Instructions
User Instructions

Product Specs

Subcategory:
Anti-Tailgate Detection System
Series:
AT-5000 Series
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Product Type:
Tailgate Detection Systems
Commercial/Residential:
Commercial
Electronic:
Yes
ADA Compliant:
Yes
Warranty:
3 Year Limited Manufacturers Warranty
Product Model:
AT-5600
Product Category:
Electronic Access Controls
Department:
Door Hardware

Detex AT-5600-R0 – Frequently Asked Questions

1) Will a Detex AT-5600 tailgate detector fit our existing door frame, and is there a width limit?
The AT-5600 mounts on standard width door frames or on the adjacent wall, with a maximum opening width of 80 inches. Anything wider than 80 inches is outside what the infrared beam array covers, so a wide vestibule or a double-door opening beyond that width needs a different approach.
2) Can we add tailgate detection to the card access system we already have, or do we have to replace the readers?
No reader replacement. The AT-5600 is built to retrofit onto existing access control and is compatible with most card reader technologies, so it wires in alongside the reader you already run. It ties into the access control system per the wiring diagrams in the Detex installation instructions.
3) What is the difference between the Spacer Kit yes and no options on the AT-5600?
The spacer mounting kit acts as a raceway for the wiring behind the unit. Order it when you are surface mounting and have no concealed path for conductors, which is the usual case on an existing frame or a masonry wall. If the frame is already prepped and wire can be pulled inside it, the no-spacer version is what you want.
4) Which status indicator mounting plate should I order with the AT-5600, single-gang or mullion?
Three choices: a single-gang mounting plate, a mullion mounting plate, or no indicator at all. Pick single-gang where the indicator lands in a standard electrical box beside the opening. Pick mullion where it mounts on the narrow vertical member between a pair of doors or on a storefront mullion, which is too narrow for a single-gang plate. Choose No if the alarm annunciation and status relay are enough and you do not need a visible indicator at the door.
5) How long does the AT-5600 alarm sound, and does someone have to reset it?
The alarm runs a 3 second fixed time voice message and then auto resets. Nobody has to walk to the door with a key or push a reset button, which is why it suits an unattended employee entrance or a dorm door where staff are not standing by.
6) Does a tailgate detector like the AT-5600 also catch a door left propped open?
Yes, door prop alarm is integrated into the AT-5600, so you get propped-door annunciation from the same unit rather than adding a separate door position monitor. It also carries a tamper switch to flag attempts to disable the detector.
7) Can our security office get notified when the tailgate alarm trips, or is it only audible at the door?
Both are possible. The digital voice annunciator sounds locally at the opening, and an alarm status relay is provided for remote annunciation, so you can carry the signal back to a head end, panel, or guard station.
8) Will a tailgate detection system at the entry create an accessibility problem for our building?
The AT-5600 is ADA compliant, and it is an optical detector, so it does not add a turnstile, gate, or physical restriction in the path of travel. Authorized users keep moving at normal throughput.
9) Does the AT-5600 monitor people leaving as well as entering?
That is a field setting. The unit configures for card in / card out, where a credential is required in both directions, or card in / free exit, where egress is unrestricted. The access period is also adjustable, so you can widen the window for a slower-moving population or tighten it on a high security room.
10) What does the AT-5600 actually do differently from a standard card reader and door contact?
A reader confirms a valid credential; it cannot tell how many people walked through on that read. The AT-5600 uses infrared sensor beams and detection algorithms to count passage against the authorized read, so a second person following on one card triggers the voice alarm. Pair it with the reader you already have rather than treating it as a replacement.
11) Is the Detex AT-5600 suitable for a residential apartment entry, or is it a commercial-only product?
It is a commercial product. Detex lists the AT-5600 as commercial, and the intended applications are employee entrances, computer rooms, bank vaults, dormitory entrances, healthcare facilities, and government buildings. A single-family or small residential entry is not what it is built around.
