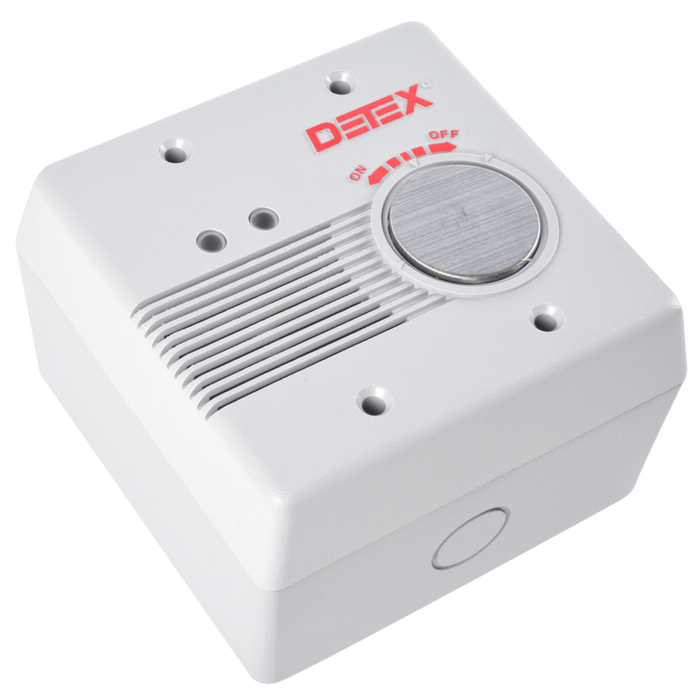

Detex CS900/2900 Series Remote Alarm with 100dB Alert and Battery Backup

Detex CS900/2900 Series Remote Alarm with 100dB Alert and Battery Backup

(No reviews yet) Write a Review

Model: CS940F
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$295.09
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex CS900/2900 Series Remote Alarm with 100dB Alert and Battery Backup

Professional Remote Alarm System for Exit Control Applications

The Detex CS900/2900 Series Remote Alarm provides reliable secondary alerting when triggered by door switches or other alarm systems. This commercial-grade remote alarm delivers a powerful 100dB alert signal with automatic reset functionality and optional battery backup capability in the 2900 Series. Available in both flush mount and surface mount configurations with integrated LED visual indication for comprehensive alarm notification.

Professional Features & Benefits

  • High-Output Alert: 100dB alarm provides clear audible notification when triggered by main alarm systems for effective emergency response.
  • Automatic Reset Function: Silencing the main alarm automatically resets the remote alarm for simplified operation and reduced maintenance requirements.
  • Flexible Mounting Options: Available in flush mount (suffix F) or surface mount (suffix S) configurations to accommodate various installation requirements.
  • Visual Alert Integration: Red LED lights up when alarm sounds providing both audible and visual notification for enhanced awareness.
  • Battery Backup Protection: 2900 Series includes battery backup capability ensuring continued operation during power interruptions.
  • Remote Activation Capability: Designed to sound alarm when signal is sent from door switch or another alarm system for coordinated security response.
  • Commercial-Grade Construction: Engineered for demanding commercial applications where reliable alarm notification is essential.

Technical Specifications

  • Commercial/Residential: Commercial
  • Product Category: Exit Devices and Trim
  • Product Group: Exit Devices and Trim
  • Product Model: CS900
  • Product Subgroup: Exit Control Locks and Alarms
  • Product Type: Timers and Alarms
  • Series: CS900
  • Subcategory: Remote Alarm

Installation & Operation

  1. Verify electrical requirements and confirm compatibility with existing alarm system or door switch trigger source.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the unit in the specified location using flush mount (suffix F) or surface mount (suffix S) configuration ensuring adequate clearance for wiring access and future service requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams connecting trigger signal from door switch or main alarm system.
  5. Configure operational settings and verify proper signal reception from trigger source per application requirements.
  6. Restore power and test all functions including 100dB alarm activation, LED visual indication, and automatic reset functionality with main alarm system.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Building Security Systems
  • Educational Institution Safety Systems
  • Healthcare Facility Access Control
  • Industrial Facility Monitoring
  • Retail Loss Prevention
  • Emergency Exit Compliance
  • Multi-Tenant Residential Properties

Why Choose Detex Quality?

Detex CS900/2900 Series Remote Alarms deliver professional-grade reliability with 100dB alert capability and automatic reset functionality engineered for demanding commercial applications. The 2900 Series battery backup protection ensures continued operation during power interruptions while flexible mounting options accommodate various installation requirements. Designed for dependable performance where coordinated alarm notification is essential.

Manufacturer Resources

Product Specs

Subcategory:
Remote Alarm
Series:
CS900
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Control Locks and Alarms
Product Type:
Timers and Alarms
Commercial/Residential:
Commercial
Product Model:
CS900
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex CS940F – Frequently Asked Questions

1) What is the difference between the Detex CS940 and CS2940 remote alarm?
Power is the whole difference. The CS940 runs on a 9VDC battery alone. The CS2940 is externally powered, comes with an AC adapter, and keeps a 9VDC battery as backup so the alarm still sounds if building power drops. If the unit is going somewhere without a nearby outlet or you don't want to pull power, the CS940 is the one. For anything where a dead battery cannot be allowed to take the alert offline, spec the CS2940.
2) Should I order the flush mount or surface mount Detex CS900 remote alarm?
The suffix decides it. F is flush mount, which needs a wall cavity or box cut in for the body to sit inside. S is surface mount, which screws to the face of finished wall or block and needs no cutting. On existing masonry, tile, or anywhere you can't open the wall, take the S version. All four device models come both ways: CS940F, CS940S, CS2940F, CS2940S.
3) Does the Detex CS900 remote alarm need a key cylinder ordered with it?
No cylinder is required on any of the CS900/2900 remote alarms. They're secondary annunciators, not exit control locks, so there is nothing to key and nothing to add to your keying schedule. Silencing the main alarm resets the remote automatically, which is why there's no key reset on the unit itself.
4) Will a Detex remote alarm work on its own as a door alarm?
It won't. The CS900/2900 is a remote annunciator: it sounds only when a signal is sent to it from a door switch or another alarm system. There is no door contact or exit device sensing built in. If you need the alarm on the door itself, you want a Detex exit control lock or alarmed exit device as the primary, and this unit as the second sounder down the hall or at a manned desk.
5) How loud is the Detex CS900 remote alarm, and will staff hear it away from the door?
100dB. That carries through a corridor or across an open retail floor, which is the point of putting one at a front desk or security office while the primary alarm sits on the exit door. A red LED lights when it sounds, so it also registers in a noisy back-of-house or where staff are wearing hearing protection.
6) Does someone have to reset the Detex remote alarm after it sounds?
Not at the remote. Silencing the main alarm resets the remote automatically, so the only trip anyone makes is to the door where the alarm originated. That matters on a multi-tenant or school property where the annunciator is in an office and the door is three floors away.
7) What do I need to have in place before installing a Detex CS2940 remote alarm?
Three things. A trigger source, meaning a door switch or a main alarm system that can send it a signal. A wiring path from that source to the unit. And for the CS2940, a power point for the AC adapter that ships with it, plus a 9V battery seated for backup. The CS940 skips the power run entirely and works from the battery, so on that version you only need the trigger wiring. Flush mount also needs the wall opened up; surface mount does not.
8) Is the Detex CS900 remote alarm suitable for a commercial building, or is it a residential product?
Commercial grade. It's built for the sort of jobs where a second annunciation point is required: schools, hospitals, industrial plants, retail loss prevention, and multi-tenant residential buildings where the exit door and the person who needs to hear about it aren't in the same place.
