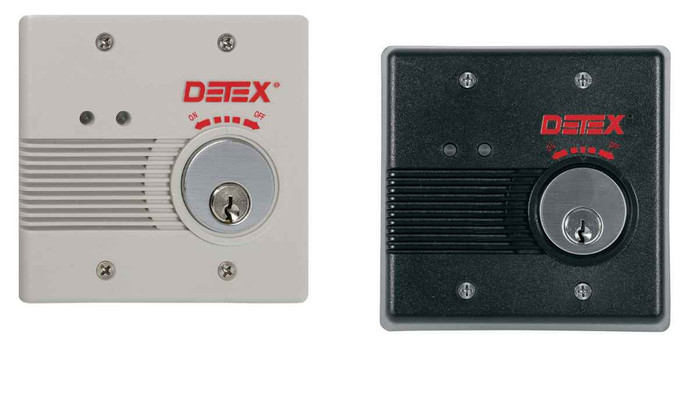

Detex EAX-2500F Flush Mount AC/DC Exit Alarm with 100dB Output

Detex EAX-2500F Flush Mount AC/DC Exit Alarm with 100dB Output

Professional Hardwired Exit Control Solution

The Detex EAX-2500F Series provides reliable exit alarm protection for secure doors requiring hardwired AC/DC operation. This flush mount exit alarm delivers approximately 100dB output to alert personnel of unauthorized exit attempts. Designed to fit standard 4"x4" outlet boxes, the EAX-2500F offers quick installation with field-selectable features for customized operation in commercial security applications.

Professional Features & Benefits

• High-Output Alert System: Approximately 100dB alarm output provides clear audible notification of unauthorized exit attempts for effective security monitoring.
• Compact Installation Design: Smaller size designed to fit in standard 4"x4" outlet box enables quick and easy installations on emergency exit and restricted doors.
• Field-Selectable Configuration: Customer-configurable status indicators and auto rearm options allow customization for specific application requirements.
• Patented Cylinder Adjustment: Cam assembly automatically adjusts for different size cylinders without requiring spacers for versatile installation compatibility.
• Flexible Power Options: Hardwired AC/DC operation with low battery alert feature that is field selectable for reliable power management.
• Tamper-Resistant Protection: Tamper resistant housing and cover protects internal electronics from unauthorized access or damage.
• Extended Bypass Function: Allows alarm to remain silenced when door is open and automatically rearm upon closing for operational convenience.
• Silent Arming Capability: Field selectable silent arming feature provides discreet activation options for security applications.

Technical Specifications

• Commercial/Residential: Commercial
• Product Category: Exit Devices and Trim
• Product Group: Electronic Access Controls
• Product Model: EAX-2500F
• Product Subgroup: Exit Control Locks and Alarms
• Product Type: Exit Alarms
• Series: EAX-2500
• Subcategory: Exit Alarm

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm AC/DC power capacity before proceeding with hardwired installation.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified 4"x4" outlet box location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the hardwired AC/DC application.
5. Configure operational settings including field-selectable status indicators, auto rearm options, low battery alert, and silent arming features per application requirements.
6. Restore power and test all functions including normal operation, 100dB alarm output, bypass functions, and auto rearm capabilities.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Emergency Exit Compliance Monitoring
• Retail Loss Prevention
• Healthcare Facility Access Control
• Educational Institution Safety Systems
• Industrial Facility Security
• Government and Municipal Buildings

Tamper-Resistant Design

The EAX-2500F features tamper resistant housing and cover that protects internal electronics from unauthorized access or tampering attempts. This security-focused design ensures reliable operation and prevents compromise of the alarm system in sensitive applications.

Why Choose Detex Quality?

Detex EAX-2500F exit alarms deliver professional-grade reliability with tamper-resistant construction and patented cam assembly technology for demanding commercial security applications. Field-selectable features and 100dB output capability provide the flexibility and performance required for effective exit control monitoring. Engineered for dependable operation in applications where unauthorized exit detection is essential.
