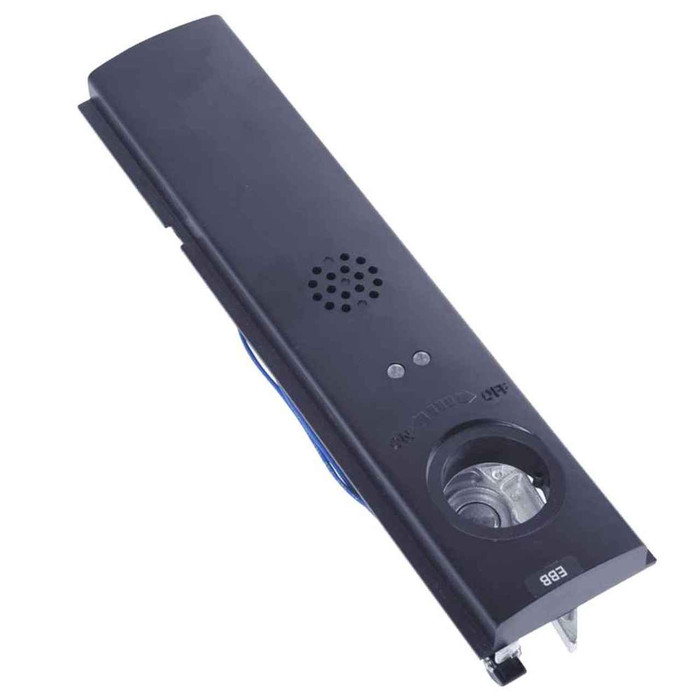

Detex - SIF CD Cylinder Dogging Slide-in Filler Kit, Advantex 36in

Detex SIF-CD Cylinder Dogging Slide-in Filler Kit for Advantex 36" Exit Devices

(No reviews yet) Write a Review

Model: DTXSIF-CD36-630
Selected Finishes is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$182.69
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex SIF-CD Cylinder Dogging Slide-in Filler Kit for Advantex 36" Exit Devices

Professional Cylinder Dogging Enhancement Component

The Detex SIF-CD Cylinder Dogging Slide-in Filler Kit is a specialized component engineered to enhance the functionality of Advantex exit devices. This 36-inch slide-in filler kit facilitates the integration of cylinder dogging mechanisms for controlled latching and unlatching of exit devices. Specifically designed for Advantex series compatibility, this kit requires a mortise cylinder equipped with a standard Yale cam and offers optional factory-installed cylinder housing for 7-pin interchangeable core (IC) cylinders.

Professional Features & Benefits

  • Device Compatibility: Designed for 36-inch wide devices, accommodating standard door sizes in commercial settings for versatile installation options.
  • Advantex Series Integration: Specifically engineered for use with Advantex exit devices, ensuring seamless integration and optimal performance.
  • Cylinder Configuration Options: Requires mortise cylinder equipped with standard Yale cam (sold separately) with optional factory-installed cylinder housing for enhanced security flexibility.
  • Interchangeable Core Compatibility: Optional configuration supports 7-pin interchangeable core (IC) cylinders, providing flexibility in security configurations for master key systems.
  • Controlled Access Function: Facilitates cylinder dogging mechanisms for controlled latching and unlatching of exit devices in high-security applications.
  • Commercial-Grade Construction: Engineered for demanding commercial applications including high-traffic areas and institutional facilities.

Technical Specifications

  • Product Category: Exit Device Parts
  • Product Group: Exit Devices and Trim
  • Product Subgroup: Exit Devices - Vertical Rod
  • Product Type: Exit Devices - Vertical Rod
  • Series: Advantex
  • Subcategory: Panic Devices & Exit Alarms

Installation & Operation

This component is designed for use with compatible Advantex exit devices. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex cylinder dogging components deliver professional-grade reliability with specialized engineering for Advantex exit device integration. Designed for demanding commercial applications where controlled access and dependable performance are essential, this slide-in filler kit provides the flexibility needed for complex security configurations.

Manufacturer Resources

Product Specs

Subcategory:
Panic Devices & Exit Alarms
Product Type:
Exit Devices - Vertical Rod
Series:
Advantex
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Vertical Rod
Product Category:
Exit Device Parts
Department:
Door Hardware

Detex DTXSIF-CD36-630 – Frequently Asked Questions

1) What is the Detex SIF-CD slide-in filler kit for, and do I need one on my Advantex exit device?
The SIF-CD is the cylinder dogging slide-in filler kit for Detex Advantex exit devices. It's the part that lets you add key-controlled dogging, so a cylinder holds the pushbar depressed and the latch retracted for daytime free passage, then releases it back to latching. You only need it if you want cylinder dogging on an Advantex device. It's a component for that device, not an exit device on its own, so it does nothing without an Advantex to go into.
2) Which cylinder do I order with the Detex SIF-CD dogging kit?
A mortise cylinder with a standard Yale cam, and it is not included, so it goes on the order separately. If you run interchangeable core, the kit can be had with a factory-installed cylinder housing for 7-pin IC cylinders, which is what lets the dogging key fall into an existing master key system. Specify the IC housing at order time; it isn't something added later in the field.
3) Will the Detex SIF-CD filler kit fit a 48 inch Advantex device, or only a 36 inch one?
Both. The SIF-CD cylinder dogging filler kit is ordered by device width, 36 inch or 48 inch, and the filler has to match the width of the Advantex device it goes into. Measure the device, not the door opening, before you pick the size.
4) Can I put a Detex SIF-CD cylinder dogging kit on a Von Duprin or Marks USA vertical rod exit device?
No. The SIF-CD is built for the Detex Advantex series and nothing else. A Von Duprin 8827 wide stile surface vertical rod device or a Marks USA M9900VR takes that manufacturer's own dogging arrangement, not a Detex filler kit. If you want cylinder dogging on a non-Detex device, order it through that device's own options rather than trying to adapt this part.
5) Can I dog an exit device on a fire rated opening?
No. Mechanical or cylinder dogging is not permitted on a fire rated exit device; the latch has to stay active so the door latches every time. That rules out the dogging kit anywhere a fire door assembly is required. If the opening is fire rated, the device itself has to be a fire rated model, such as the Marks USA M9900FVR or the Delaney F9100 Series, and it is ordered without dogging. Save the cylinder dogging for non-rated openings where you want free passage during business hours.
6) Can a Von Duprin 8827-3FT be used in place of the Detex SIF-CD cylinder dogging filler kit?
No. The SIF-CD is a slide-in filler kit that adds cylinder dogging to an Advantex exit device already on the door, and it requires a mortise cylinder with a standard Yale cam. The Von Duprin 8827-3FT is a complete wide stile surface vertical rod exit device, 3 ft, Grade 1, from the 88 Series, fitted for 1-3/4 inch doors. If the Advantex device stays on the opening and only cylinder dogging is being added, the SIF-CD is the part; if the whole device is being replaced, the 8827-3FT is a full device and the SIF-CD does not fit it.
7) What is the alternative if a 36 inch opening needs a fire rated vertical rod exit device rather than added cylinder dogging?
Cylinder dogging is not used on fire rated openings, and the SIF-CD kit is an add-on for Advantex devices rather than a device itself. For a 36 inch by 84 inch fire rated opening, the Marks USA M9900FVR is a fire rated vertical rod exit device, exit only and non-handed, and the Delaney F9100 Series DLY-694300 is a Grade 1 fire rated heavy duty vertical rod device for a 36 inch by 84 inch door in aluminum finish.
8) What finishes does the Detex SIF-CD dogging kit come in, and can I match it to my existing Advantex hardware?
Three: 630 satin stainless steel, 693 black painted, and 695 dark bronze. All three are offered in both the 36 inch and 48 inch device sizes, so a property manager standardizing a run of openings can match the filler to whatever finish the Advantex devices already carry on the building.
9) Cylinder dogging versus hex key dogging on an exit device, which should I specify?
Cylinder dogging, which is what the Detex SIF-CD kit provides on an Advantex device, means the pushbar is held down and released with a keyed mortise cylinder, so only someone carrying the key can put the door into free passage. Hex key dogging uses a common allen wrench, which anyone with a hardware store hex set can operate. On a school, a healthcare corridor, or a multi-tenant building where you do not want staff or the public dogging doors open unsupervised, cylinder dogging is the one to specify, and it keys into the same system as the rest of your hardware when you order it with the 7-pin IC housing.
10) I'm replacing a whole Detex Advantex exit device, not just adding dogging. What are my options?
The SIF-CD is only the dogging filler component, so it won't replace a device. For a full surface vertical rod device on a 36 by 84 opening, ZenSupply carries the Von Duprin 8827-3FT wide stile Grade 1, the Imperial USA ED-VR531 wide stile Grade 1, the Marks USA M9900VR exit only, the Delaney 9100 Series Grade 1 stainless, and the Cal-Royal 9860 Grade 1 heavy duty. On 48 inch doors, the Marks USA M9900VR 48 by 84 covers it. Check stile width first: the Von Duprin 8827 and the Imperial ED-VR531 are wide stile devices, so they need a wide stile door, and the Von Duprin is listed for 1-3/4 inch door thickness.
11) Does the Detex SIF-CD kit come with a keyed cylinder, or is that a separate line on the order?
No cylinder in the box. The kit takes a mortise cylinder with a standard Yale cam, bought separately, and you pick the keyway and keying to suit the building. Order the cylinder on the same purchase order or the device sits without a working dogging function until it shows up. If you want the interchangeable core route instead, specify the factory-installed 7-pin IC housing on the kit and then supply your own core.
12) Is the Detex SIF-CD an exit device or just a part?
Just a part. It is the slide-in filler kit that carries the cylinder dogging arrangement inside a Detex Advantex exit device. If a distributor or a purchasing agent orders SIF-CD expecting a panic device, they get a component with no chassis, no rods, and no pushbar. The device itself is a separate line item.
13) The doors are 48 inches wide. What vertical rod device covers that width, and does the same filler kit cover it?
The SIF-CD cylinder dogging slide-in filler kit is sold for both 36 inch and 48 inch Advantex devices, in 630 satin stainless steel, 693 black painted, and 695 dark bronze. For a 48 inch by 84 inch opening needing a complete device instead, the Marks USA M9900VR-48X84 is a 48 inch by 84 inch vertical rod panic exit device, exit only, and the Marks USA MARM9900F-VR is the 48 inch by 84 inch fire rated version, also exit only.
14) Is there a simpler way to get a vertical rod exit device without adding a keyed dogging kit on top?
The SIF-CD is a separate kit that adds cylinder dogging to an Advantex device and needs a mortise cylinder with a Yale cam bought separately, plus optionally a factory installed housing for a 7-pin interchangeable core. Where keyed dogging is not required at all, a standalone exit only device covers the opening in one part number: the Imperial USA ED-VR531 is a Grade 1 wide stile surface vertical rod exit device for 36 inch, exit only, and the Cal-Royal 9860 is a heavy duty Grade 2 surface vertical rod exit device, exit only.
15) Which non-fire-rated Grade 1 vertical rod devices fit a 36 by 84 door if the Advantex device is being replaced instead of upgraded?
Replacing the device rather than adding the SIF-CD kit to it brings several Grade 1 options for a 36 inch by 84 inch door: the Delaney 9100 Series DLY-692301 is a Grade 1 heavy duty vertical rod type device in stainless steel finish, the Delaney 8100 Series DLY-8100-3684 is a Grade 1 vertical rod type device, and the Imperial USA ED-VR531 is a Grade 1 wide stile surface vertical rod device, exit only. All three are non fire rated, so confirm the opening is not a rated assembly.
