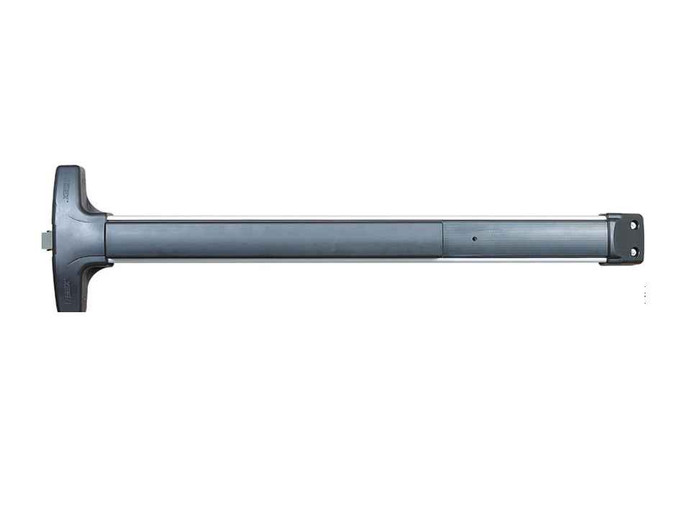

Detex V40 Series Wide Stile Rim Exit Device, Dummy Pull Trim

Detex V40 Series Wide Stile Rim Exit Device, Dummy Pull Trim

(No reviews yet) Write a Review

Model: V4002AN-628-36
$661.00
$655.21
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$661.00
$655.21
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex V40 Series Wide Stile Rim Exit Device with Dummy Pull Trim

Grade 1 Commercial Exit Hardware with Economical Value

The Detex V40 Series Wide Stile Rim Exit Device delivers Grade 1 panic and fire exit hardware performance at an economical price point. This secure and durable exit device features a stainless steel 3/4" deadlocking Pullman-type latch bolt and withstands over 1400 pounds of static pull force for enhanced security. The patented mounting plate and strike locator system ensures accurate installation while the modular design accepts a variety of outside trims and functions.

Professional Features & Benefits

  • Heavy-Duty Security Performance: Withstands over 1400 pounds of static pull force with stainless steel 3/4" deadlocking Pullman-type latch bolt for superior security protection.
  • Grade 1 Certification: BHMA Grade 1 rated panic and fire exit hardware meets the highest commercial standards for durability and performance.
  • Patented Installation System: Mounting plate and strike locator system replaces paper templates for the easiest and most accurate installation available.
  • Wide Stile Compatibility: Designed for wide stile applications on single and double doors with mullions for versatile installation options.
  • Durable Construction: Heavy-duty ribbed aluminum rail extrusion with high impact ABS and anodized surfaces for long-lasting commercial performance.
  • Modular Design Flexibility: Accepts a variety of outside trims and functions with easily changeable or rekeyable outside trims without device removal.
  • Minimal Door Preparation: Covers a 161 door prep with field sizeable design and 1/8 turn hex key dogging for efficient installation.
  • Manufacturer Warranty: 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Grade: Grade 1
  • Product Category: Exit Devices and Trim
  • Product Function: Dummy Pull Trim
  • Product Group: Exit Devices and Trim
  • Product Model: V4002AN
  • Product Subgroup: Exit Devices - Rim
  • Product Type: Exit Devices - Rim
  • Series: V40 Series
  • Stile: Wide
  • Stile Type: Wide Stile
  • Subcategory: Value Series
  • Warranty: 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty
  • Wood Door Compatible: No

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex V40 Series exit devices deliver professional-grade reliability with heavy-duty ribbed aluminum rail extrusion and high impact ABS construction rated to withstand over 1400 pounds of static pull force. The 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty provides comprehensive coverage for demanding commercial applications. Engineered for demanding commercial applications where dependable Grade 1 performance and economical value are essential.



Resources

Installation Instructions
Parts List
Door Templates
Maintenance Manual
Installation Video

Product Specs

Subcategory:
Value Series
Series:
V40 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Commercial/Residential:
Commercial
Warranty:
10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
Grade:
Grade 1
Stile:
Wide
Stile Type:
Wide Stile
Wood Door Compatible:
No
Product Model:
V4002AN
Product Function:
Dummy Pull Trim
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex V4002AN-628-36 – Frequently Asked Questions

1) What does the dummy pull trim function on the Detex V4002AN actually do?
Dummy pull trim means the outside pull is fixed, with no latch retraction from outside. The V4002AN rim device latches with a stainless steel 3/4 inch deadlocking Pullman latch and releases only from the push side; the outside pull is there to grab the door once someone else opens it, or to pull it shut. If you need key access from outside, order a keyed function trim instead of the dummy pull.
2) Can I use this Detex device on a pair of doors?
Yes, on a pair with a removable mullion. The V40 is a rim device, so the latch throws into a strike on the frame or mullion, not into the head and sill. Detex states wide stile use on single doors and double doors with mullions. For a pair with no mullion you need a vertical rod device instead, such as the Hager 4501 concealed vertical rod wide stile device.
3) Will the Detex V40 fit my existing door prep from an old exit device?
It covers a 161 prep, which is the standard cylindrical lock prep, so a door that previously carried a cylindrical lockset or a device sized to 161 can take it without patching. The mounting plate and strike locator system replaces paper templates for locating the strike, and the rail is field sizeable so a 36 inch or 48 inch device can be cut to the door width.
4) Is the Detex V40 fire rated, and can I get a hurricane rated version?
Both are available. The V40 can be ordered non-rated, fire rated, hurricane rated, or hurricane and fire rated. Note that fire rated exit devices cannot be dogged, so on a fire door specify less dogging rather than hex or cylinder dogging.
5) Can I get the Detex V40 with electric dogging, delayed egress, or a request to exit switch?
Yes. Electrified options on the V40 are electric dogging, delayed egress, hardwired electric alarm, and request to exit (signal) switch, or none for a straight mechanical device. Electric dogging replaces the hex key for access control scheduling; delayed egress is for controlled perimeter doors; the RX switch reports that the pushbar was pressed.
6) My storefront door has a narrow stile. Can I use the Detex V40?
No. The V40 is a wide stile device, so it needs a door with enough stile face to mount the chassis and pushbar. On narrow stile aluminum storefront, go to a narrow stile rim device instead, such as the Adams Rite 8800 Series, the TownSteel ED3700, or the Corbin Russwin ED4200.
7) Can I put the Detex V4002AN on a wood door?
No. The Detex V4002AN is not wood door compatible. Among wide stile alternatives the Adams Rite 3700 Series 30 inch fire-rated rim device and the Adams Rite 8700 Series 30 inch rim device are both listed as wood door compatible, though both are narrow stile designs.
8) What is the closest wide stile Grade 1 rim exit device to the Detex V4002AN with dummy pull trim?
The Sargent 12-8810-LTRIM is the nearest match: it is a Grade 1 wide stile rim exit device with a dummy function and is fire rated. The Detex V4002AN is a Grade 1 wide stile rim device with dummy pull trim, and its rating is chosen per order across non-rated, fire rated, hurricane rated, and hurricane and fire rated builds, so a fire rated V4002AN and the Sargent 8800 both cover a labeled opening.
9) The Detex V4002AN has dummy pull trim. What do I order instead if I need keyed entry from the outside?
Dummy pull trim on the Detex V4002AN is a pull only and does not retract the latch from outside. For keyed outside access on a rim device, the Sargent 8504 is a Grade 1 narrow stile rim device in night latch function, and the Dormakaba E2103 with 4908A trim is an electrified 36 inch rim device in 08 classroom function.
10) What looks like a substitute for the Detex V4002AN but is not a rim exit device?
Several items sit near rim devices without being one. The Hager 4501 is a Grade 1 concealed vertical rod device with a wide stile pushpad and the Hager 4601 is a concealed vertical rod narrow stile device, both requiring vertical rod prep rather than a rim strike. The SDC MSB550 is a 36 inch mechanical switch bar for electromagnetic lock release and the SDC PSB560 is a 36 inch pressure sense bar, which are switch bars rather than latching exit devices. The Dexter ED1500-EXTRD-SP is a 12 inch extension rod assembly for ED1500 devices. The Detex V4002AN is a rim device using a 99 surface or 98 semi-mortise strike.
11) Is there a non-handed rim exit device I can use instead of specifying handing like the Detex V4002AN requires?
The Detex V4002AN is ordered as right hand reverse or left hand reverse. If you would rather stock one non-handed device, the Von Duprin 22-3FT is a Grade 1 non-handed 36 inch wide stile pushpad rim device for 1-3/4 inch doors, the BEST Precision 5101 is a non-handed universal rim device, and the CRL Jackson 1295 is a non-handed push pad wide stile panic device for 1-3/4 inch doors.
12) I need a fire rated rim exit device in 36 inch or 48 inch. What are the options besides the Detex V4002AN?
The Marks USA M9900F is a fire rated rim exit device, exit only, in both 36 inch and 48 inch. The Orca OED85 is a fire rated 36 inch rim exit device, exit only, and the Dexter ED1000-R-F-EO is a Grade 1 fire rated rim exit device. The Detex V4002AN can be ordered fire rated in either 36 inch or 48 inch.
13) If I need an electrified rim exit device, does the Detex V4002AN cover that or should I look elsewhere?
The Detex V4002AN can be built with delayed egress, electric dogging, a hardwired electric alarm, or a request to exit signal switch. Other electrified wide stile options include the SDC S6136 Spectra, a 36 inch electrified architectural rim device with a 4 inch wide stile for 1-3/4 to 2 inch doors, the Dormakaba E2103 with 4908A trim in 08 classroom function, and the Securitron EMB electromechanical exit bar for 2-1/4 inch doors.
14) Which strike should I order, the 99 surface or the 98 semi-mortise?
Strike choice is required on the V40. The 99 surface strike mounts on the face of the frame stop and is the simpler retrofit when you do not want to cut the frame. The 98 semi-mortise strike recesses into the frame for a flusher look and is the one to use where a surface strike would interfere with the stop or a gasket.
15) What dogging options does the Detex V40 come with?
Three: hex key dogging (1/8 turn hex key), cylinder dogging, or less dogging. Hex dogging is the standard shop choice for holding the pushbar down during business hours. Cylinder dogging lets staff dog the device with a key rather than a hex wrench, which matters if you do not want a loose tool on site. Less dogging is what you take on a fire rated opening.
16) Is the Detex V40 heavy duty enough for a high traffic school or retail exit?
It is a BHMA Grade 1 commercial panic and fire exit device, the top durability class, and it withstands over 1400 pounds of static pull force. Construction is a ribbed aluminum rail extrusion with high impact ABS and anodized surfaces. Detex positions the V40 as its Value Series, so it is the economical Grade 1 rather than a stripped-down Grade 2 like the Cal-Royal 5000.
17) Can I change the outside trim later without pulling the device off the door?
Yes. The V40 uses a modular design, and outside trims can be changed or rekeyed without removing the device from the door. That is useful for property managers who start with a dummy pull and later need keyed outside access, or who rekey a building on a cycle.
18) What is a comparable wide stile Grade 1 rim exit device if I want a different brand?
Wide stile Grade 1 rim devices we carry include the Von Duprin 22 (36 inch, non-handed, listed for 1-3/4 inch doors), the Corbin Russwin ED5200 (36 inch, accepts trim), the Corbin Russwin ED2200 (36 inch, exit only), the TownSteel ED9700, and the Dormakaba 9300 Series 48 inch device listed for 1-3/4 to 2-1/4 inch doors. The Detex V40 differs in that it ships handed and offers hurricane rated variants.
19) I need a fire rated wide stile rim device with a dummy trim. Is there an alternative to the Detex V40?
The Sargent 12-8810-LTRIM is the closest peer we carry: fire rated, Grade 1, wide stile, dummy function, and it comes with RX and motorized electric latch retraction built in. Choose the Detex V4002AN fire rated build if you want the simpler mechanical device with the option to add RX or electric dogging separately.
20) Will the 36 inch Detex V40 work on a 48 inch wide door?
Use the 48 inch device for wider doors. The V40 comes in 36 inch and 48 inch rail lengths, and the rail is field sizeable, so you cut down from the next size up rather than stretching a short one. Panic hardware has to span most of the door width to meet code, so size to the door leaf, not to the smaller rail.
21) Which wide stile rim devices compare to the Detex V4002AN for a 48 inch door?
For 48 inch wide stile openings, the Corbin Russwin ED3200 is a Grade 1 crossbar rim device at 48 inch for 1-3/4 inch doors, the DORMA 9300 is a Grade 1 heavy duty 48 inch wide stile exit only device for 1-3/4 to 2-1/4 inch doors, and the CRL Jackson 1095 is a 48 inch crossbar wide stile panic device, exit only. The Detex V4002AN is offered in a 48 inch size as well.
22) What is a lower-grade alternative if Grade 1 is not required for my opening?
The Cal-Royal 5000 is a 36 inch wide rim exit device with a touch bar on a Grade 2 heavy duty chassis, and the Cal-Royal 5500 is a 48 inch wide rim device with a push bar, also Grade 2 heavy duty. The Detex V4002AN is Grade 1 and comes in 36 inch and 48 inch lengths, so it matches those same two door widths if the spec calls for Grade 1.
23) What are the wide stile Grade 1 rim alternatives if I want a crossbar or push bar instead of the Detex V4002AN push rail?
For a crossbar or push bar style wide stile device, the Corbin Russwin ED3200 is a Grade 1 48 inch crossbar rim device, the Sargent 3828 is a Grade 1 reversible standard push bar rim device for 48 inch doors, and the Sargent 2828 is a Grade 1 reversible rim device for a 48 inch minimum door width. The Detex V4002AN uses a ribbed aluminum rail with hex key dogging.
24) How does the Detex V4002AN compare with the TownSteel ED9700 and the DORMA 8300 for a standard 36 inch wide stile opening?
All three are Grade 1 wide stile rim devices. The TownSteel ED9700 is a 36 inch heavy duty Grade 1 rim device and the DORMA 8300 is a Grade 1 wide stile panic rim device, neither of them wood door compatible. The Detex V4002AN is also Grade 1 wide stile and not wood door compatible, and it is offered in 628 brushed aluminum and 711 black aluminum with 99 surface or 98 semi-mortise strike.
25) What finishes does the Detex V40 rim device come in?
Two anodized finishes: 628 brushed aluminum and 711 black aluminum. If you are standardizing across a building, brushed aluminum matches most clear-anodized storefront, and black aluminum matches dark bronze or black anodized frames.
26) Where do I get the templates and parts breakdown for a Detex V40 install?
Detex publishes installation instructions, a Value Series V40 parts list, and a maintenance manual, and all three are hosted with the product. The patented mounting plate and strike locator takes the place of a paper template for locating the strike, so most installs do not need a printed template at all.
