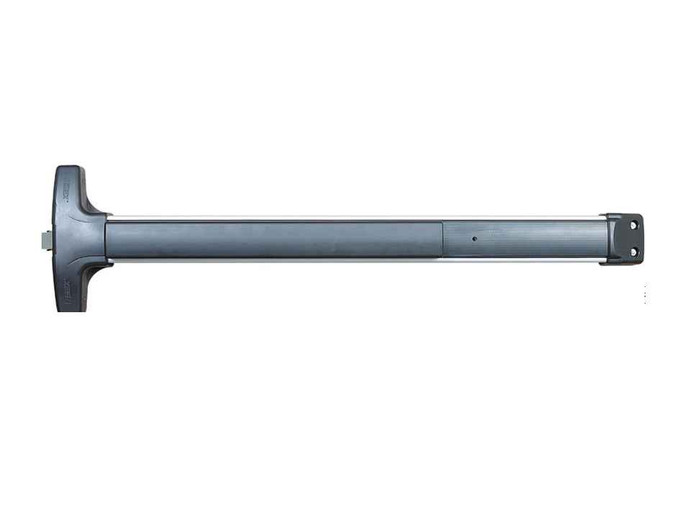

Detex V40 Series Wide Stile Rim Exit Device, Lever Trim Active by Key

Detex V40 Series Wide Stile Rim Exit Device, Lever Trim Active by Key

(No reviews yet) Write a Review

Model: DTX-V4009BN-NO-36-NO-62
$902.00
$717.44
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$902.00
$717.44
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex V40 Series Wide Stile Rim Exit Device with Lever Trim Active by Key

Grade 1 Commercial Exit Device Solution

The Detex V40 Series Wide Stile Rim Exit Device delivers Grade 1 panic and fire exit hardware performance at an economical price point. This non-handed device features a stainless steel 3/4" deadlocking Pullman-type latch bolt and withstands over 1400 pounds of static pull force for enhanced security. The patented mounting plate and strike locator system ensures accurate installation while the heavy-duty ribbed aluminum rail extrusion provides long-term durability for commercial applications.

Professional Features & Benefits

  • Superior Security Performance: Withstands over 1400 pounds of static pull force for exceptional security in high-risk applications.
  • Grade 1 Certification: Meets the highest commercial standards for panic and fire exit hardware performance and durability.
  • Heavy-Duty Construction: Ribbed aluminum rail extrusion with high impact ABS and anodized surfaces for long-lasting commercial use.
  • Patented Installation System: Mounting plate and strike locator system replaces paper templates for the most accurate and easiest installation available.
  • Wide Stile Compatibility: Designed specifically for wide stile doors with field-sizeable design for versatile applications.
  • Modular Trim Design: Outside trims can be easily changed or rekeyed without removing the device from the door for maintenance flexibility.
  • Comprehensive Door Coverage: Covers a 161 door prep with minimal door preparation requirements to save installation time and costs.
  • Manufacturer Warranty: 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Grade: Grade 1
  • Product Category: Exit Devices and Trim
  • Product Function: Lever Trim Active by Key, Locked When Key Removed
  • Product Group: Exit Devices and Trim
  • Product Model: V4009BN
  • Product Subgroup: Exit Devices - Rim
  • Product Type: Exit Devices - Rim
  • Series: V40 Series
  • Stile: Wide
  • Stile Type: Wide Stile
  • Subcategory: Value Series
  • Warranty: 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty
  • Wood Door Compatible: No

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex V40 Series exit devices combine Grade 1 commercial performance with innovative installation features and heavy-duty ribbed aluminum construction rated to withstand over 1400 pounds of static pull force. The comprehensive 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty demonstrates the manufacturer's confidence in long-term reliability. Engineered for demanding commercial applications where dependable performance and security are essential.



Resources

Installation Instructions
Parts List
Door Templates
Maintenance Manual
Installation Video

Product Specs

Subcategory:
Value Series
Series:
V40 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Commercial/Residential:
Commercial
Warranty:
10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
Grade:
Grade 1
Stile:
Wide
Stile Type:
Wide Stile
Wood Door Compatible:
No
Product Model:
V4009BN
Product Function:
Lever Trim Active by Key, Locked When Key Removed
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex DTX-V4009BN-NO-36-NO-62 – Frequently Asked Questions

1) Is the Detex V40 rim device a wide stile or narrow stile device?
Wide stile. The V4009BN pushpad rail is built for wide stile doors, so it will not suit a narrow aluminum storefront stile. For a narrow stile opening, a device like the TownSteel ED3700 or the Corbin Russwin ED4200, both Grade 1 narrow stile rim devices, is the right family instead.
2) How does the key work on the Detex V4009BN lever trim?
The lever on the V4009BN is active only while the key is turned, and the lever locks again as soon as the key is removed. Inside, the pushpad always releases the latch for free egress. That function suits an exterior service or tenant door where staff need keyed entry but the door must never be left unlocked by trim alone.
3) Will the Detex V40 latch into the strike I already have, or do I need to order a strike?
A strike is part of the order, not an afterthought: you choose either the 99 surface strike or the 98 semi-mortise strike. The device uses a stainless steel 3/4 inch deadlocking Pullman latch bolt, so the strike has to be one of those two Detex strikes to catch and deadlock correctly. Surface is the usual pick on hollow metal frames; semi-mortise gives a flusher look where the frame can be prepped.
4) Do I have to specify handing on the Detex V4009BN?
The device chassis itself is non-handed, but the order still takes a handing selection, right hand reverse or left hand reverse, for the keyed lever trim. Stand outside the door: if it swings out toward you and the hinges are on your right, that is right hand reverse.
5) Can I get the Detex V40 for a fire door?
Yes, a fire rated build is one of the rating choices, along with hurricane rated, hurricane and fire rated combined, and non-rated. Order the fire rated version for a labeled opening, and note that dogging is not used on fire doors, so pair it with the less/no dogging option.
6) Can the Detex V40 be electrified for access control or delayed egress?
Yes. Electrified choices are delayed egress, electric dogging, hardwired electric alarm, and request to exit signal switch, plus a plain mechanical version with no electrical option. Electric dogging remotely releases the pad on a schedule; an RX switch reports pad use back to the access control panel; delayed egress holds the door for the code-permitted delay before releasing.
7) Can the Detex V40 replace an existing rim device without redrilling the door?
The V40 covers a 161 door prep, which is the standard cylindrical lock prep found on most hollow metal doors, so it typically drops onto a door already prepped for common hardware with minimal new preparation. Detex also supplies a mounting plate and strike locator instead of a paper template, which keeps the pad and strike lined up on the retrofit.
8) Will the Detex V40 secure a pair of doors?
A rim device latches into a strike at the frame or, on a pair, into a removable mullion. On its own the V40 cannot secure the inactive leaf of a pair without a mullion. For a pair with no mullion, a vertical rod device is the right type instead, such as the Hager 4501 Series Grade 1 concealed vertical rod with wide stile pushpad.
9) The Detex V4009BN is not rated for wood doors - what wide stile rim device works on a wood door?
The Detex V4009BN is listed as not wood door compatible. Among rim exit devices that are, the Adams Rite 8700 Series 30 inch narrow stile rim device is wood door compatible and non-fire-rated, and the Adams Rite 3700 Series 30 inch is wood door compatible and fire rated. Both are narrow stile rather than wide stile, so the door prep and stile width differ from the Detex.
10) What is the closest wide stile Grade 1 rim exit device alternative to the Detex V4009BN?
The Von Duprin 22-3FT is the nearest match in form: a 36 inch wide stile pushpad rim exit device, non-handed, Grade 1, for 1-3/4 inch doors and not wood door compatible. The Detex V4009BN is also a Grade 1 wide stile rim device, and it is offered in 36 inch and 48 inch sizes with lever trim active by key, locked when the key is removed. If the opening needs keyed outside lever access, the V4009BN carries that trim function; the 22-3FT is specified as a pushpad device.
11) I need a fire rated rim exit device for a 48 inch opening - what are my options besides the Detex V40?
The Detex V4009BN can be ordered in a 48 inch size with a Fire Rated rating option, or Hurricane and Fire Rated. For a fire rated exit-only device at the same width, the Marks USA M9900F-48 is a 48 inch fire rated rim panic device, exit only, with a panic protector end cap. The difference is trim: the Detex carries a lever trim active by key, while the M9900F-48 is exit only with no outside operating trim.
12) Can I use the Detex V4009BN on a narrow stile aluminum storefront door?
No. The Detex V4009BN is a wide stile rim device. For narrow stile aluminum openings, the Adams Rite 8800 Series 30 inch narrow stile rim exit device fits 1-3/4 inch to 2-1/4 inch doors, and the Adams Rite 3700 Series 30 inch narrow stile device is fire rated. TownSteel ED3700-36 and ED8900-36 are also Grade 1 narrow stile rim devices at 36 inches.
13) Is a Cal-Royal 5000 or 5500 an equivalent replacement for a Detex V40 rim device?
Not on grade. The Detex V4009BN is Grade 1. The Cal-Royal 5000 is a 36 inch wide rim exit device with a touch bar and a Grade 2 chassis, and the Cal-Royal 5500 is a 48 inch wide rim device with a push bar, also Grade 2; both are heavy duty and not wood door compatible. If the specification calls out Grade 1 panic hardware, the Detex V40 or another Grade 1 device such as the TownSteel ED9700-36 wide stile is the match.
14) I need an electrified wide stile rim device with request-to-exit signaling - how does the Detex V40 compare to other options?
The Detex V4009BN can be ordered with a Request To Exit signal switch, electric dogging, a hardwired electric alarm, or delayed egress. Comparable electrified wide stile choices include the SDC S6136 Spectra S6000 Series 36 inch electrified architectural rim device with a 4 inch wide stile for 1-3/4 inch to 2 inch doors, and the Sargent 12-8810-LTRIM fire rated wide stile rim device with RX and MELR. The Detex is the option that also carries hurricane rating and fire rating choices.
15) What door widths does the Detex V40 rim device cover, and can it be cut down?
Two rail lengths are offered, 36 inch and 48 inch, and the rail is field sizeable, so an installer can trim it to suit the actual door width rather than ordering a custom length. Pick the 36 inch for standard 3-0 leaves and the 48 inch for wider openings.
16) Which dogging option should I pick on the Detex V40 exit device?
Three choices: hex dogging, cylinder dogging, or less/no dogging. Hex key dogging is the low-cost way to hold the pad down during business hours on a non-rated door. Cylinder dogging lets staff dog and undog with a keyed cylinder instead of carrying an Allen wrench, which property managers usually prefer in a multi-tenant building. Choose less/no dogging for fire rated openings.
17) Is the Detex V40 strong enough for an exterior door that gets pulled on hard?
It is a Grade 1 commercial device and Detex rates the V40 to withstand over 1400 pounds of static pull force. Construction is a ribbed aluminum rail extrusion with high impact ABS and anodized surfaces, which is why it holds up on high-traffic exterior and back-of-house doors.
18) If a tenant changes and I need to rekey, do I have to pull the Detex V40 off the door?
No. The V40 uses a modular trim design, so outside trim can be swapped or rekeyed with the device still mounted. For a property manager running a lot of doors, that means a rekey is a trim job rather than a full hardware removal and reinstall.
19) How does the Detex V40 compare with a Von Duprin 22 or a Sargent wide stile rim device?
All three are wide stile rim devices. The Detex V40 is Detex's Value Series, Grade 1, non-handed, and offered with keyed lever trim so the outside can be unlocked by key. The Von Duprin 22 Series in 36 inch is Grade 1 wide stile, non-handed, for 1-3/4 inch doors and non-fire-rated. Sargent's 12-8810 is a Grade 1 fire rated wide stile device with request-to-exit and motorized latch retraction already built in. Pick the Detex if you want keyed lever entry with optional hurricane or fire rating; pick the Sargent if the spec calls for factory electrified latch retraction.
20) I need a 48 inch wide stile rim device. What are my options besides the Detex V40?
The V40 comes in a 48 inch rail. Comparable 48 inch wide stile rim devices include the Corbin Russwin ED3200, a Grade 1 crossbar device for 1-3/4 inch doors, the DORMA 9300 Series exit-only Grade 1 device rated for 1-3/4 to 2-1/4 inch doors, and the CRL Jackson 1095 Series crossbar panic device. Note those three are exit-only or panic-only, so if you need keyed lever entry from outside, the Detex V40 with lever trim is the one that does it.
21) If I do not need keyed outside lever access, what is a simpler substitute for the Detex V4009BN?
Exit-only devices drop the outside trim entirely. The Corbin Russwin ED2200-WO36 is a 36 inch Grade 1 wide stile rim device, exit only. The Sargent 2828 and 3828 are Grade 1 reversible wide stile rim devices, exit only, for 48 inch doors. The Detex V4009BN differs in that its lever trim is active by key and locked when the key is removed, so it allows keyed re-entry from outside.
22) What is the difference between the Detex V40 rim device and a concealed vertical rod device like the Hager 4501?
The Detex V4009BN is a rim device: the latch and strike sit at the door edge and head, and it is ordered with either a 99 surface or 98 semi-mortise strike. The Hager 4501 Series 36 inch is a Grade 1 concealed vertical rod device with a wide stile pushpad, which latches top and bottom through rods concealed in the door and requires a door built to accept them. Hager also offers the 4701 Series 36 inch as a standard duty rim device with Grade 1 BHMA certification if you want to stay with a rim application.
23) Is an SDC pressure sense bar or switch bar a substitute for the Detex V40 rim exit device?
No, they solve a different problem. The Detex V4009BN is a Grade 1 mechanical rim exit device with a deadlocking Pullman-type latch bolt that latches into a strike. The SDC PSB560 Series 36 inch is a pressure sense bar with tri-failsafe technology and the SDC MSB550 Series 36 inch is a mechanical switch bar with electromagnetic lock release - both signal a separate electromagnetic lock rather than providing their own latch, and both suit narrow or wide stile doors.
24) How does the Detex V40 Value Series compare with heavy duty wide stile devices like the DORMA 9300 or TownSteel ED1100?
All three are Grade 1 wide stile rim devices. The Detex V4009BN is the Value Series build, with a ribbed aluminum rail extrusion rated to withstand over 1400 pounds of static pull force and a patented mounting plate and strike locator system in place of a paper template. The DORMA 9300A is a heavy duty 48 inch wide stile panic rim device, exit only, for 1-3/4 inch to 2-1/4 inch doors. The TownSteel ED1100-36 is a heavy duty Grade 1 36 inch wide stile panic rim device. The Detex is the one of the three ordered with a keyed lever trim, dogging choice, and fire or hurricane rating options.
25) What finishes does the Detex V4009BN come in, and will it match my other doors?
Two anodized finishes: 628 brushed aluminum and 711 black aluminum. Brushed aluminum is the usual match for clear-anodized aluminum storefront and most existing exit hardware; black aluminum matches dark bronze and black anodized entrances.
26) Where do I get the templates and parts breakdown for the Detex V40 before I cut the door?
Detex publishes installation instructions, a Value Series V40 parts list, and a maintenance manual, all available as PDFs with the product. The install sheet gives the door and frame prep; the parts list is what you order replacement latches, end caps, and trim from later.
