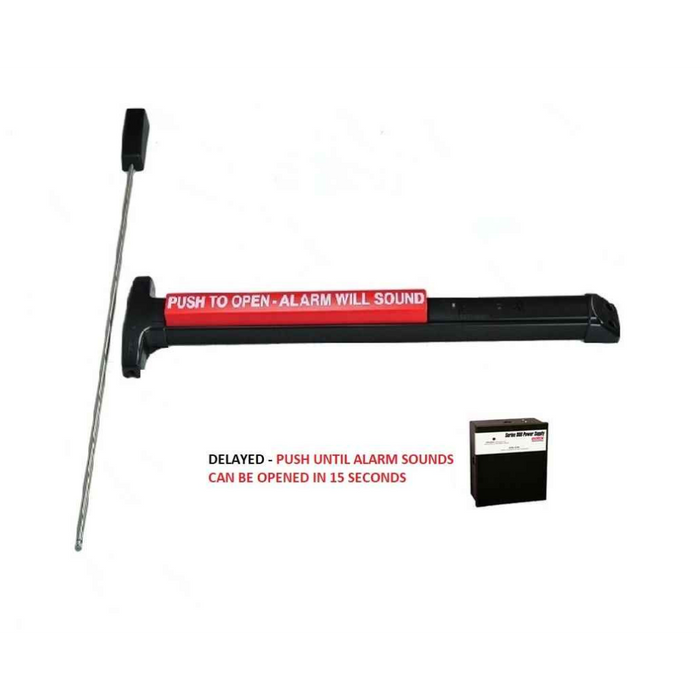

Detex V51EE Wide Stile Surface Vertical Rod Exit Device with Delayed Egress Alarm Power Supply

Detex V51EE Wide Stile Surface Vertical Rod Exit Device with Delayed Egress Alarm Power Supply

(No reviews yet) Write a Review

Model: V51EE

In Stock (leaves warehouse same day if ordered before 3pm ET)

$298.00
$241.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex V51EE Wide Stile Surface Vertical Rod Exit Device with Delayed Egress Alarm Power Supply

Heavy-Duty Panic and Fire Exit Hardware with Integrated Delayed Egress System

The Detex V51EE Wide Stile Surface Vertical Rod Exit Device delivers professional-grade panic and fire exit hardware at an economical price point, designed for use on all types of single and double doors without a mullion. This top rod only configuration features heavy-duty ribbed aluminum rail extrusion with stainless steel 3/4" deadlocking top latch bolt construction. The device includes integrated delayed egress alarm power supply functionality and utilizes Detex’s patented mounting plate and strike locator system for accurate installation.

Professional Features & Benefits

  • Wide Stile Compatibility: Specifically designed for wide stile door applications providing versatile installation options for various door configurations.
  • Heavy-Duty Construction: Features ribbed aluminum rail extrusion and stainless steel 3/4" deadlocking top latch bolt for exceptional durability in commercial applications.
  • Delayed Egress Alarm System: Integrated delayed egress alarm power supply included for code-compliant delayed egress applications with built-in monitoring capabilities.
  • Patented Installation System: Mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available, saving time and reducing installation errors.
  • Field Serviceable Design: Outside trims are easily changed or rekeyed without removing device from door, minimizing maintenance downtime.
  • Damage-Resistant Design: Angled end cap deflects damage away from device, extending service life in high-traffic applications.
  • Grade 1 Performance: BHMA Grade 1 rated for heavy-duty commercial use with superior operational reliability.
  • Comprehensive Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer’s Warranty for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Grade: Grade 1
  • Product Category: Exit Devices and Trim
  • Product Function: Delayed Egrees Alarm Power Supply Included
  • Product Group: Exit Devices and Trim
  • Product Model: V51EE
  • Product Subgroup: Exit Devices - Vertical Rod
  • Product Type: Exit Devices - Vertical Rod
  • Series: V51 Series
  • Stile: Wide
  • Stile Type: Wide Stile
  • Subcategory: Value Series
  • Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer’s Warranty

Installation & Operation

  1. Verify electrical requirements for delayed egress alarm power supply and confirm voltage and current capacity before proceeding with installation.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures for delayed egress systems.
  3. Use manufacturer-provided templates and patented mounting plate system to mark mounting hole locations accurately on door and frame surfaces.
  4. Mount the vertical rod device ensuring adequate clearance for wiring access, alarm components, and future service requirements.
  5. Route and connect delayed egress alarm wiring according to manufacturer wiring diagrams using appropriate wire gauge and connectors.
  6. Configure delayed egress operational settings and alarm functions per application requirements and local code compliance.
  7. Restore power and test all functions including normal exit operation, delayed egress timing, alarm activation, and integration with connected fire/security systems.
  8. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Delayed Egress Compliance

The integrated delayed egress alarm power supply provides code-compliant delayed egress functionality with built-in timing and monitoring capabilities. This system allows controlled egress delay while maintaining emergency override capabilities, meeting requirements for security-sensitive applications while ensuring life safety compliance.

Why Choose Detex Quality?

Detex V51EE exit devices deliver professional-grade reliability with heavy-duty ribbed aluminum rail extrusion and stainless steel deadlocking bolt construction rated for Grade 1 commercial performance. The comprehensive 10 Year Mechanical/3 year Electrical Limited Manufacturer’s Warranty provides long-term protection and confidence. Engineered for demanding commercial applications where dependable delayed egress performance and easy maintenance access are essential.



Resources

Installation Instructions
Parts List
Door Templates
Installation Video

Product Specs

Subcategory:
Value Series
Series:
V51 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Vertical Rod
Product Type:
Exit Devices - Vertical Rod
Commercial/Residential:
Commercial
Grade:
Grade 1
Stile:
Wide
Warranty:
10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
Stile Type:
Wide Stile
Product Model:
V51EE
Product Function:
Delayed Egrees Alarm Power Supply Included
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex V51EE – Frequently Asked Questions

1) Will the Detex V51EE work on a pair of doors with no center mullion?
Yes. The V51EE is a surface vertical rod device, so it latches into the frame at the head rather than into a mullion or a strike on the opposite leaf. That makes it usable on single doors and on pairs without a mullion. If you are running a pair, you order a device for each leaf.
2) Is the Detex V51EE a top rod only device, or does it latch at the threshold too?
Top rod only. The V51EE latches at the head with a stainless steel 3/4 inch deadlocking top latch bolt and has no bottom rod or floor strike. That keeps the threshold clear, which matters where carts roll through or where floor debris would foul a bottom latch. If your opening needs a bottom latch point, this is the wrong configuration.
3) What does the EE in Detex V51EE mean, and is the power supply included?
The EE designation on the V51 is the delayed egress alarm configuration, and the alarm power supply ships with the device. So you are buying the delayed egress function and its power supply together rather than sourcing a separate supply. You still need to run power to it and wire it per the installation instructions, and you will want it tied into your fire alarm so the delay releases on alarm.
4) Is the Detex V51EE a wide stile or narrow stile exit device?
Wide stile. The V51EE is built for wide stile doors, which covers hollow metal and wood commercial doors and wide stile aluminum. It is not intended for narrow stile aluminum storefront; a narrow stile opening needs a device made for that rail width.
5) I just need a plain vertical rod panic device without the alarm. What should I look at instead?
If you do not need delayed egress, skip the EE and look at an exit only vertical rod device. ZenSupply carries the Von Duprin 8827-3FT wide stile surface vertical rod in Grade 1 for 1-3/4 inch doors, the Imperial USA ED-VR531 wide stile Grade 1 exit only device, and the Marks USA M9900VR for a 36 x 84 door. Those are mechanical devices with no alarm electronics, so there is no power to run.
6) The opening is fire rated. What vertical rod device should I use instead of the Detex V51EE?
Go to a device that carries a fire rating in its own listing. The Delaney F9100 Series device for a 36 by 84 inch door is Grade 1 and fire rated, in aluminum finish. The Marks USA M9900FVR for a 36 by 84 inch door is fire rated and exit only and non-handed, and the Marks USA MARM9900F-VR covers a 48 by 84 inch fire rated opening, also exit only. The Detex V51EE is a Grade 1 wide stile vertical rod device supplied with a delayed egress alarm power supply, so on a fire rated opening confirm the listing and the delayed egress requirements with the authority having jurisdiction before selecting.
7) What is the closest wide stile surface vertical rod exit device to the Detex V51EE if delayed egress is not needed?
The Von Duprin 8827-3FT is the closest straight mechanical equivalent. It is a wide stile surface vertical rod exit device, Grade 1, in the 88 Series, and is listed for 1-3/4 inch door thickness. The Detex V51EE is also a wide stile Grade 1 surface vertical rod device, but it is supplied with a delayed egress alarm power supply, so it is the choice when the opening has to hold for a timed delay before releasing. For a plain panic opening with no delay or alarm requirement, the 8827-3FT covers the same door type without the electrified controls.
8) Is the Detex V51EE Grade 1?
Yes, BHMA Grade 1, which is the heavy duty commercial classification and what most institutional and government specs call for on egress doors. Detex builds it with a ribbed aluminum rail extrusion and a stainless steel deadlocking top bolt.
9) Can I rekey or change the outside trim on a Detex V51 without pulling the device off the door?
Yes. The outside trim on the V51 can be changed or rekeyed with the device still mounted, which is the reason a lot of property managers standardize on it. For a multi-building rekey you are not taking doors out of service to swap cylinders.
10) What do I need for the Detex V51EE install besides the device itself?
The V51EE uses Detex's mounting plate and strike locator system, and Detex publishes door prep templates, installation instructions and a parts list for the Value Series V50/V51. Beyond the hardware, plan for power to the delayed egress alarm supply, wiring routed to the device with clearance for service, and a connection to the building fire alarm so the delay releases. Top rod only means no floor strike to prep.
11) Can I use the Cal-Royal 9860 in place of the Detex V51EE?
Not where a Grade 1 device is specified. The Cal-Royal 9860 is a heavy duty surface vertical rod exit device rated Grade 2, exit only, with no fire rating. The Detex V51EE is Grade 1 and comes with a delayed egress alarm power supply. The 9860 suits an opening where a Grade 2 heavy duty panic device is acceptable and no egress delay is required; it is not an answer to a Grade 1 delayed egress spec.
12) What is a simpler Grade 1 vertical rod device than the Detex V51EE for a standard 36 by 84 inch door?
The Delaney 8100 Series device for a 36 by 84 inch door is Grade 1 vertical rod with no fire rating, and the Delaney 9100 Series device for the same 36 by 84 inch opening is Grade 1 heavy duty vertical rod in a stainless steel finish. Both are mechanical panic hardware without an alarm supply. The Detex V51EE is a Grade 1 wide stile surface vertical rod device that ships with a delayed egress alarm power supply and requires wiring and configuration of the delay and alarm functions, so the Delaney devices are the simpler route when the opening only needs code compliant egress.
13) Is the Detex V51EE tough enough for a high traffic back door that gets abused?
It is built for it. Grade 1 commercial rating, ribbed aluminum rail extrusion, a stainless steel deadlocking top bolt, and an angled end cap that deflects impact away from the device body. That end cap matters on a dock or service door where carts clip the end of the rail.
14) How is the Detex V51 Value Series different from a standard Detex exit device line?
The V51 sits in Detex's Value Series, meaning it is the economical tier of their panic hardware while still carrying the Grade 1 rating and the stainless steel deadlocking bolt. It is the choice when you want Detex delayed egress on a budget-driven job rather than a premium specification device.
15) Which vertical rod exit devices are non-handed if I want to stock one device for both door hands instead of the Detex V51EE?
The Marks USA M9900VR at 36 by 84 inches is a vertical rod panic exit device listed as exit only and non-handed, and the fire rated Marks USA M9900FVR at 36 by 84 inches is likewise exit only and non-handed. Both simplify stocking across left and right hand openings. The Detex V51EE is a Grade 1 wide stile surface vertical rod device with a delayed egress alarm power supply, which is the device to hold for openings that need the timed delay rather than plain panic egress.
