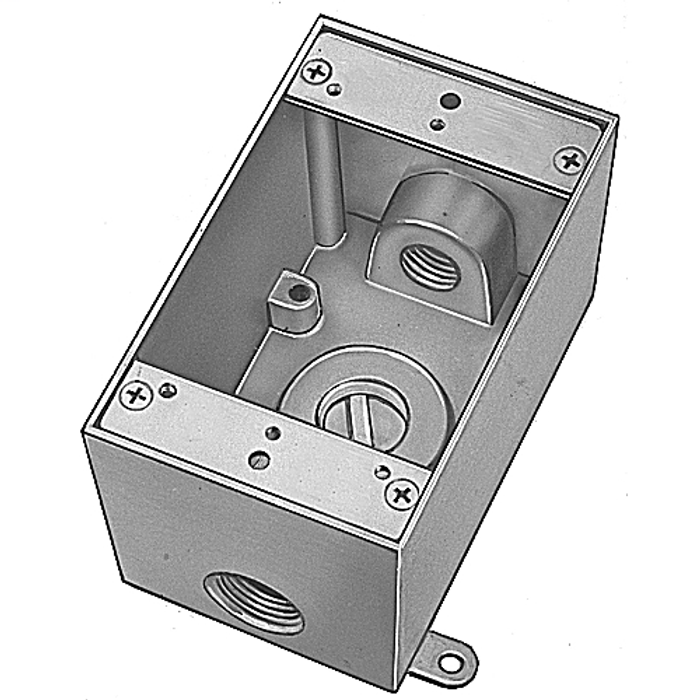

Thomas & Betts DIH3-1-LM Device Boxes, Covers & Accessories

Thomas & Betts DIH3-1-LM Device Boxes, Covers & Accessories

(No reviews yet) Write a Review

Model: TB-DIH3-1-LM
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$83.00
$33.00
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Device Boxes, Covers & Accessories

  • Certifications

    • UL

  • Notes

    • Rain tight when used with appropriate Red Dot covers.

  • Application

    • Accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices
    • Junction box for branch conduits
    • Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations

  • Features

    • Securely fastened mounting plates reduce costly call backs
    • Clean cover edges provide good gasket sealing.
    • Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance
    • Precision cast and machined surfaces permit safer wire pulling.
    • Clear UL and cubic content markings speed approval by inspectors
    • Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices.
    • Convenient mounting lugs for a variety of mounting methods

Manufacturer Resources

Product Specs

A Inches :
4 9/16
B Inches :
2 13/16
C Inches :
2
Color:
Silver
D Inches :
8-May
E Inches :
3 13/16
F Inches :
3 1/2
Finish:
Powder-Coated
G Inches :
3 1/4
H Inches :
1 7/8
Hub Size Inches :
2-Jan
J Inches :
1 1/2
Material:
Die Cast Aluminum
Number Of Gangs:
One
Outer Package:
10
Package Height:
6.8
Package Length:
10.2
Package Width:
5.4
Product Group:
Electrical Boxes
T B Sold In Uom:
Each
T B Weight Per Uom:
0.58 lbs. Each
Volume Cu In :
17
Department:
Electrical
Product Subgroup:
Box Covers
!
