Notes
- Rain tight when used with appropriate Red Dot covers.
Certifications
- UL
Manufacturer Resources
Product Specs
- Diameter Inches:
- 4 1/8
- Hub Size Inches:
- 4-Mar
- Inner Package:
- 1
- Outer Package:
- 50
- Package Height:
- 9.25
- Package Length:
- 22
- Package Width:
- 7.75
- Product Group:
- Boxes & Enclosures
- Rohs Compliance:
- Yes
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 0.45 lbs. Each
- Department:
- Electrical
- Product Subgroup:
- Electrical Boxes
- Product Color:
- Silver
- Product Material:
- Stamped Aluminum
- Product Type:
- Outlet Box
Thomas & Betts S-12 – Frequently Asked Questions

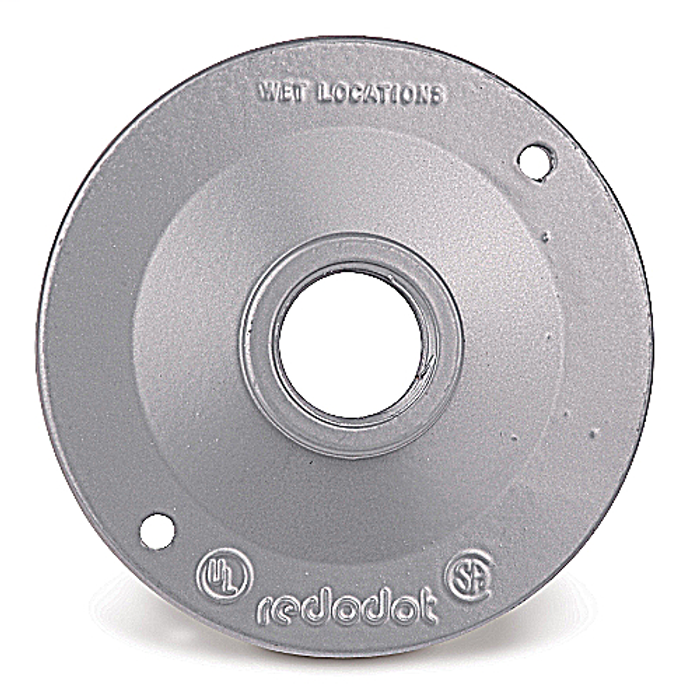

1) Is the Thomas & Betts S-12 cover weatherproof for an outdoor box?
The S-12 is rain tight only when it is paired with the appropriate Red Dot covers. On its own it should not be treated as a weatherproof assembly, so for an exposed outdoor location plan on the matching Red Dot cover as part of the order. It is UL listed.
2) What size round box will the Thomas & Betts S-12 cover fit?
The S-12 measures 4-1/8 inches in diameter, which matches standard 4 inch round outlet and octagon box openings. Check the mounting hole spacing on the box you are covering before you commit to a large quantity.
3) What is the Thomas & Betts S-12 made of, and will it corrode outdoors?
Stamped aluminum, silver in color. Aluminum gives you a non-ferrous cover that will not rust the way a painted steel cover does, which is why it turns up on exterior and damp-location work. It is also RoHS compliant, which matters if you are buying to a government or institutional purchasing spec.
4) Is the Thomas & Betts S-12 sold individually or only by the case?
Sold each. The inner pack is 1 piece and the factory outer carton holds 50, so an MRO buyer stocking a shelf can take a full 50-piece carton while a contractor needing two for a job can buy just two.
5) Is S-12 the actual part number to order from Thomas & Betts?
Yes, S-12 is the manufacturer part number as Thomas & Betts publishes it, with no finish or size suffix to add. Distributors cross-referencing it will find it as a 4-1/8 inch stamped aluminum box cover.
