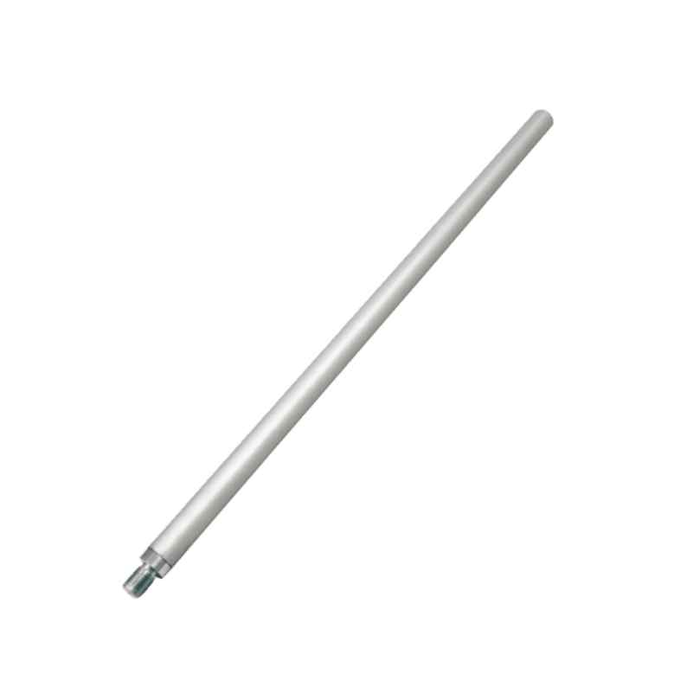

Dexter ED1500-EXTRD-SP Extension Rod Assembly, 12", for ED1500 Exit Devices

It is a 12 inch extension rod assembly made for Dexter ED1500 exit devices. It is a factory component for the ED1500, not a complete exit device, so it is ordered alongside or as a service part for an ED1500 rim panic device rather than on its own for a bare opening.

ED1500 devices are built for a standard 1-3/4 inch thick door and need a minimum stile width of 4-1/4 inches. If the opening is an aluminum storefront with a narrower stile than that, the ED1500 is the wrong family and a narrow stile rim device such as the Corbin Russwin ED4200 or the TownSteel ED3700 is the one that fits.

Yes. The ED1500 is a Grade 1 UL listed panic device and is UL listed as a 3-hour fire device, so it is carried as fire rated hardware. Note that fire rated openings do not permit dogging the device down, even though hex key dogging is standard on the panic versions.

The ED1500 devices are UL listed 3-hour fire devices. Fire-rated rim exit devices that match on that point include the Adams Rite 3700 Series 30-inch narrow stile device, the Arrow FS1250 32-inch device, the Orca Hardware OED85 Series 36-inch device, and the Marks USA M9900F in both 36-inch and 48-inch lengths. All four carry a Yes fire rating, so any of them can be specified for a labeled opening where the ED1500 is being taken out entirely instead of fitted with an extension rod.

The Adams Rite 3700 Series 30-inch fire-rated narrow stile rim exit device lists wood door compatibility as Yes and carries a Grade 1 rating, which makes it the one in the comparable range that covers a labeled wood opening. The non-fire-rated Adams Rite 8700 Series 30-inch device also lists wood door compatibility as Yes if the opening is not labeled. Both are narrow stile devices with starwheel interlocking.

The ED1500 devices need a 4-1/4 inch minimum stile width, so an extension rod does not help on a thinner stile. Narrow stile rim exit devices in the same range include the Falcon 19-R Series Grade 1 exit-only device at 36 inches, the Falcon 1590EO at 42 inches, the Corbin Russwin ED4200 Grade 1 at 36 inches, the TownSteel ED3700 Grade 1 at 36 inches, and the Detex 40 Advantex Series extra heavy duty device. Each is listed as narrow stile and Grade 1.

ED1500 devices fit a standard 1-3/4 inch thick door, and an extension rod does not change that. For a thicker leaf, the Adams Rite 8800 Series 30-inch narrow stile device lists a 1-3/4 inch to 2-1/4 inch door thickness range, and the Dormakaba 9300 Series 48-inch wide stile device lists the same 1-3/4 inch to 2-1/4 inch range. The SDC S6136 covers 1-3/4 inch to 2 inch, and the Securitron EMB exit bar is listed for a 2-1/4 inch door.

Two painted finishes: SP28 aluminum painted (689) and SP313 dark bronze painted (695). Those are the same two finishes Dexter publishes for the ED1500 devices themselves, so specify the rod in the finish code already on the door and it matches the device.

No handing to call out. All ED1500 devices and trim are non-handed, so the same part works on a left or right hand door and you do not need to know the swing before ordering.

The Corbin Russwin ED4200 Grade 1 36-inch narrow stile device and the Corbin Russwin ED5200 Grade 1 36-inch device are both listed as exit only and accepts trim, so either can take outside trim on the same opening. The Sargent 8504 is a narrow stile Grade 1 device in night latch function, and the Detex V4003A/03AN is a Grade 1 wide stile rim device supplied with night latch trim. Those are the routes to outside access when an ED1500 with an extension rod would leave the door exit only.

Rim exit devices built for 48-inch openings include the Corbin Russwin ED3200 Grade 1 48-inch crossbar device, the CRL Jackson 1095 Series 48-inch crossbar panic device, the Cal-Royal 5500 48-inch push bar device, the Dormakaba 9300 Series 48-inch wide stile device, and the Marks USA M9900F 48-inch fire-rated device. The Sargent 2828 and 3828 are both built for a 48-inch minimum door width as well, and both are Grade 1 reversible exit-only devices.

Hex key dogging is standard on all ED1500 panic devices. Among comparable rim devices, the Design Hardware 1000R at 33 inches and the Design Hardware 2000R at 33 inches both include hex key dogging, and the Stanley Security QED200 Series narrow stile device is a Grade 1 heavy duty device with hex-key dogging. The 1000R is a heavy duty device and the 2000R is standard duty, so the two Design Hardware options differ in duty level rather than in the dogging method.

Electrified rim hardware handles that. The SDC S6136 Spectra S6000 Series is a 36-inch electrified architectural rim exit device with a 4-inch wide stile and a 1-3/4 inch to 2 inch door thickness range. The SDC MSB550 Series 36-inch mechanical switch bar releases an electromagnetic lock, and the SDC SureExit PSB560 Series 36-inch pressure sense bar uses tri-failsafe technology; both suit narrow or wide stile. The Dormakaba E2103 with 4908A trim is a 36-inch electrified rim device in classroom function, and the Securitron EMB is an electromechanical exit bar for a 2-1/4 inch door.

It is commercial hardware, Grade 1, with an aluminum mechanism case and dead latching as standard. That is the duty level property managers and MRO buyers standardize on for corridor, stairwell, and exterior egress doors rather than light residential use.

The ED1500-EXTRD-SP is a 12-inch extension rod assembly that works with an ED1500, which is a Grade 1 UL listed panic device. The Cal-Royal 5000 at 36 inches with a touch bar and the Cal-Royal 5500 at 48 inches with a push bar are both Grade 2 heavy duty rim devices, neither fire rated. That is a different certification level for the opening, so a facility standardizing on Grade 1 exit hardware would keep the ED1500 and fit the extension rod rather than swap in a Grade 2 chassis.
