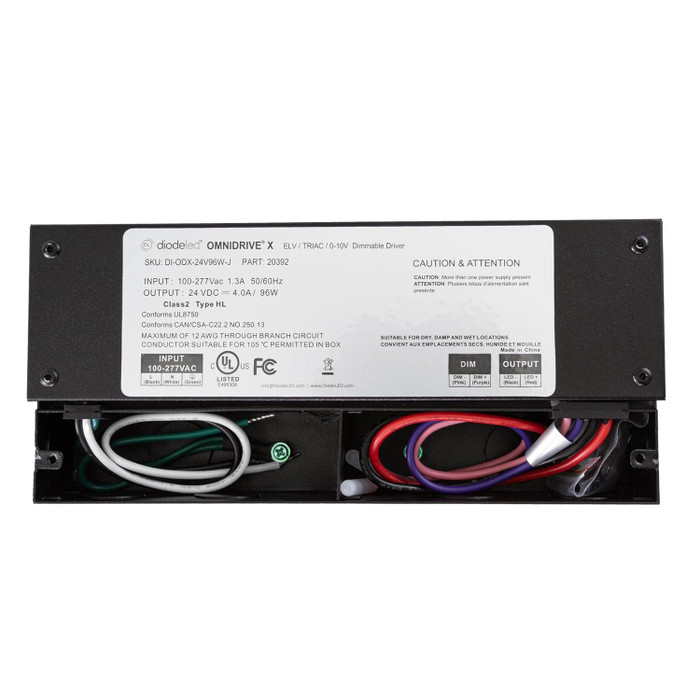

DiodeLED DI-ODX-24V96W-J OMNIDRIVE® X Dimmable LED Driver with Indoor J-Box, 96W, 120-277V AC to 24V DC

DiodeLED DI-ODX-24V96W-J OMNIDRIVE® X Dimmable LED Driver with Indoor J-Box, 96W, 120-277V AC to 24V DC

(No reviews yet) Write a Review

Model: DI-ODX-24V96W-J

In Stock (leaves warehouse same day if ordered before 3pm ET)

$261.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

DiodeLED DI-ODX-24V96W-J Dimmable LED Driver with Indoor J-Box, 120-277V AC to 24V DC, 96W OMNIDRIVE® X

The DiodeLED DI-ODX-24V96W-J is a dimmable LED driver from the OMNIDRIVE® X series, engineered to convert 120-277-Volt AC line power into a stable 24-Volt DC output for constant-voltage LED lighting systems. Rated for 96-Watt output, this driver is housed with an indoor J-Box enclosure, making it suited for interior installations where the driver must be concealed and protected within a junction box. The wide 120-277-Volt AC input range gives installers flexibility across common commercial and residential line voltages, while the fixed 24-Volt DC output makes it a dependable match for DiodeLED and compatible 24V LED tape light and fixture systems.

Key Features

  • Dimmable Operation: Designed for use with compatible dimming controls, enabling smooth brightness adjustment of connected 24V LED loads.
  • Indoor J-Box Enclosure: Housed for installation inside a standard junction box, allowing for a clean, concealed indoor mounting solution.
  • Wide AC Input Range: Accepts 120-277-Volt AC input, providing broad compatibility across typical line voltage supplies found in commercial and residential electrical systems.
  • 24-Volt DC Output: Delivers a regulated 24-Volt DC output tailored for constant-voltage LED tape light and fixture applications.
  • 96-Watt Output Capacity: Supplies up to 96 Watts of driver output, supporting mid-size LED lighting runs and installations.
  • OMNIDRIVE® X Series: Part of DiodeLED's OMNIDRIVE® X driver lineup, built for reliable, consistent LED power delivery.

Technical Specifications

  • AC Input: 120-277-Volt AC
  • DC Output: 24-Volt DC
  • Output Wattage: 96-Watt
  • Dimming: Dimmable
  • Enclosure: Indoor J-Box
  • Series: OMNIDRIVE® X

Typical Applications

  • Indoor LED Tape Light Installations
  • Under-Cabinet and Cove Lighting Systems
  • Commercial and Residential Junction Box Driver Mounting
  • 24-Volt Constant-Voltage LED Fixture Power Supply
  • Dimmable LED Lighting Circuits

Why DiodeLED?

DiodeLED's OMNIDRIVE® X series drivers are built to deliver consistent, dimmable 24-Volt DC power to LED lighting systems from a wide 120-277-Volt AC input range. With an indoor J-Box housing for concealed mounting and a 96-Watt output rating, the DI-ODX-24V96W-J is designed to provide dependable, code-compliant power for professional LED lighting installations.

Manufacturer Resources

Product Specs

list_batch:
DIO-20260924
Product Type:
LED Driver
Voltage Rating:
120-277V
Product Wattage:
96W
Configuration:
Dimmable Indoor J-Box
Series:
OMNIDRIVE X
Department:
Electrical
Product Subgroup:
LED Drivers
Product Group:
Lighting

DiodeLED DI-ODX-24V96W-J – Frequently Asked Questions

1) Will the DiodeLED DI-ODX-24V96W-J run on a 277V commercial circuit as well as 120V?
Yes. The DI-ODX-24V96W-J accepts any line voltage from 120 to 277V AC, so the same driver works on 120V residential branch circuits and on 208/240/277V commercial feeds. Output is fixed at 24V DC regardless of which input you land on, so you don't need to stock a different part number per building voltage.
2) Is the DI-ODX-24V96W-J the wet-location version or indoor only?
Indoor only. The J-Box configuration of the DI-ODX-24V96W-J is an indoor junction-box enclosure, intended to be concealed inside a standard j-box in interior work. For exterior soffits, landscape runs, or anywhere exposed to weather, this is the wrong housing and you need a driver with a wet-location enclosure instead.
3) I have 12V LED tape already installed. Can I use this driver on it?
No. This OMNIDRIVE X driver has a fixed 24V DC output and will overdrive a 12V tape. For a 12V run you need a 12V constant-voltage driver. The output voltage on this unit is not adjustable.
4) Can this LED driver be dimmed, and does it come with a dimmer?
The DI-ODX-24V96W-J is a dimmable driver and works with compatible dimming controls, but no dimmer or control is supplied with it. You order the wall control separately and wire it on the line side per the control's requirements. The driver itself is the only item on the order.
5) What is the exact part number to order for a 96W 24V DiodeLED indoor j-box driver?
DI-ODX-24V96W-J is the manufacturer part number. It is a single-configuration item from the DiodeLED OMNIDRIVE X series: 120-277V AC in, 24V DC out, 96W, dimmable, indoor j-box housing. There are no finish or option choices to specify.
6) If my LED run needs more than 96 watts, can I use two of these drivers?
Yes, the usual approach on a long run is multiple drivers, each carrying its own section of tape within its 96W limit, rather than paralleling outputs onto one shared circuit. Split the run and feed each segment from its own DI-ODX-24V96W-J, and keep all sections on the same dimming control if you need them to track together.
7) Is this driver suitable for under-cabinet and cove lighting in a multi-family or commercial fit-out?
Yes, that is its intended use. Interior tape light, under-cabinet, and cove runs on 24V constant-voltage systems are the typical applications, with the driver concealed in a junction box above the ceiling or inside the cabinet chase. The 120-277V input means one part number covers both the apartment-side 120V circuits and the house-panel voltages in the common areas.
