Product Specs

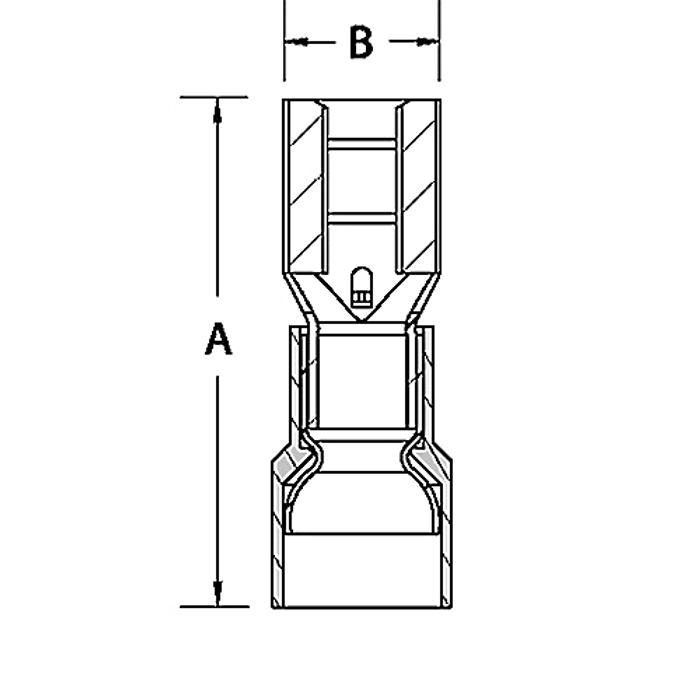

- A Inches :
- 0.75
- Alternate Package Qty:
- RB10SK
- B Inches :
- 0.15
- Color:
- Blue
- Disconnect Type:
- Female - 110 Series
- Finish:
- Electro Tin-Plated
- Flammability Rating:
- UL 94 V-2
- Inner Package:
- 100
- Insulation Type:
- Insulated Nylon
- Material:
- Brass
- Maximum Insulation Inches :
- 0.135
- Order Multiple:
- 100
- Outer Package:
- 500
- Package Height:
- 9
- Package Length:
- 10.4
- Package Type:
- Standard
- Package Width:
- 7.3
- Product Group:
- Circuit Protection
- Recommended Tool:
- ERG4006
- Rohs Compliance:
- Yes
- Stock Thickness:
- 0.03
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 1.88 lbs. per 1000
- Tab Size:
- .110 x .032
- Temperature Rating:
- 105°C
- Terminal Series:
- RB
- Voltage Rating:
- 600V
- Wire Range:
- 16-14
- Department:
- Electrical
- Product Subgroup:
- Disconnects
