Disconnects
Certifications
- UL
- CSA
Features
- Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.
Manufacturer Resources
Product Specs
- A Inches:
- 0.8
- Alternate Package Qty:
- RC2577F
- Application Tools:
- WT145C, WT2000, WT112M, ERG4001, ERG4003
- B Inches:
- 0.88
- Disconnect Type:
- Female - 250 Series
- Flammability Rating:
- UL 94 V-2
- Inner Package:
- 50
- Insulation Type:
- Insulated Nylon
- Maximum Insulation Inches:
- 0.25
- Order Multiple:
- 50
- Outer Package:
- 250
- Package Height:
- 7.9
- Package Length:
- 12.1
- Package Type:
- Standard
- Package Width:
- 10.5
- Product Group:
- Wire Connectors & Terminals
- Recommended Tool:
- ERG4001
- Rohs Compliance:
- Yes (exemption 06)
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 6.88 lbs. per 1000
- Tab Size:
- .250 x .032
- Temperature Rating:
- 105°C
- Terminal Series:
- RC
- Voltage Rating:
- 600V
- Wire Size:
- 10-Dec
- Department:
- Electrical
- Product Subgroup:
- Lugs & Terminals
- Product Finish:
- Electro Tin-Plated
- Product Color:
- Yellow
- Product Material:
- Brass
- Product Type:
- Quick Disconnect Terminal
Thomas & Betts RC10-250A – Frequently Asked Questions
1) What tab size do the Thomas & Betts RC10-250A female disconnects fit?
The RC10-250A is a 250 Series female quick-disconnect sized for a .250 x .032 inch blade tab, which is the standard 1/4 inch male tab found on contactors, relays, switches and motor terminals. It will not mate with 187 (.187) or 110 series tabs.
2) What wire gauge do these yellow insulated 250 series disconnects take?
Yellow nylon insulation on the RC10-250A is the standard color code for 12-10 AWG, and the terminal's wire range is 12-10. It also accepts insulation up to 0.25 inch outside diameter, so heavier-jacketed THHN in that gauge still seats in the barrel.
3) Which crimp tool should I use on the RC series nylon disconnects?
Recommended tool is the ERG4001. The terminal is also qualified for the WT145C, WT2000, WT112M, ERG4003 and ERG4001 application tools, so if your electricians already carry one of those in the truck, no new tooling is needed. Nylon-insulated barrels need a tool with the correct nest for insulated terminals, not a bare-terminal die.
4) Are these disconnects rated for 600V motor control and HVAC work?
Rated 600V with a 105 degree C temperature rating, which covers line-voltage motor control, contactor and HVAC blower connections. The nylon insulation carries a UL 94 V-2 flammability rating, and the terminal is UL and CSA listed.
5) Will the RC10-250A hold up in vibration, like on a rooftop unit?
The female barrel is a brazed-seam serrated design, which is what gives it its tensile strength and keeps the crimp from opening up under pulling or vibration. Body is brass with an electro tin-plated finish for corrosion resistance at the contact surface.
6) How are these Thomas & Betts disconnects packaged and what is the minimum order?
They are sold each, but ordered in multiples of 50. Inner packs hold 50 and the outer carton holds 250. For MRO stocking, weight works out to 6.88 lbs per 1000 pieces, so a 250-count carton is light enough to shelf anywhere.
7) Are these terminals RoHS compliant for a spec job?
Yes, the RC10-250A is RoHS compliant under exemption 06, which covers the lead content in the brass alloy. Submittals for federal, healthcare and education work that call for RoHS documentation are satisfied on that basis.

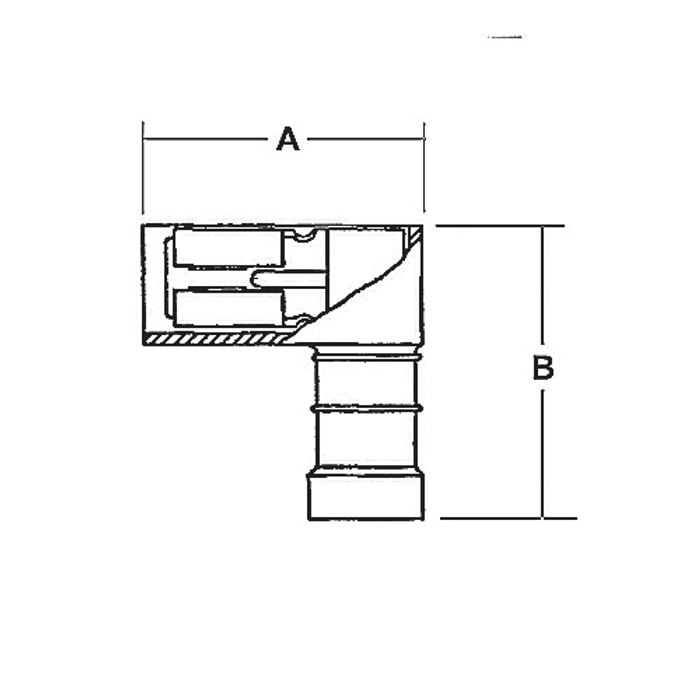

8) How big is the RC10-250A terminal body?
Two published dimensions: A is 0.8 inch and B is 0.88 inch. Worth checking against tight terminal blocks or a crowded contactor where adjacent disconnects have to sit side by side.
