Thomas & Betts RC Series Female Disconnect Terminal 250 Series 600V Insulated Nylon

Thomas & Betts RC Series Female Disconnect Terminal 250 Series 600V Insulated Nylon

Professional electrical connection solution with brazed seam construction

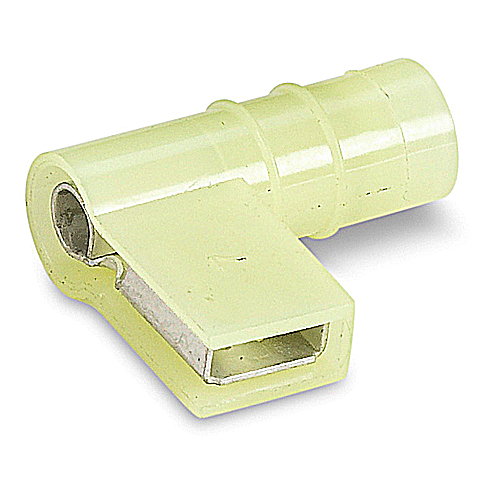

Thomas & Betts RC Series Female Disconnect Terminal delivers reliable electrical connections with 600V voltage rating and insulated nylon construction. The unique female disconnect design features brazed seam serrated barrel construction for maximum tensile strength and long-term dependability in professional electrical applications.

Professional Features & Benefits

• 600V Voltage Rating: Handles high-voltage applications safely with professional-grade electrical performance and reliability.
• Brazed Seam Serrated Barrel: Provides maximum tensile strength and secure connection integrity for demanding electrical installations.
• Insulated Nylon Construction: Offers excellent electrical insulation properties with 105�C temperature rating for versatile applications.
• UL 94 V-2 Flammability Rating: Meets stringent fire safety standards for professional electrical component applications.
• Electro Tin-Plated Finish: Ensures corrosion resistance and optimal electrical conductivity for long-lasting performance.
• UL and CSA Certifications: Provides assurance of safety and performance standards compliance for professional installations.
• 250 Series Design: Compatible with standard .250 x .032 tab size for versatile connection applications.

Technical Specifications

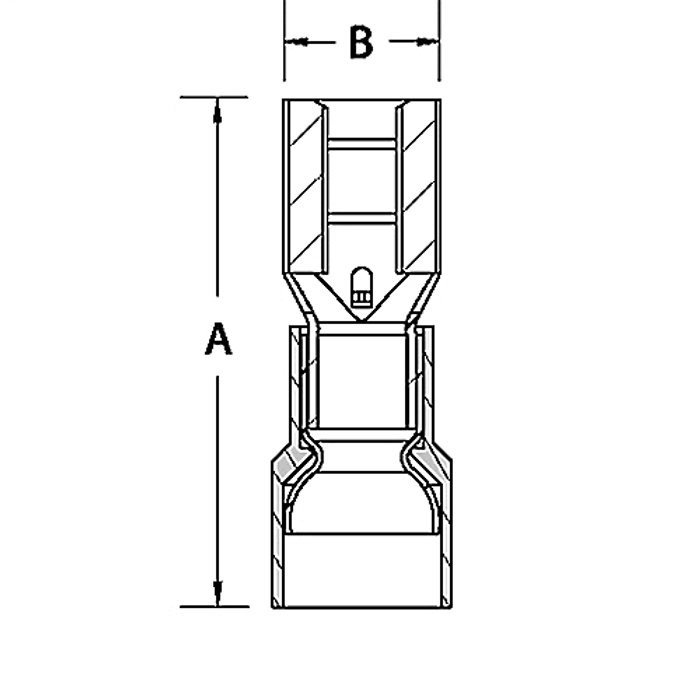

• A Inches: 1.1
• Alternate Package Qty: RC250
• Application Tools: WT145C, WT2000, WT112M, ERG4001, ERG4003
• B Inches: 0.29
• Color: Yellow
• Department: Electrical
• Disconnect Type: Female - 250 Series
• Flammability Rating: UL 94 V-2
• Inner Package: 50
• Insulation Type: Insulated Nylon
• Material: Brass
• Maximum Insulation Inches: 0.215
• Order Multiple: 50
• Outer Package: 250
• Package Height: 7.2
• Package Length: 10.25
• Package Type: Standard
• Package Width: 9
• Product Finish: Electro Tin-Plated
• Product Group: Circuit Protection
• Product Subgroup: Disconnects
• Recommended Tool: ERG4001
• Rohs Compliance: Yes (exemption 06)
• Stock Thickness: 0.04
• T B Sold In Uom: Each
• T B Weight Per Uom: 5.63 lbs. per 1000
• Tab Size: .250 x .032
• Temperature Rating: 105�C
• Terminal Series: RC
• Voltage Rating: 600V
• Wire Range: 10-Dec

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Control Panels and Electrical Enclosures
• Commercial Electrical Distribution Systems
• Motor Control Centers and Switchgear
• Professional Electrical Maintenance and Repair
• Circuit Protection and Disconnect Applications
• Electrical Equipment Manufacturing

Why Choose Thomas & Betts Quality?

Thomas & Betts RC Series disconnect terminals provide professional-grade reliability with UL and CSA certifications ensuring safety and performance compliance. The 105�C temperature rating and electro tin-plated finish deliver long-term durability for demanding electrical applications, backed by the trusted Thomas & Betts commitment to electrical component excellence.
