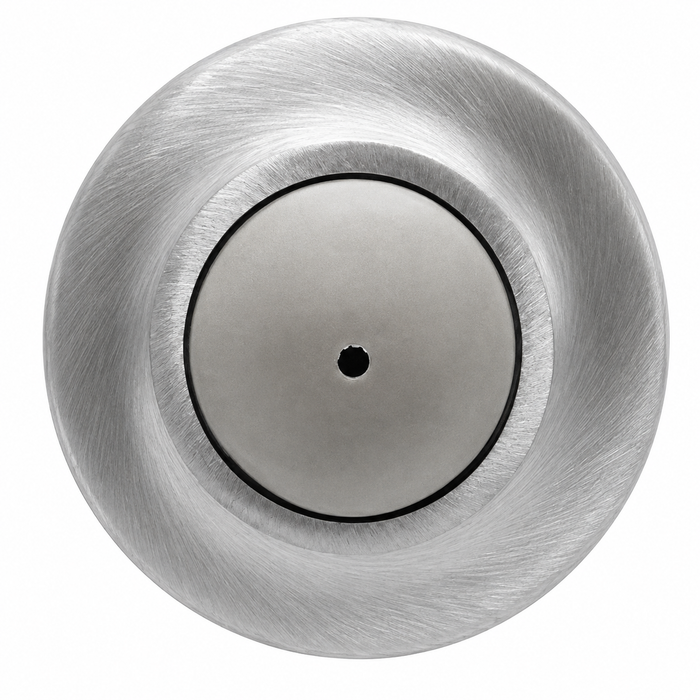

Don-Jo 1412 Wall Bumper Door Stop — 1" Projection, 2-1/2" Diameter, Cast Brass

Don-Jo 1412 Wall Bumper Door Stop — 1" Projection, 2-1/2" Diameter, Cast Brass

(No reviews yet) Write a Review

Model: 1412-626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$20.93
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 1412 Wall Bumper Door Stop — 1" Projection, 2-1/2" Diameter, Cast Brass

The Don-Jo 1412 is a commercial-grade wall bumper door stop crafted from durable cast brass, engineered to protect walls and door hardware from impact damage in high-traffic environments. Featuring a 1" projection and a 2-1/2" diameter bumper face, this unit provides reliable, low-profile protection without obstructing door swing or floor clearance. Compliant with ANSI L12101, the 1412 is available in four finishes — 605, 606, 613, and 626 — to coordinate with a wide range of commercial door hardware. Each unit ships with all required fasteners for straightforward installation.

Key Features

  • Compact 1" Projection: Low-profile 1" projection keeps the bumper close to the wall surface, minimizing trip hazards and maintaining a clean aesthetic in commercial spaces.
  • 2-1/2" Diameter Bumper Face: Generously sized 2-1/2" diameter contact surface distributes door impact force effectively, protecting wall finishes and door edges.
  • Cast Brass Construction: Solid cast brass material delivers exceptional durability and corrosion resistance, making this wall bumper well-suited for demanding commercial applications.
  • Multiple Finish Options: Available in finishes 605, 606, 613, and 626 to match existing door hardware and architectural requirements.
  • Complete Fastener Kit Included: Each unit includes 1 ea. #10 x 1-1/4" SMS screw, 1 ea. plastic anchor, and 1 ea. plastic drywall anchor for versatile mounting into a variety of wall substrates.
  • ANSI L12101 Compliant: Meets ANSI L12101 standards, ensuring consistent quality and performance for commercial door hardware applications.
  • Commercial-Grade Rated: Designed and specified for commercial use, providing the reliability required in office buildings, schools, healthcare facilities, and other high-traffic environments.

Certifications & Compliance

  • ANSI L12101 Compliant
  • Commercial Grade

Technical Specifications

  • Product Group: Door Trim and Accessories
  • Subcategory: Door Stops & Holders
  • Product Subgroup: Door Stops, Holders, Silencers & Bumpers
  • Product Type: Door Stops - Wall
  • Commercial/Residential: Commercial
  • Product Projection: 1"
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities and Schools
  • Healthcare Institutions and Medical Offices
  • Retail Establishments and Storefronts
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities

Why Don-Jo 1412?

Don-Jo wall bumper products are built to commercial specifications using solid cast brass construction, delivering the corrosion resistance and structural integrity required in demanding door hardware applications. The 1412 model meets ANSI L12101 standards and ships with a complete fastener kit, making it a dependable, installation-ready solution for protecting walls and door hardware in any commercial setting.

Product Specs

Product Group:
Door Trim and Accessories
Subcategory:
Door Stops & Holders
Product Subgroup:
Door Stops, Holders, Silencers & Bumpers
Product Type:
Door Stops - Wall
Commercial/Residential:
Commercial
Product Model:
1412
Product Diameter:
2 1/2"
Product Projection:
1"
Product Category:
Door Trim and Accessories
Product Substrate:
Cast Brass
Department:
Door Hardware

Don-Jo 1412-626 – Frequently Asked Questions

1) Will the Don-Jo 1412 wall bumper mount into drywall, or do I need a stud?
The 1412 ships with a #10 x 1-1/4 inch sheet metal screw, a plastic anchor, and a plastic drywall anchor, so it can go into drywall without hitting a stud. Hitting blocking or a stud is still the stronger install on a door that gets slammed, but the drywall anchor is in the box. One fastener set per unit, one screw per bumper.
2) How far off the wall does the Don-Jo 1412 hold the door?
One inch of projection, with a 2-1/2 inch diameter face. That is a short bumper, so it only works where the door leaf or the lever comes within an inch of the wall at full swing. If your lever handle strikes the wall before the door edge does, or the baseboard pushes the bumper out, you need a longer wall stop instead, such as the ABH RM Series, which is offered in multiple lengths.
3) What is the right wall stop when the lever hits the wall before the 1412 can catch the door?
Swap to a longer-projection wall stop. The 1412 gives you a fixed 1 inch, so it cannot reach a door that stops short of the wall. The ABH RM Series and ABH RMS Series wall door stops are both offered in multiple lengths for exactly that condition. If the geometry is the other way round and the door needs to be held open rather than just stopped, look at a wall holder like the Ives WS20 with its hinged strike, or the automatic Ives WS40.
4) Which Don-Jo 1412 finish matches the satin chrome and oil rubbed bronze hardware already in my building?
Order 626 for satin chrome and 613 for oil rubbed bronze. The 1412 comes in four finishes total, the other two being 605 polished brass and 606 satin brass. Those are the standard BHMA finish codes your lockset and closer are already specified in, so matching is a code-to-code match rather than an eyeball match. Finish is the only thing you select on the 1412, the projection and diameter do not change.
5) Does the Don-Jo 1412 meet the ANSI door stop spec on my drawing?
The 1412 is compliant with ANSI L12101, the wall bumper designation, and it is specified for commercial use. If the hardware schedule calls out L12101 for the wall stop line item, this satisfies it.
6) Will a Don-Jo 1412 hold a door open, or does it only stop it?
The Don-Jo 1412 is a wall bumper: it takes the door's impact and protects the wall, and it does not latch the door in the open position. If the requirement is holding the door open, the Ives WS20 manual wall holder uses a hinged strike that catches the door and is made for drywall and masonry, and the Ives WS40 automatic wall holder catches on contact with a heavy duty bumper pad. Buyers replacing a holder with a 1412 lose the hold-open function, which is the most common mis-substitution on this part.
7) What is the closest equivalent to a Don-Jo 1412 wall bumper from another brand?
The Don-Jo 1412 is a cast brass wall bumper with a 2-1/2 inch diameter face and 1 inch projection. The nearest like-for-like is the Emtek 2255 brass wall bumper with regular rosette, which is also a brass wall-mounted bumper rather than a rubber-tipped stop assembly. The Delaney 2-1/4 inch concave wall bumper is the other close wall bumper, with a concave face slightly smaller in diameter than the 1412's 2-1/2 inch face. All three mount to the wall and take the door edge on a bumper face, so any of them fits an opening where the door swings into a wall.
8) The wall behind the door is drywall with no blocking and the door hits hard. Is a 1412 wall bumper the right choice?
The Don-Jo 1412 ships with a #10 x 1-1/4 inch screw plus a plastic anchor and a plastic drywall anchor, so it can be set into drywall, but a 1 inch projection bumper concentrates impact on a single fastener point. For repeated hard impact the Ives WS11 heavy duty wall stop, rated heavy duty and made for drywall and masonry with a replaceable rubber bumper, spreads the job differently and lets the bumper be renewed rather than the whole unit replaced. The Ives WS33/WS33X is the other heavy-duty wall stop with a replaceable rubber bumper. Where the wall cannot be trusted at all, the Delaney 3 inch HD rigid door stop mounts to the door itself instead.
9) The door does not reach the wall. What goes in place of a 1412 wall bumper?
The Don-Jo 1412 mounts to the wall, so it only works where the door swing actually brings the edge to that wall. When the door stops short, or a wall stop would land in glass or open space, the Delaney 3 inch HD rigid door stop and the Delaney 3 inch spring door stop are the alternatives, both stops that work from the door or base rather than the far wall. The spring version flexes on contact; the HD rigid version does not.
10) Is the Don-Jo 1412 solid brass or brass plated?
Cast brass, solid through the body rather than a plated shell. That is why it holds up in exterior-adjacent corridors and wet-cleaned areas where a plated steel stop pits at the fastener hole. The finish is applied over that brass casting in four options: 605 polished brass, 606 satin brass, 613 oil rubbed bronze, and 626 satin chrome.
11) Do I need a wall bumper or a floor stop for a door that swings into a corridor?
A wall bumper like the 1412 mounts on the wall behind the door and takes the impact on a 2-1/2 inch face, so nothing sits on the floor to trip over or to block a mop. That is the usual call in a corridor. A floor stop is the better choice when the door swings into open space with no wall behind it, or when the wall is glass or millwork you cannot drill. The 1412 needs a wall in range, since its 1 inch projection means the door has to come nearly to the wall.
12) Can the rubber bumper on the Don-Jo 1412 be replaced when it wears out?
Plan on replacing the whole 1412 unit rather than a bumper pad. If field-replaceable rubber matters to you, and in a school or hospital corridor it usually does, the Ives WS11 and Ives WS33 heavy duty wall stops both carry replaceable rubber bumpers and mount to drywall or masonry.
13) What is the difference between the Don-Jo 1412 wall bumper and a spring or rigid door stop?
Different mounting point entirely. The 1412 fastens to the wall and catches the door face. A spring stop such as the Delaney 3 inch spring door stop, or a rigid stop like the Delaney 3 inch HD rigid door stop, fastens to the door or the base and flexes or blocks at that end. Use the wall bumper when there is solid wall behind the swing and you want the impact taken on a 2-1/2 inch brass face; use a base-mounted stop when the wall behind the door is not something you can anchor into.
14) For a corridor where the door swings past the wall and needs to reach a stop further out, what works instead of a 1412?
The Don-Jo 1412 has a 1 inch projection, which is deliberately low profile and only reaches a door edge sitting close to the wall. Where the door edge stands off further, the ABH RM series and ABH RMS series wall door stops both come in multiple length options, so the projection can be selected to meet the door where it lands rather than forcing a base or floor stop into the walkway.
15) Standardizing wall stops across a building. What is the difference between the Don-Jo 1412 and the Ives WS33?
Both mount to the wall and stop the door. The Don-Jo 1412 is cast brass with a fixed 2-1/2 inch diameter face and 1 inch projection, offered in 605 polished brass, 606 satin brass, 613 oil rubbed bronze, and 626 satin chrome, so it coordinates with brass and bronze trim already in the building. The Ives WS33/WS33X is a heavy-duty wall door stop with a replaceable rubber bumper, meaning the wear part is serviced separately from the body. A facility standardizing on serviceable wear parts leans to the WS33; one matching an existing brass hardware suite leans to the 1412.
16) A wall stop was removed and left a hole in the wall. Is another 1412 the fix?
Only if the door still swings to that wall. The Don-Jo 1412 is a functioning wall bumper and its 2-1/2 inch cast brass face will cover the area it is anchored through. If the stop is being abandoned rather than replaced, the Delaney 2-1/8 inch hole plate metal cover is the part that closes the opening without adding a stop back to the wall.
17) Is the Ives WS40 an equivalent to the Don-Jo 1412 wall bumper?
No. The Ives WS40 is an automatic wall holder with a heavy duty bumper pad and is rated light duty, and it catches and holds the door open rather than simply stopping it. The Don-Jo 1412 is a commercial cast brass wall bumper with a 1 inch projection that stops the door and releases it immediately. Swapping one for the other changes how the door behaves at the end of its swing.
18) Is there a smaller wall bumper than the Don-Jo 1412 for a tight reveal?
The 1412 face is 2-1/2 inches across. If you need a smaller footprint on the wall, the Delaney 2-1/4 inch concave wall bumper is a narrower face, and the Emtek 2255 brass wall bumper uses a regular rosette. All three take the hit on the wall side, so the choice comes down to how much wall you want covered and which finish family the rest of the door hardware is in.
19) How many Don-Jo 1412 bumpers do I need to order to do a floor of offices?
One per door leaf. Each 1412 comes as a single bumper with its own fastener set, one screw, one plastic anchor, and one drywall anchor, so a 40-door floor is 40 units. Order them all in one finish code (605, 606, 613, or 626) so the corridor reads consistently, since finish is selected per unit.
20) Which wall bumper has the larger contact face, the Don-Jo 1412 or the Delaney concave wall bumper?
The Don-Jo 1412 has a 2-1/2 inch diameter bumper face. The Delaney wall bumper is a 2-1/4 inch concave design. The 1412's face is flat-fronted cast brass across the full 2-1/2 inch; the Delaney is concave, which seats a door edge or knob differently. On a wall where the door hardware strikes rather than the door edge itself, the shape of the face matters as much as the diameter.
