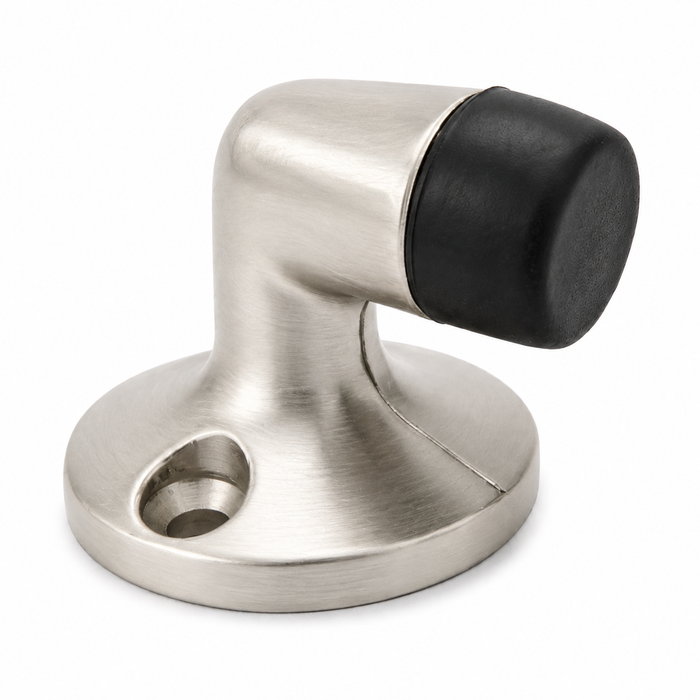

Don-Jo 1432 Floor Door Stop in Cast Aluminum with 1-1/4" Base and 1-5/16" Height

The Don-Jo 1432 is a commercial-grade cast aluminum floor door stop engineered to protect walls, baseboards, and door hardware from impact damage in high-traffic environments. Featuring a compact 1-1/4" base and a 1-5/16" height profile, this floor stop delivers a low-profile yet sturdy solution for controlling door swing at the floor level. Secured with included #8 x 1" SMS fasteners, the 1432 installs directly into the floor for a stable, reliable hold. Available in five finishes — 605, 613, 619, 620, and 626 — to coordinate with a wide range of commercial door hardware.

Key Features

  • Compact Base Dimension: 1-1/4" base provides a low-profile footprint suitable for commercial floor installations without obstructing foot traffic.
  • Precise Height Profile: 1-5/16" height effectively stops door swing while maintaining a discreet, unobtrusive appearance at floor level.
  • Cast Aluminum Construction: Durable cast aluminum material offers excellent strength-to-weight ratio and long-term corrosion resistance for demanding commercial applications.
  • Included Fasteners: Comes with #8 x 1" SMS fasteners for straightforward, secure floor mounting without the need for additional hardware.
  • Multiple Finish Options: Available in finishes 605, 613, 619, 620, and 626 to match existing door hardware and architectural aesthetics.
  • Commercial-Grade Durability: Designed and rated for commercial use, making it suitable for high-traffic doors in offices, institutions, and public facilities.
  • Convenient Shelf Pack: Sold in shelf packs of 10, ideal for contractors and facility managers stocking multiple units for large-scale projects.

Certifications & Compliance

  • Rated for Commercial Use
  • Product Category: Door Trim and Accessories — Door Stops & Holders

Technical Specifications

  • Product Group: Door Trim and Accessories
  • Subcategory: Door Stops & Holders
  • Product Subgroup: Door Stops, Holders, Silencers & Bumpers
  • Product Type: Door Stops - Floor
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities and Schools
  • Healthcare Institutions and Medical Offices
  • Retail Establishments and Storefronts
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential and Apartment Properties
  • Government and Municipal Buildings

Why Don-Jo 1432?

Don-Jo's 1432 Floor Stop is built from cast aluminum to deliver lasting performance in commercial door hardware applications where durability and finish consistency matter. With a precisely dimensioned 1-1/4" base and 1-5/16" height, this stop provides reliable door control while maintaining a clean, professional appearance. Engineered for commercial environments and available in five coordinating finishes, the Don-Jo 1432 is a dependable choice for contractors and facility professionals seeking quality door stop solutions.

Product Specs

Product Group:
Door Trim and Accessories
Subcategory:
Door Stops & Holders
Product Subgroup:
Door Stops, Holders, Silencers & Bumpers
Product Type:
Door Stops - Floor
Commercial/Residential:
Commercial
Product Model:
1432
Product Category:
Door Trim and Accessories
Product Substrate:
Cast Aluminum
Department:
Door Hardware

Don-Jo 1432-626 – Frequently Asked Questions

1) How tall is the Don-Jo 1432 floor stop, and will it actually catch the bottom of my door?
The 1432 stands 1-5/16 inches tall off the finished floor on a 1-1/4 inch base. That height is what has to clear the undercut at the bottom of your door: if the gap between the door bottom and the floor is more than 1-5/16 inches, the door will ride over the stop instead of hitting it. Measure the undercut first. Where the gap is larger, a taller gooseneck style stop that contacts the door face rather than the edge is the right call.
2) Does the Don-Jo 1432 come with mounting screws, or do I need to buy anchors separately?
Screws are in the box. The 1432 ships with #8 x 1 inch sheet metal screws, which is what you need for a wood subfloor or a solid backing. Concrete or tile is a different story: the included SMS fasteners are not masonry anchors, so on a concrete slab you will want to drill and set a lead or plastic anchor sized to the #8 screw before mounting.
3) Will the Don-Jo 1432 hold a door open, or does it only stop it?
Stop only. The 1432 arrests the door swing at the floor and nothing more; there is no catch or holder mechanism. If you need the door to stay open (a classroom during passing periods, a loading corridor), look at a holder instead. The Ives FS40 / FS41 / FS42 / FS43 is an automatic floor stop and holder, the Orca 22HD gooseneck is listed as a door holder, and the SOSS MDH is a magnetic door holder and stop.
4) What is a close equivalent to the Don-Jo 1432 floor stop if I need a low-profile dome stop from another brand?
The Orca Hardware 23LP Series is a low rise dome floor stop with a gray tip and is catalogued as a door stop function, which puts it in the same low-profile floor-mounted role as the Don-Jo 1432 cast aluminum floor stop with its 1-1/4 inch base and 1-5/16 inch height. The Ives FS17 is another dome-style floor stop, built in brass with a rubber bumper. The main difference is material: the 1432 is cast aluminum, while the FS17 is brass.
5) The Don-Jo 1432 only stops the door. What should I use instead if I also need to hold the door open?
The 1432 is a floor stop only, so for hold-open you want a different device. The Orca Hardware 22HD Series goose neck floor stop is catalogued with a door holder function and fits 1-3/8 inch or 1-3/4 inch doors. The Ives FS40 / FS41 / FS42 / FS43 is an automatic floor stop and holder in a heavy duty build, and the SOSS MDH is a magnetic door holder and stop measuring 3-5/16 inch by 1-3/4 inch. All three keep the door parked open, which a plain dome stop will not do.
6) My door needs a taller stop than the 1-5/16 inch Don-Jo 1432. What floor stop reaches higher?
When the door bottom clears the floor by more than the 1432's 1-5/16 inch height, a goose neck style reaches up to meet the door instead. The Delaney Gooseneck Floor Door Stop, the Emtek 2253 Goose Style Door Stop, and the Orca Hardware 22HD Series goose neck floor stop with black tip are all built on that taller riser geometry. The Orca 22HD is catalogued for 1-3/8 inch or 1-3/4 inch doors.
7) What finishes does the Don-Jo 1432 floor stop come in so I can match the rest of my door hardware?
Five finishes, all standard BHMA numbers so they coordinate with commercial lock and hinge trim: 605 polished brass, 613 oil rubbed bronze, 619 satin nickel, 620 antique nickel, and 626 satin chrome. If the building is standardized on 626, that is the most common commercial pairing.
8) Is a cast aluminum floor stop tough enough for a school or hospital corridor door?
The 1432 is cast aluminum and rated for commercial use, which is the material choice for corridor and public-area doors where you want corrosion resistance and a finish that holds up to mopping and floor scrubbers. It is a solid-body stop, not a spring stop, so it takes the hit directly. On a very heavy door slammed by wind or high traffic, a heavy-duty brass dome stop like the Ives FS13 or FS17, which uses a replaceable rubber bumper, is worth considering so the wear part can be swapped instead of the whole stop.
9) Floor stop or wall stop, which should I use on my commercial door?
A floor stop like the Don-Jo 1432 mounts into the floor and catches the door before it reaches the wall, so it works where there is no solid wall backing behind the door swing, where the door opens into a corner, or where drywall alone will not hold a wall bumper. The downside is the same in every building: a 1-5/16 inch stop sits in the walking path and gets caught by mop heads and carts. If you have solid blocking in the wall at the right height, a wall stop keeps the floor clear. Where the floor stop is unavoidable, keep it tight to the door in the open position rather than out in the traffic lane.
10) Is the Deltana UFB4505 a direct substitute for the Don-Jo 1432?
They fill the same spot on the floor but they are not the same part. The Deltana UFB4505 is a round universal floor door bumper measuring 1-1/2 inch in solid brass, while the Don-Jo 1432 is cast aluminum with a 1-1/4 inch base and 1-5/16 inch height. The Deltana family also includes the UFBS138 square bumper at 1-3/8 inch and the UFBP4505 with a pattern cap at 1-5/8 inch. If you are matching an existing run of Don-Jo cast aluminum stops, the brass bumpers will read differently in both material and profile.
11) For a high-abuse commercial opening, what floor stop should I consider alongside the Don-Jo 1432?
The Don-Jo 1432 is rated for commercial use in cast aluminum. If the opening takes real abuse, Ives offers heavy duty brass floor dome stops: the FS13 with a replaceable rubber bumper, the FS17 with a rubber bumper, and the FS18S/FS18L security floor stop. The replaceable bumper on the FS13 matters where the strike point wears and you would rather swap a bumper than pull the stop.
12) What is a simpler residential-style alternative to the Don-Jo 1432 floor stop?
The Don-Jo 1432 is built for commercial openings in cast aluminum. For lighter residential doors, the Sure-Loc DS-FL2 is a cylindrical floor stop made for residential doors, and the Sure-Loc DS-FL1 is a floor stop with a spring in modern door stop designs. The Emtek 2254 floor door bumper at 1-3/8 inch by 1-1/4 inch and the Emtek 2257 cylindrical floor bumper at 1-1/2 inch cover the same decorative territory.
13) I'm outfitting a whole building. How is the Don-Jo 1432 packaged for bulk orders?
It is sold in shelf packs of 10, which is the practical unit when you are doing a floor of offices or a corridor run and want one part number, one finish, across every opening. Fasteners are included with the stops, so there is no separate hardware line to add.
14) Is the Don-Jo 1432 the right stop for apartment unit doors, or is it overkill?
It suits both. The 1432 is a commercial-rated cast aluminum stop, and multi-tenant residential is one of the environments it is built for, where turnover traffic chews through lighter stops. If you are doing interior residential doors only and want something lighter, Sure-Loc makes a cylindrical floor stop for residential doors and Emtek offers the 2254 floor door bumper at 1-3/8 by 1-1/4 inches.
15) I want a decorative floor stop instead of the plain Don-Jo 1432. What are my options?
The Don-Jo 1432 is a plain cast aluminum dome-profile stop offered in polished brass, oil rubbed bronze, satin nickel, antique nickel, and satin chrome. For a more ornamental look, the Deltana UFBD3505 is a 3-1/2 inch round universal floor bumper in a decorative solid brass style, and the Deltana UFBP4505 carries a pattern cap at 1-5/8 inch. The Emtek 2251 half dome door stop and the Delaney Dome Door Stop are other styled dome options.
