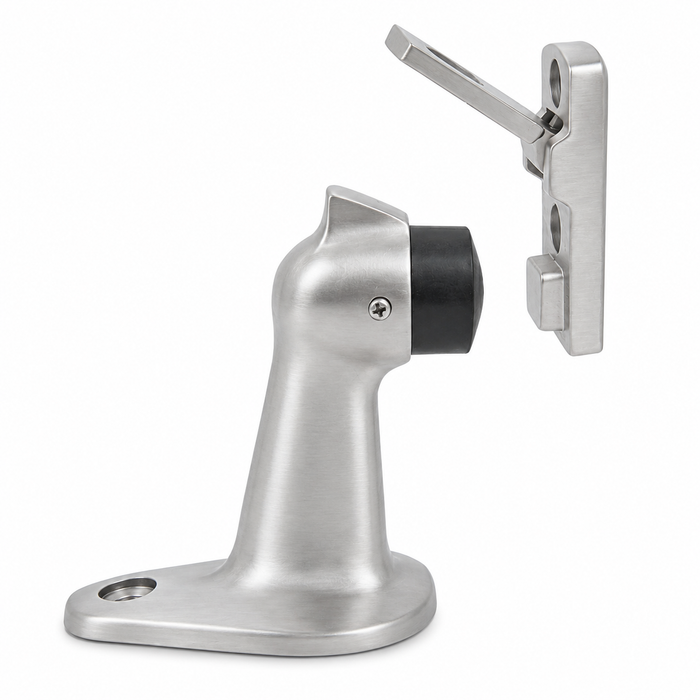

Don-Jo 1453 Floor Door Stop, 2-1/2" x 1-1/2" Base, 3" Height, Cast Brass

Don-Jo 1453 Floor Door Stop, 2-1/2" x 1-1/2" Base, 3" Height, Cast Brass

(No reviews yet) Write a Review

Model: 1453-626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$44.00
$38.65
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 1453 Floor Door Stop — Cast Brass, 2-1/2" x 1-1/2" Base, 3" Height

The Don-Jo 1453 is a heavy-duty commercial floor door stop crafted from solid cast brass, delivering lasting durability and a refined appearance in demanding environments. Measuring 3" in height with a 2-1/2" x 1-1/2" base, this floor stop provides a stable, low-profile solution for protecting walls, baseboards, and door frames from impact damage. Compliant with ANSI L13171, the 1453 is available in three finishes — 605, 613, and 626 — and ships with a comprehensive fastener package to accommodate a variety of floor substrates and installation scenarios.

Key Features

  • Precise Dimensions: 3" height and 2-1/2" x 1-1/2" base provide a stable, low-profile footprint ideal for commercial floor installations.
  • Cast Brass Construction: Solid cast brass material delivers exceptional strength, corrosion resistance, and a premium aesthetic suited for commercial applications.
  • Multiple Finish Options: Available in finishes 605, 613, and 626 to coordinate with a wide range of door hardware and interior design schemes.
  • Comprehensive Fastener Package Included: Ships with 1 ea. 5/16-18 x 2-5/8" MS Stud, 1 ea. 5/16-18 x 2-5/8" SMS Stud, 2 ea. #8 x 1" SMS, 1 ea. 14-20 x 1-1/4" MS, 1 ea. 1/4 x 1-1/2" SMS, 3 ea. Plastic Anchors, and 1 ea. Lead Expansion Shield for versatile substrate compatibility.
  • Convenient Shelf Pack Quantity: Sold in shelf packs of 10, making this stop efficient for contractors and facility managers stocking multiple openings.
  • Commercial-Grade Performance: Engineered and rated for commercial use, providing reliable door protection in high-traffic settings.

Certifications & Compliance

  • ANSI L13171 Compliant
  • Commercial Grade

Technical Specifications

  • Product Group: Door Trim and Accessories
  • Subcategory: Door Stops & Holders
  • Product Subgroup: Door Stops, Holders, Silencers & Bumpers
  • Product Type: Door Stops - Floor
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities

Why Don-Jo 1453?

Don-Jo's 1453 Floor Door Stop is built from solid cast brass to meet the rigorous demands of commercial door hardware applications, offering both structural integrity and a polished finish in three available options. Its ANSI L13171 compliance and all-inclusive fastener kit make it a dependable, installation-ready choice for professionals seeking a reliable floor stop solution across a variety of substrates and settings.

Product Specs

Product Group:
Door Trim and Accessories
Subcategory:
Door Stops & Holders
Product Subgroup:
Door Stops, Holders, Silencers & Bumpers
Product Type:
Door Stops - Floor
Commercial/Residential:
Commercial
Product Model:
1453
Product Category:
Door Trim and Accessories
Product Substrate:
Cast Brass
Department:
Door Hardware

Don-Jo 1453-626 – Frequently Asked Questions

1) How tall is the Don-Jo 1453 floor stop, and will it catch the bottom rail of a standard commercial door?
The 1453 stands 3 inches tall on a 2-1/2 by 1-1/2 inch base. That height puts the bumper well up into the bottom rail of a typical commercial door, so it stops the door face rather than skidding under it. The base footprint is small enough to keep it from becoming a trip hazard in a corridor.
2) What fasteners come with the Don-Jo 1453, and can I mount it into concrete?
The fastener kit covers most floor substrates: 1 ea 5/16-18 x 2-5/8 inch MS stud, 1 ea 5/16-18 x 2-5/8 inch SMS stud, 2 ea #8 x 1 inch SMS, 1 ea 14-20 x 1-1/4 inch MS, 1 ea 1/4 x 1-1/2 inch SMS, 3 plastic anchors, and 1 lead expansion shield. The lead expansion shield with the machine screw stud is the concrete anchor in that kit, so yes, concrete is covered. Plastic anchors handle hollow or softer substrates, and the sheet metal screws handle wood subfloor.
3) Does the Don-Jo 1453 meet ANSI door stop requirements for a commercial spec?
The 1453 is listed as compliant with ANSI L13171 and is a commercial grade stop. If your drawing calls out L13171 for floor stops, this one answers the callout directly.
4) I need something lower profile than a 3 inch floor stop so it does not catch mop carts. What else is there?
At 3 inches the 1453 is a tall stop by design, sized to meet the door rail. If the height is a problem in a high traffic corridor, low rise dome and bumper styles sit much closer to the floor: the Orca Hardware 23LP Series is a low rise dome floor stop, the Emtek 2254 floor door bumper measures 1-3/8 by 1-1/4 inches, and the Deltana UFBS138 square universal floor bumper is 1-3/8 inches. Keep in mind a low bumper only works if the door bottom rail or an applied kick plate is deep enough to contact it.
5) I need the door to stay open, not just stop. Is the Don-Jo 1453 the wrong part?
Yes, if holding is the requirement. The Don-Jo 1453 is a floor stop that arrests the door swing and nothing more. For hold-open, the Ives FS40 / FS41 / FS42 / FS43 are heavy duty automatic floor stops and holders, and the SOSS MDH is a heavy duty magnetic door holder and stop measuring 3-5/16 inches by 1-3/4 inches. The Orca 22HD Series goose neck is also listed as a door holder. A buyer standardizing a corridor often uses a plain stop like the 1453 at most openings and a holder only where the door has to be parked open.
6) What is a comparable heavy-duty brass floor dome stop to the Don-Jo 1453?
The Ives FS13 is a heavy-duty brass floor dome stop with a replaceable rubber bumper, and the Ives FS17 is a heavy-duty brass floor dome stop with a rubber bumper. Both are brass-bodied heavy duty floor stops in the same role as the Don-Jo 1453, which is a commercial cast brass floor stop with a 3 inch height and a 2-1/2 inch by 1-1/2 inch base. The main difference is profile: the 1453 is a taller upright stop, while the FS13 and FS17 are dome-shaped. If a maintenance crew wants a bumper they can replace without pulling the stop off the floor, the FS13 is the one of the three that calls out a replaceable bumper.
7) The Don-Jo 1453 floor stop is too tall to clear the door bottom on a door with a large undercut. What should I use instead?
The Don-Jo 1453 stands 3 inches tall, which is what lets it catch the door face rather than the bottom rail. When an undercut or a thick floor covering means you need the strike point lower, a goose neck stop reaches up to the door instead: the Orca Hardware 22HD Series goose neck floor stop with black tip is built for 1-3/8 inch or 1-3/4 inch doors and functions as a door holder, and the Emtek 2253 Goose Style door stop and Delaney Gooseneck floor door stop are the same upright reaching style. Going the other direction, the Orca 23LP Series is a low rise dome floor stop for openings where a tall stop is in the way.
8) Is the Don-Jo 1453 solid brass or plated pot metal?
Solid cast brass throughout, not a plated zinc casting. That matters on exterior vestibules and wet-mopped corridors where a pot metal stop corrodes at the base and snaps off.
9) Is a floor stop the right choice, or should I be using a wall stop?
Use a floor stop like the 1453 when the wall behind the door swing is too far back, is glass, or is a partition that will not take an anchor, and when there is solid floor to land on. It bolts down at the swing point and takes the impact into the slab. Wall stops are simpler but need backing behind the drywall at the right height. Floor stops do put a fixture in the walking path, which is why the 1453 keeps to a 2-1/2 by 1-1/2 inch base.
10) Is the Don-Jo 1453 handed, or does one part number work on both left and right swing doors?
One part number covers every opening. The 1453 mounts to the floor and the door face strikes it, so there is no handing, no strike prep, and no frame work. You only need to decide the finish and locate the stop so the door contacts it before the lever hits the wall.
11) Is a small brass floor bumper an equal substitute for the Don-Jo 1453?
Not for the same duty. The Don-Jo 1453 is a commercial cast brass floor stop with a 3 inch height and an ANSI L13171 designation. The Deltana universal floor bumpers are solid brass but much smaller and lower: the UFB4505 round bumper is 1-1/2 inches, the UFBP4505 pattern cap bumper is 1-5/8 inches, the UFBS138 square bumper is 1-3/8 inches, and the UFBD3505 decorative round bumper is 3-1/2 inches. The Emtek 2254 floor door bumper is 1-3/8 inches by 1-1/4 inches and the Emtek 2257 cylindrical floor bumper is 1-1/2 inches. Those low bumpers contact the bottom of the door, so they suit lighter residential-style openings, while the 1453 is the commercial-rated choice for high-traffic doors.
12) Which floor stop should I spec instead of the Don-Jo 1453 in a detention or high-abuse opening?
Look at the Ives FS18S/FS18L security floor stop, a heavy duty stop built for openings where a standard stop invites tampering. The Don-Jo 1453 is a heavy-duty commercial cast brass stop suited to offices, schools, healthcare, retail and multi-tenant residential buildings, but it is a conventional exposed-fastener stop. In corrections, behavioral health or similar abuse-resistant work, the security stop is the appropriate substitution.
13) What finishes does the Don-Jo 1453 floor stop come in?
Three finishes: 605 polished brass, 613 oil rubbed bronze, and 626 satin chrome. If you are matching existing openings, 626 is the usual pick alongside satin chrome commercial lever trim, and 613 matches dark bronze pulls and hinges.
14) I am buying floor stops for a whole building. How is the Don-Jo 1453 packed?
The 1453 ships in shelf packs of 10, with a full fastener kit in each. For a property manager or MRO buyer refitting a corridor of openings, that lets you count packs against door count instead of piecing together loose hardware, and every stop arrives with anchors for whatever substrate the floor turns out to be.
15) What is a simpler dome-style alternative to the Don-Jo 1453 for a residential or light-duty door?
The Delaney Dome door stop and the Orca Hardware 23LP Series low rise dome floor stop are both simple dome-profile floor stops, and the Emtek 2251 Half Dome door stop is a half-dome version of the same idea. The Sure-Loc DS-FL1 floor stop with spring and the Sure-Loc DS-FL2 cylindrical floor stop are aimed at residential doors. Compared with any of them, the Don-Jo 1453 is a commercial-rated cast brass stop with a 2-1/2 inch by 1-1/2 inch base and a fastener kit covering wood, concrete and other substrates, which is more stop than a light-traffic interior door usually calls for.
16) If I want the floor stop to be a decorative element rather than plain hardware, what are my options next to the Don-Jo 1453?
The Don-Jo 1453 is finished cast brass offered in polished brass, oil rubbed bronze and satin chrome, so it coordinates with common lever and hinge finishes while keeping a plain commercial profile. For a more ornamental look, the Deltana UFBD3505 is a decorative round universal floor bumper at 3-1/2 inches in solid brass, and the Deltana UFBP4505 uses a patterned cap at 1-5/8 inches. Both sit lower than the 1453 and are aimed at finish-driven interiors rather than high-traffic commercial corridors.
