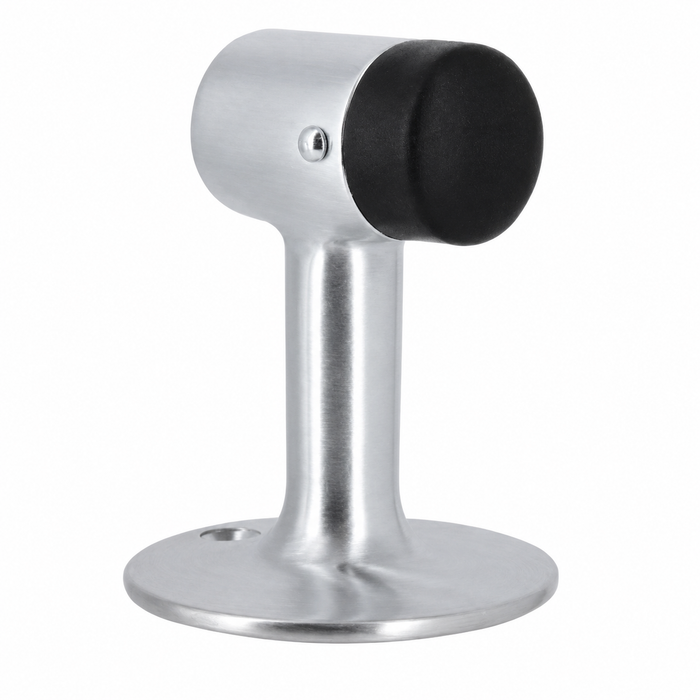

Don-Jo 1471 Floor Door Stop in Cast Brass with Complete Mounting Hardware

Don-Jo 1471 Floor Door Stop in Cast Brass with Complete Mounting Hardware

(No reviews yet) Write a Review

Model: 1471-626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$35.25
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 1471 Floor Door Stop in Cast Brass with Complete Mounting Hardware

The Don-Jo 1471 is a commercial-grade cast brass floor door stop engineered for durability and reliable door control in demanding environments. Measuring 3-1/8" in height with a 2-1/4" base, this floor stop ships with a complete mounting hardware kit — including a 5/16-18 x 2-5/8" MS Stud, a 1/16-18 x 2-5/8" SMS Stud, a #10 x 1" SMS, a plastic anchor, and a lead expansion shield — ensuring straightforward installation on a variety of floor surfaces. Available in finishes 605, 613, and 626 to complement a wide range of commercial door hardware, the 1471 meets ANSI L12131 standards for professional-grade performance.

Key Features

  • Precise Dimensions: 3-1/8" height x 2-1/4" base profile provides a low-profile, sturdy footprint suitable for commercial floor installations.
  • Cast Brass Construction: Solid cast brass material delivers exceptional strength, corrosion resistance, and long-term durability for high-traffic commercial applications.
  • Complete Mounting Hardware Included: Each unit includes 1 ea. 5/16-18 x 2-5/8" MS Stud, 1 ea. 1/16-18 x 2-5/8" SMS Stud, 1 ea. #10 x 1" SMS, 1 ea. Plastic Anchor, and 1 ea. Lead Expansion Shield for versatile installation options.
  • Multiple Finish Options: Available in finishes 605, 613, and 626 to coordinate with existing door hardware and architectural aesthetics.
  • ANSI Compliant: Meets ANSI L12131 standards, confirming suitability for commercial door hardware applications.
  • Commercial-Grade Reliability: Classified for commercial use, making it appropriate for offices, institutions, and high-traffic facilities requiring dependable door control.
  • Convenient Shelf Pack: Packaged in shelf packs of 10 for efficient procurement and inventory management on larger projects.

Certifications & Compliance

  • ANSI L12131 Compliant
  • Commercial-Grade Classification

Technical Specifications

  • Product Group: Door Trim and Accessories
  • Subcategory: Door Stops & Holders
  • Product Subgroup: Door Stops, Holders, Silencers & Bumpers
  • Product Type: Door Stops - Floor
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 1471?

Don-Jo 1471 Floor Door Stops are crafted from solid cast brass, delivering the structural integrity and corrosion resistance required for long-term performance in commercial environments. ANSI L12131 compliance and a comprehensive mounting hardware kit make the 1471 a dependable, installation-ready solution for professionals seeking quality door control hardware.

Product Specs

Product Group:
Door Trim and Accessories
Subcategory:
Door Stops & Holders
Product Subgroup:
Door Stops, Holders, Silencers & Bumpers
Product Type:
Door Stops - Floor
Commercial/Residential:
Commercial
Product Model:
1471
Product Category:
Door Trim and Accessories
Product Substrate:
Cast Brass
Department:
Door Hardware

Don-Jo 1471-626 – Frequently Asked Questions

1) Will the Don-Jo 1471 floor stop mount to a concrete floor, or only wood?
Both. The 1471 ships with the fasteners for either substrate: a 5/16-18 x 2-5/8 inch MS stud and a lead expansion shield for concrete or masonry, plus a #10 x 1 inch sheet metal screw and a plastic anchor for wood or hollow substrates. There's also a 1/16-18 x 2-5/8 inch SMS stud in the kit. You don't need to source anchors separately for a typical commercial floor.
2) How tall is the Don-Jo 1471 floor stop, and will the door clear it?
The 1471 stands 3-1/8 inches high on a 2-1/4 inch base. That height is what catches a door with an undercut over standard carpet or a raised threshold, but it also means anything sitting on the floor within the stop's radius, a mat edge or a door sweep on a tall undercut, has to clear 3-1/8 inches. If you need a lower profile stop, a dome type sits much closer to the floor.
3) What's the difference between a floor stop like the Don-Jo 1471 and a low dome or bumper stop?
Height, and what the door hits. The 1471 is a 3-1/8 inch upright stop, tall enough to catch the face or bottom rail of the door away from the floor. A dome or bumper sits low and takes the strike near the door's bottom edge, which is why it needs a tighter door-to-floor clearance to work at all. Low profile options we carry include the Orca 23LP Series low rise dome floor stop, the Ives FS13 and FS17 brass floor dome stops, and the Deltana UFBS138 square universal floor bumper at 1-3/8 inches.
4) Does the Don-Jo 1471 meet the ANSI spec our architect called out for floor stops?
The 1471 meets ANSI L12131. If your hardware schedule lists L12131 for the floor stop line item, this is a direct match, and it's classified for commercial use across offices, schools, healthcare, retail, industrial, multi-tenant residential, and government buildings.
5) I need the door to stay open, not just stop. What takes the place of a Don-Jo 1471?
The Don-Jo 1471 is a stop only; it arrests the swing and the door returns freely. For an opening that has to stand open, the Ives FS40 / FS41 / FS42 / FS43 automatic floor stop and holder adds a hold-open mechanism with adjustable door-to-floor clearance, and the SOSS MDH magnetic door holder and stop, 3-5/16 inch by 1-3/4 inch, catches and holds the leaf magnetically. Both are heavy duty. The Orca 22HD Series is also catalogued as a door holder. Specify one of these where a corridor or loading door must remain open on its own.
6) What is the closest heavy-duty brass equivalent to the Don-Jo 1471 floor stop?
The Ives FS13 heavy-duty brass floor dome stop with a replaceable rubber bumper is the nearest peer to the Don-Jo 1471. Both are solid brass floor-mounted stops built for commercial traffic, and the 1471 is a cast brass unit that meets ANSI L12131. The practical difference is the bumper: the FS13 carries a replaceable rubber bumper, so the wear part can be swapped without pulling the base off the floor, while the Ives FS17 is the same heavy-duty brass dome stop with a rubber bumper. If a facility is standardizing on a single dome stop across many openings, the FS13 replaceable-bumper design is the one to specify for long-term maintenance.
7) The door swings past where a floor stop can be mounted. What should I use instead of a Don-Jo 1471?
When the door leaf travels beyond the point where a low base stop can sit, a gooseneck stop reaches up off the floor to catch the door face. The Orca Hardware 22HD Series goose neck floor stop with black tip is built for door thicknesses of 1-3/8 inch or 1-3/4 inch and functions as a door holder, and the Emtek 2253 Goose Style Door Stop and the Delaney Gooseneck Floor Door Stop are the same tall-riser form. The Don-Jo 1471 is a 3-1/8 inch high stop on a 2-1/4 inch base, which is the low-profile approach and needs the door to reach it at that height.
8) Is a floor bumper the same thing as a Don-Jo 1471 floor stop?
No. A bumper is a low cushion that keeps the door face or knob off an adjacent surface, not a riser that arrests the swing at the leaf. The Deltana UFB4505 round universal floor door bumper is 1-1/2 inch solid brass, the Deltana UFBS138 square universal floor door bumper is 1-3/8 inch solid brass, and the Emtek 2254 floor door bumper is 1-3/8 inch by 1-1/4 inch. Those sit far lower than the Don-Jo 1471, which stands 3-1/8 inch high on a 2-1/4 inch base. If the intent is to catch the door partway through its swing, the 1471 height is what does that work; a bumper is the right part only where the door already lands close to the floor plane.
9) What finishes does the Don-Jo 1471 cast brass floor stop come in?
Three: 605 polished brass, 613 oil rubbed bronze, and 626 satin chrome. All three are the same 3-1/8 inch 1471 body, so you're choosing purely on how it reads against the lever and hinges already on the opening. 626 is the usual match in commercial buildings running satin chrome hardware, 613 for dark bronze packages.
10) Is a cast brass floor stop worth it over a cheaper one for a high traffic commercial door?
The 1471 is solid cast brass rather than a stamped or plated body, which is what lets it take repeated door strikes without deforming, and brass won't rust in a wet entry or a janitor's closet. It's classified for commercial use. For an office suite, school corridor, clinic, or apartment common area, that's the reason to spend on it. On a low-use interior residential door, a lighter bumper does the job.
11) Does the Don-Jo 1471 floor stop have a handing, or does one part work on both left and right doors?
No handing. The 1471 is a floor mounted stop, so it's fixed to the floor at whatever point along the door's swing you choose, not to the door or frame. The same part serves left hand and right hand openings, in-swing or out-swing. That's one SKU per finish to stock across a whole building.
12) We're replacing a broken floor stop. Will the Don-Jo 1471 land on the existing anchor hole?
Likely, and the kit gives you the options. The 1471 uses a single center fastener, with both a 5/16-18 x 2-5/8 inch machine screw stud with lead shield for concrete and a #10 x 1 inch sheet metal screw with plastic anchor for wood. If the old stop was also a single-anchor floor stop, you can usually reuse the hole; an oversized or wallowed concrete hole is the case where you'd set the lead shield fresh a short distance away and patch the old one.
13) What should I use instead of the Don-Jo 1471 if I can't drill the floor?
A floor stop isn't the answer there. The 1471 anchors into the floor with a stud and shield or a screw and anchor, so it needs a hole. Where the slab is post-tension, heated, or a finished surface you can't penetrate, the SOSS MDH magnetic door holder and stop mounts differently and is worth looking at, or move the stop off the floor entirely to a wall or hinge mounted type.
14) What is a lower-profile alternative to the Don-Jo 1471 for a walkway where people cross the stop?
Where foot traffic crosses the mounting point, a low-rise dome reduces what sits proud of the floor. The Orca Hardware 23LP Series is a dome floor stop, low rise, with a gray tip, and it is catalogued as a door stop. The Delaney Dome Door Stop and the Emtek 2251 Half Dome Door Stop are the same dome form. The Don-Jo 1471 stands 3-1/8 inch high on a 2-1/4 inch base in cast brass, so it presents more height at the floor than a low-rise dome does, which is the trade for reaching the door leaf higher up.
15) For a detention or high-security opening, is the Don-Jo 1471 the right floor stop?
For an opening where the stop itself has to resist tampering, the Ives FS18S/FS18L security floor stop is the heavy-duty part made for that condition. The Don-Jo 1471 is a commercial cast brass floor stop meeting ANSI L12131, sized at 3-1/8 inch high on a 2-1/4 inch base, and it suits general commercial door control in offices, schools, healthcare and government buildings. Where the specification calls out a security stop by name, the FS18S/FS18L is the one to quote.
16) I am matching decorative brass hardware in a residential-style entry. What are the alternatives to a Don-Jo 1471?
The decorative solid brass floor bumpers are the ones that read as finish hardware: the Deltana UFBD3505 is a 3-1/2 inch round universal floor bumper described as decorative in solid brass, and the Deltana UFBP4505 is a 1-5/8 inch round universal floor door bumper with a pattern cap in solid brass. On the residential side, the Sure-Loc DS-FL2 is a cylindrical floor stop for residential doors and the Sure-Loc DS-FL1 is a floor stop with spring and modern door stop designs. The Don-Jo 1471 is the commercial cast brass stop in that group, offered in 605 polished brass, 613 oil rubbed bronze and 626 satin chrome, and the Emtek 2257 is a 1-1/2 inch cylindrical floor bumper if a plain cylinder suits the room better.
17) I need floor stops for a whole building. How does the Don-Jo 1471 pack?
The 1471 comes in shelf packs of 10, which is the practical unit when you're doing a corridor or a floor of units at once. All three finishes are the same 3-1/8 inch body, so standardizing a facility on the 1471 means one install method and one spare part regardless of which finish a given wing got.
