Don-Jo 1850 Flush Cup Pull for...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$41.46

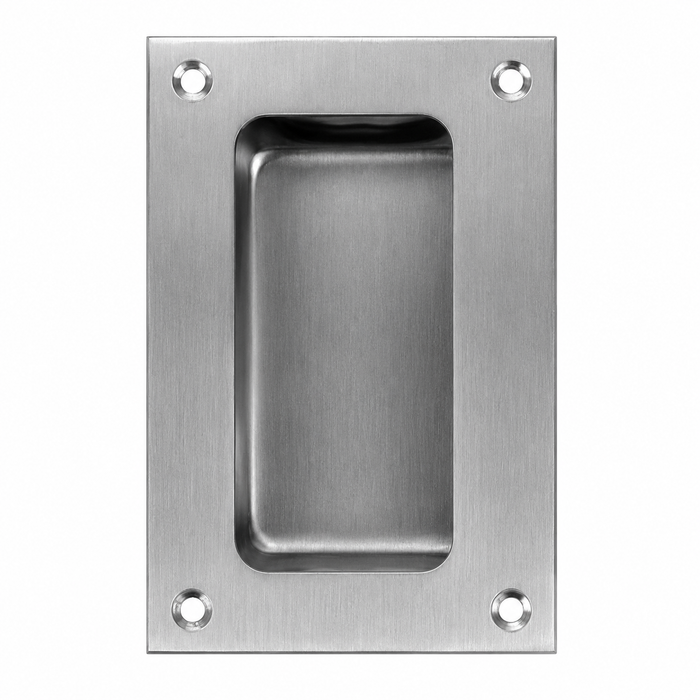

Don-Jo 1850 Flush Cup Pull for Sliding and Barn Doors — Commercial Grade

Don-Jo 1850 Flush Cup Pull for Sliding and Barn Doors — Commercial Grade

(No reviews yet) Write a Review

Model: 1850-630
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$41.46
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 1850 Flush Cup Pull for Sliding and Barn Doors — Commercial Grade

The Don-Jo 1850 Flush Cup Pull is a commercial-grade sliding door and barn door hardware solution engineered for reliable, low-profile operation in demanding environments. Offered in a 630 finish, this flush cup pull measures 4-3/4" in length and 3-1/2" in width, providing a clean, recessed grip that sits flush with the door surface for smooth, snag-free use. Conforming to ANSI J403 standards, the 1850 is part of Don-Jo's comprehensive flush cup pull family, which spans multiple sizes and configurations to suit a wide range of sliding door applications.

Key Features

  • Precise Dimensions: The 1850 model measures 4-3/4" in length and 3-1/2" in width, delivering a compact, flush-mounted profile ideal for sliding and barn door installations.
  • Flush Cup Design: Recessed cup pull sits flush with the door surface, eliminating protrusions and providing a clean, streamlined appearance while ensuring smooth door operation.
  • 630 Finish: Offered in a 630 (satin stainless) finish for a professional, corrosion-resistant appearance suited to commercial environments.
  • ANSI J403 Compliance: Meets ANSI J403 standards, ensuring consistent quality and dimensional accuracy for professional installations.
  • Commercial-Grade Construction: Designed for commercial applications including office buildings, retail spaces, healthcare facilities, and other high-traffic environments.
  • Family Model Compatibility: Part of a complete flush cup pull family including models 1846, 1848, 1850, 1858, 1860, and 1866, available in sizes ranging from 4-3/4" x 3-1/2" up to 16" x 4", allowing coordinated hardware across multiple door sizes.
  • Sold Individually: Shelf pack of 1, making it easy to order exact quantities needed for any project.

Certifications & Compliance

  • ANSI J403 Compliant
  • Commercial Grade

Technical Specifications

  • Subcategory: Pulls and Push Plates
  • Product Group: Sliding Door and Barn Door Hardware
  • Product Subgroup: Sliding Door Pulls
  • Product Type: Flush Cup Pulls
  • Commercial/Residential: Commercial
  • Product Model: 1846, 1848, 1850, 1858, 1860, 1866
  • Product Category: Sliding Door and Barn Door Hardware
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings with Sliding Interior Doors
  • Retail Establishments and Storefronts
  • Healthcare Facilities and Medical Offices
  • Educational Institutions and Campus Buildings
  • Hospitality and Hotel Properties
  • Multi-Tenant Residential and Mixed-Use Properties
  • Barn Door and Pocket Door Installations in Commercial Settings

Why Don-Jo 1850?

Don-Jo flush cup pulls are built to meet the rigorous demands of commercial door hardware applications, with ANSI J403 compliance ensuring consistent quality and dimensional accuracy across the product family. The 1850's flush-mounted, recessed cup design delivers a professional, low-profile appearance while providing reliable, snag-free operation for sliding and barn door applications. With a broad family of coordinating models spanning multiple sizes, Don-Jo makes it easy to specify the right pull for any project.

Product Specs

Subcategory:
Pulls and Push Plates
Product Group:
Sliding Door and Barn Door Hardware
Product Subgroup:
Sliding Door Pulls
Product Type:
Flush Cup Pulls
Commercial/Residential:
Commercial
Product Model:
1846, 1848, 1850, 1858, 1860, 1866
Product Category:
Sliding Door and Barn Door Hardware
Department:
Door Hardware

Don-Jo 1850-630 – Frequently Asked Questions

1) What size is the Don-Jo 1850 flush cup pull and how big a mortise does it need?
The 1850 measures 4-3/4 inches by 3-1/2 inches on the face. It is a recessed cup, so the door has to be routed out to accept the cup body and the flange sits flush with the door face. Cut the pocket to the cup, not to the 4-3/4 x 3-1/2 flange, which covers the edges of the cutout.
2) Will a flush cup pull work on a barn door that slides over the wall, or only on a pocket door?
Both. A flush pull like the Don-Jo 1850 sits recessed in the door face with nothing protruding, so it clears the wall on a surface-mounted barn door and lets the leaf pass fully into a pocket. On a pocket door it is the only practical pull on the leading face, since a projecting handle would jam against the frame.
3) Is the Don-Jo 1850 sold as a pair, or do I need two for a door?
It ships as a shelf pack of 1, one pull per order. A door that gets pulled from both faces needs two units ordered.
4) I need a flush pull with a pull-out ring for a door that closes into a jamb. Is the Don-Jo 1850 the right part?
No. The 1850 is a plain recessed cup with no moving parts, so there is nothing to grip once the door is seated tight in a pocket or jamb. For that, look at a flush cup with a spindle ring such as the Baldwin 0397 SOL Flush Cup Handle and Solid Spindle Ring Pull.
5) What is a smaller flush pull to use instead of the Don-Jo 1850 when the door stile is too narrow for a 3-1/2 inch wide cup?
The Don-Jo 1850 cup measures 4-3/4 inches long by 3-1/2 inches wide, which needs a fairly wide stile or rail to mortise into. For narrow stiles, the Emtek 2201 Rectangular brass flush pull is 1-3/4 inches by 4 inches, and the Emtek 220304 Modern Rectangular brass flush pull is the same 1-3/4 inch by 4 inch footprint in a squared-off modern profile. Both give a long, narrow cutout that fits where the 1850's wider pocket will not.
6) What finish does the Don-Jo 1850 come in, and will it match stainless lever hardware elsewhere in the building?
It is supplied in 630, satin stainless. That is the standard commercial stainless finish, so it coordinates with 630 levers, push plates and exit hardware already on the job.
7) Is the Don-Jo 1850 suitable for a high-traffic commercial building, or is it residential hardware?
It is specified as commercial, and the 1850 conforms to ANSI J403. Don-Jo lists it for office buildings, retail, healthcare, schools, hotels and multi-tenant properties. For a residential decorative look, brass and bronze flush pulls like the Emtek 2201 rectangular brass pull are the other direction.
8) How does the Don-Jo 1850 compare to the small Emtek brass flush pulls?
Different jobs. The 1850 is a 4-3/4 x 3-1/2 inch satin stainless cup built for commercial traffic. The Emtek options are smaller decorative brass and bronze rectangles: the 2201 and 220304 at 1-3/4 x 4 inches, the 220404 sandcast bronze at 2 x 4 inches, and the 2205 Brass #8 at 1-7/8 x 5 inches. Those suit finished residential and hospitality millwork; the Don-Jo suits a stainless commercial opening.
9) I need a flush pull for a sliding door in a decorative residential setting rather than a commercial office. What are the alternatives to the Don-Jo 1850?
The Don-Jo 1850 is a commercial-grade flush cup pull in a 630 satin stainless finish, built for office, retail, healthcare and similar traffic. For a decorative interior, the Emtek 220404 Rustic Modern Rectangular pull is sandcast bronze at 2 inches by 4 inches, and the Emtek 2205 Brass #8 pull is 1-7/8 inches by 5 inches in brass. The Baldwin 0397 SOL from the Estate series pairs a flush cup handle with a solid spindle ring pull, which suits pocket doors where you also need to pull the door back out of the pocket.
10) Does a flush pull like the Emtek 2201 do the same job as the Don-Jo 1850 on a pocket door that sits fully inside the pocket?
Not entirely. Both the Don-Jo 1850 and the Emtek 2201 are recessed flush pulls with no protruding hardware, so either will move a door that stops short of the jamb. If the door recedes fully into the pocket, a plain cup gives you nothing to grab; the Baldwin 0397 SOL combines a flush cup handle with a solid spindle ring pull that swings out to retrieve the door. That ring feature is the functional difference, not the size or finish.
11) What is the difference between the Emtek 2201 and 220304 flush pulls if I am cross-shopping against the Don-Jo 1850?
Both Emtek pulls are brass flush pulls measuring 1-3/4 by 4 inches; the 2201 is the Rectangular series and the 220304 is the Modern Rectangular series, so the distinction is the edge and cup styling, not the cutout. The Don-Jo 1850 is a wider 4-3/4 by 3-1/2 inch commercial cup in 630 satin stainless, so it is not a drop-in swap for either Emtek prep.
