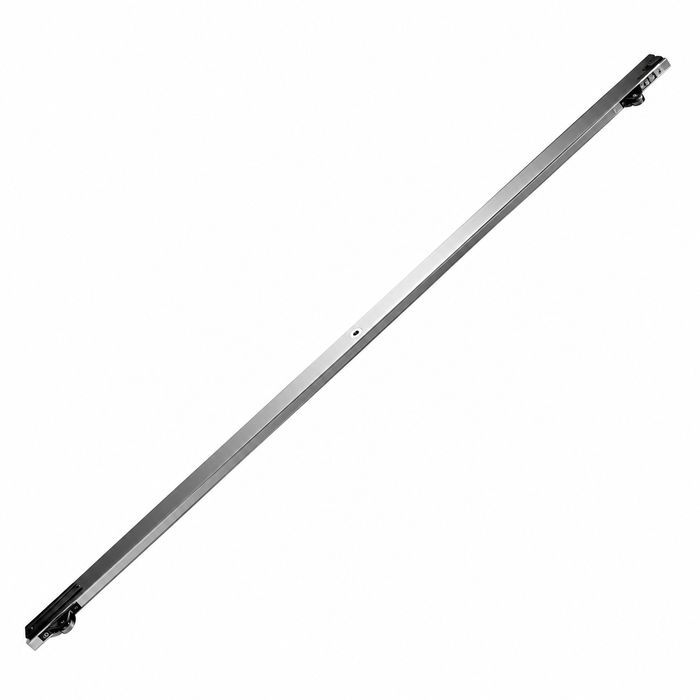

Don-Jo 2033 Door Coordinator, 96-1/16" to 104" Opening, Aluminum Finish (628)

Don-Jo 2033 Door Coordinator, 96-1/16" to 104" Opening, Aluminum Finish (628)

(No reviews yet) Write a Review

Model: 2033-628
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$219.16
$212.97
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 2033 Door Coordinator, 96-1/16" to 104" Opening, Aluminum Finish

The Don-Jo 2033 is a heavy-duty aluminum door coordinator engineered for pairs of doors where one door must close before the other, ensuring proper latching sequence and reliable operation. Designed to accommodate door frame openings from 96-1/16" to 104", this coordinator features a 1-5/8" x 60" body profile and is finished in 628 aluminum. Compliant with ANSI A156.3 Type 21, the 2033 is built for demanding commercial applications where sequenced door closing is required. A safety override feature allows the active door to close first when extreme force is applied, adding an important layer of operational safety.

Key Features

  • Wide Door Frame Compatibility: Accommodates door frame openings from 96-1/16" to 104", making it suitable for large commercial paired door openings.
  • Coordinator Size: 1-5/8" x 60" body profile provides a robust and precise fit across the full width of the opening.
  • Sequenced Door Closing: Designed for use on pairs of doors where one door must close before the other, ensuring proper latch engagement and reliable operation.
  • Safety Override: Allows the active door to close first when extreme force is applied, protecting occupants and hardware during emergency egress or high-traffic events.
  • Filler Bar Availability: A filler bar is available for installations where the coordinator does not fill the entire length of the opening, ensuring a clean and complete installation.
  • Mounting Bracket Options: Mounting brackets are available to accommodate a variety of frame and installation configurations.
  • Aluminum Construction: Fabricated from aluminum with a 628 finish, offering durability and corrosion resistance suited for commercial environments.

Certifications & Compliance

  • ANSI A156.3 Type 21 Compliant
  • Commercial Grade Application

Technical Specifications

  • Product Group: Door Controls
  • Subcategory: Door Coordinators
  • Product Subgroup: Door Coordinators
  • Product Type: Door Coordinators
  • Commercial/Residential: Commercial
  • Product Category: Door Controls
  • Product Substrate: Aluminum
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings with Double-Door Entries
  • Educational Facilities and School Corridors
  • Healthcare Institutions with Paired Fire-Rated Doors
  • Retail Establishments with Wide Storefront Openings
  • Government and Municipal Buildings
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential and Mixed-Use Properties

Why Don-Jo 2033?

Don-Jo 2033 door coordinators deliver professional-grade reliability through aluminum construction, ANSI A156.3 Type 21 compliance, and a safety override mechanism engineered for real-world commercial demands. The 2033's compatibility with frame openings from 96-1/16" to 104" and its 1-5/8" x 60" profile make it a precise, dependable solution for sequenced door closing in high-traffic paired-door applications.

Manufacturer Resources

DON-JO Door Controls

Product Specs

Product Group:
Door Controls
Subcategory:
Door Coordinators
Product Subgroup:
Door Coordinators
Product Type:
Door Coordinators
Commercial/Residential:
Commercial
Product Model:
2033
Product Size:
1-5/8" x 60"
Frame Opening Size:
96-1/16" to 104"
Product Category:
Door Controls
Product Substrate:
Aluminum
Department:
Door Hardware

Don-Jo 2033-628 – Frequently Asked Questions

1) What size double door opening does the Don-Jo 2033 coordinator fit?
The 2033 covers frame openings from 96-1/16 inches up to 104 inches, measured across the full pair opening, not a single leaf. The bar itself is 1-5/8 by 60 inches. If your opening measures under 96-1/16 inches, this is the wrong length in the family and you want a shorter bar coordinator.
2) Do I need a door coordinator on my pair of doors, or just closers?
You need a coordinator when both leaves of a pair swing into the same opening and the inactive leaf carries an astragal or a vertical rod device, so it has to shut before the active leaf. Closers alone will let the active door beat the inactive one and the pair won't latch. The Don-Jo 2033 holds the active leaf back until the inactive one is home, then releases it.
3) What is the closest equivalent to the Don-Jo 2033 bar coordinator from another manufacturer?
The Don-Jo 2033 is a full bar style coordinator with a 1-5/8" x 60" body in satin aluminum, covering frame openings from 96-1/16" to 104". The closest equivalents in the same bar format are the ABH 3700 Series full bar door coordinator, which ships with a filler bar and is UL listed for fire door use, and the Ives COR32/42/52/60/72 series aluminum bar coordinators, which are UL listed and fire rated. All three mount across the frame soffit above a pair of doors and hold the inactive leaf until the active leaf clears.
4) I need a coordinator on a fire rated pair of doors - is the Don-Jo 2033 the right choice or should I look at something else?
The Don-Jo 2033 is built to ANSI A156.3 Type 21 for commercial sequenced closing on pairs. If your submittal specifically calls for a UL listed fire door coordinator, the ABH 3700 Series full bar coordinator is described as UL listed and fire door compatible, and the Ives COR32/42/52/60/72 aluminum bar series carries a fire rating, as do the Ives COR7G and COR9G brass gravity coordinators. Match whichever one your door schedule and the door manufacturer's listing call for.
5) My frame soffit is too shallow for a full bar coordinator - what can I use instead of the Don-Jo 2033?
The Don-Jo 2033 is a bar type coordinator, with a 1-5/8" x 60" body that mounts across the head of the frame and needs soffit depth to receive it. Where that is not available, the Trimco 3092 is a retracting arm coordinator and the Trimco 3094 is a stop mounted coordinator, both UL. Arm and stop mounted styles attach differently than a full head bar and are the usual alternatives on frames that will not take the bar profile.
6) My opening is narrower than 96 inches - can I still use the Don-Jo 2033?
No. The Don-Jo 2033 is sized for frame openings from 96-1/16" to 104" and uses a 60" bar, so a narrower pair needs a shorter unit. The Ives COR bar coordinators are offered in a range of lengths across the COR32, COR42, COR52, COR60 and COR72 sizes, so a smaller opening can be covered within that series. Measure the clear frame opening, not the door widths, before selecting.
7) What happens if someone shoves the active door hard while the coordinator is holding it?
The 2033 has a safety override: under extreme force the active leaf is allowed to close first rather than binding or breaking the mechanism. That matters on egress doors and in high traffic corridors where people push through without waiting on the sequence.
8) Is the Don-Jo 2033 coordinator ANSI compliant for commercial work?
It meets ANSI A156.3 Type 21, which is the coordinator classification, and it is built as a commercial grade item rather than residential.
9) What other brands of door coordinator could I use instead of the Don-Jo 2033?
ZenSupply carries the ABH 3700 Series full bar coordinator, which also comes with a filler bar, and the Ives COR Series aluminum bar coordinators. Trimco offers two different mechanisms: the 3092 retracting arm coordinator and the 3094 stop mounted coordinator. All are the same job, sequencing a pair; the bar types mount across the head, while the Trimco 3092 uses an arm arrangement.
10) Where does a bar coordinator like the Don-Jo 2033 mount on the opening?
Bar type coordinators mount horizontally on the frame soffit at the head, spanning both leaves, which is why the 2033 is sized by frame opening (96-1/16 to 104 inches) rather than by door width. If your head condition won't take a full bar, the Trimco 3094 is a stop mounted coordinator instead.
11) Do I need to order a filler bar separately with the Don-Jo 2033?
A filler bar is available for the Don-Jo 2033 for installations where the 60" coordinator body does not span the full length of the opening, and mounting brackets are offered for varied frame configurations. If you would rather the filler bar arrive with the unit, the ABH 3700 Series full bar coordinator is supplied with a filler bar as part of the assembly.
12) What is the difference between the Don-Jo 2033 and a gravity coordinator like the Ives COR7G?
The Don-Jo 2033 is a full bar unit in aluminum with a 628 satin aluminum finish and a safety override that lets the active leaf close first under extreme force. The Ives COR7G and COR9G are brass gravity coordinators with field-adjustable operation and a fire rating. Gravity units use a pivoting trigger arm rather than a continuous bar across the opening, so the mounting prep and the adjustment procedure are not the same. They are not interchangeable in an existing 2033 prep.
13) Is a door coordinator the same thing as a door closer or an overhead stop?
No. The Don-Jo 2033 is a coordinator only - it controls the sequence in which a pair of doors closes so the inactive leaf with the astragal lands before the active leaf, allowing both to latch. It does not close the doors and it does not limit their swing; closers on each leaf are still required. Among coordinator styles, the Trimco 3094 is a stop mounted coordinator, meaning it mounts to the frame stop, which is still a coordinator and not a door stop.
14) What finish does the Don-Jo 2033 come in?
One finish only: 628 satin aluminum, on an aluminum body. On a head-mounted coordinator that usually sits against an aluminum or painted frame, so it blends on most storefront and hollow metal openings without special ordering.
