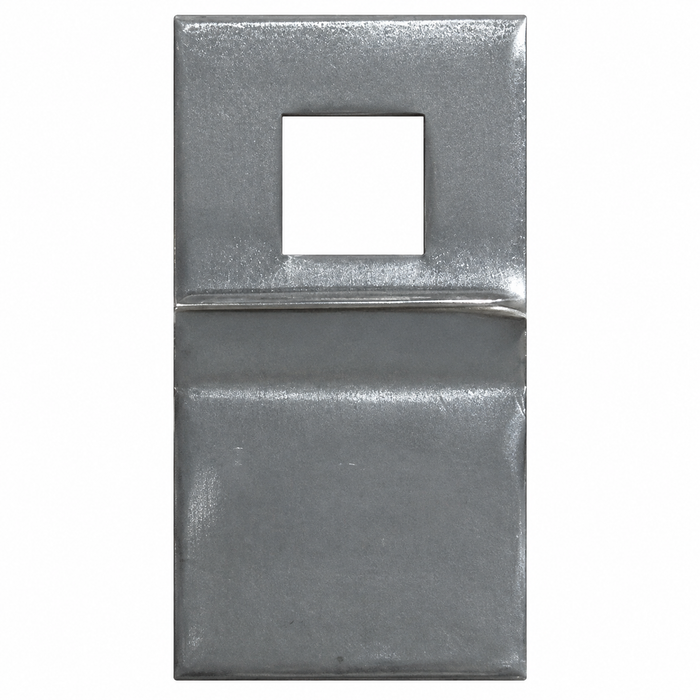

Don-Jo FBG-1-SQ Flush Bolt Guide 3-1/4" x 1-3/4" in 13 Gauge Steel

Don-Jo FBG-1-SQ Flush Bolt Guide 3-1/4" x 1-3/4" in 13 Gauge Steel

(No reviews yet) Write a Review

Model: FBG-1-SQ

In Stock (leaves warehouse same day if ordered before 3pm ET)

$11.23
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo FBG-1-SQ Flush Bolt Guide 3-1/4" x 1-3/4" in 13 Gauge Steel

The Don-Jo FBG-1-SQ is a commercial-grade Flush Bolt Guide engineered for reliable door hardware applications. Constructed from heavy-duty 13 gauge steel (.095), this guide measures 3-1/4" in length and 1-3/4" in width with a 5/16" offset, providing precise alignment and secure support for flush bolt assemblies. Designed for commercial use, it delivers the dimensional accuracy and material strength required for demanding door trim and accessory installations.

Key Features

  • Precise Dimensions: Measures 3-1/4" in length and 1-3/4" in width, ensuring accurate fitment for compatible flush bolt assemblies in commercial door applications.
  • Engineered Offset: Features a 5/16" offset designed to properly position and guide the flush bolt for smooth, reliable operation.
  • Heavy-Duty Steel Construction: Fabricated from 13 gauge (.095) steel for exceptional strength and long-term durability in high-traffic commercial environments.
  • Commercial-Grade Quality: Rated for commercial applications, making it suitable for demanding door hardware installations in a wide range of facilities.
  • Convenient Shelf Pack: Available in a shelf pack of 50 units, ideal for contractors, distributors, and facility maintenance teams managing multiple installations.
  • Door Trim Compatibility: Classified within the Door Trim and Accessories product group, ensuring compatibility with standard flush bolt configurations and related hardware components.

Technical Specifications

  • Subcategory: Flush Bolts
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo FBG-1-SQ?

Don-Jo Flush Bolt Guide products deliver professional-grade reliability through heavy-duty 13 gauge (.095) steel construction, providing the dimensional precision and structural integrity required for commercial door hardware installations. The FBG-1-SQ is engineered to exact specifications — 3-1/4" x 1-3/4" with a 5/16" offset — ensuring consistent performance across a wide range of commercial applications where dependable door hardware support is essential.

Product Specs

Subcategory:
Flush Bolts
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Flush Bolt Guide
Commercial/Residential:
Commercial
Product Model:
FBG 1 SQ
Product Category:
Door Trim and Accessories
Product Substrate:
Steel
Department:
Door Hardware

Don-Jo FBG-1-SQ – Frequently Asked Questions

1) What does a flush bolt guide like the Don-Jo FBG-1-SQ actually do on a pair of doors?
On a pair of doors, the inactive leaf is held by a flush bolt that throws a rod into the head frame or into the floor. The FBG-1-SQ is the guide plate that mounts on the door edge to keep that bolt rod aligned and moving straight as it throws and retracts. It is a support and alignment part, not the bolt itself, so it is ordered alongside or to repair an existing flush bolt assembly.
2) What size is the Don-Jo FBG-1-SQ flush bolt guide and how much does it offset?
The FBG-1-SQ measures 3-1/4 inches by 1-3/4 inches with a 5/16 inch offset. That offset is what sets the rod away from the door edge, so check it against the flush bolt rod you already have before ordering: a guide with a different offset will bind or let the rod wander.
3) Does the FBG-1-SQ come with the flush bolt, or do I need to order that separately?
The FBG-1-SQ is the guide only. The flush bolt assembly and its rod are separate items, so if you are building up an inactive leaf from scratch you need the bolt as well as the guide. If you are only replacing a bent or worn guide on a working bolt, the guide alone is the part.
4) Is the International Door Closers FG-1200 an equivalent to the Don-Jo FBG-1-SQ flush bolt guide?
Both are flush bolt guides, so they serve the same purpose: guiding and supporting the rod of a flush bolt at the door edge. The Don-Jo FBG-1-SQ is a square-corner guide measuring 3-1/4 inches long by 1-3/4 inches wide with a 5/16 inch offset, formed from 13 gauge (.095) steel. The International Door Closers FG-1200 is a standard flush bolt guide belonging to the FB-1200 series, so it is sized and shaped around that manufacturer's own flush bolt line. Before swapping one for the other, measure the existing cutout and the rod offset in the door edge, since guide plate length, width and offset have to match the prep you already have.
5) Is the Don-Jo FBG-1-SQ heavy enough for a high traffic commercial opening?
It is made from 13 gauge steel (.095), which is a heavy plate for a guide of this size, and Don-Jo classes the part as commercial rather than residential. That is the gauge you want on school, hospital and office corridor pairs where the inactive leaf gets worked constantly.
6) Is the FBG-1-SQ sold individually or in a box?
Don-Jo packs the FBG-1-SQ in a shelf pack of 50. That suits a maintenance shop or a contractor standardizing guides across a building full of door pairs rather than someone chasing a single repair.
7) My flush bolts are from the FB-1200 family. Should I use a Don-Jo guide or stay with the matching one?
If the flush bolts already in the doors are FB-1200 series, the International Door Closers FG-1200 guide is the one built to that series and is the safer match for rod alignment. The Don-Jo FBG-1-SQ is a general-purpose square guide in 13 gauge (.095) steel at 3-1/4 inches by 1-3/4 inches with a 5/16 inch offset, so it fits where that footprint and offset match the existing mortise. On a fleet of doors, pull one leaf, measure the guide pocket and the offset from the door face to the rod, and standardize on whichever plate matches that dimension across the building.
8) Is the FBG-1-SQ square cornered or radius cornered?
The SQ in FBG-1-SQ denotes the square corner version. If the mortise cut in your door edge was made with a radius router, a square corner plate will need the corners of the cutout squared off with a chisel to sit flat.
