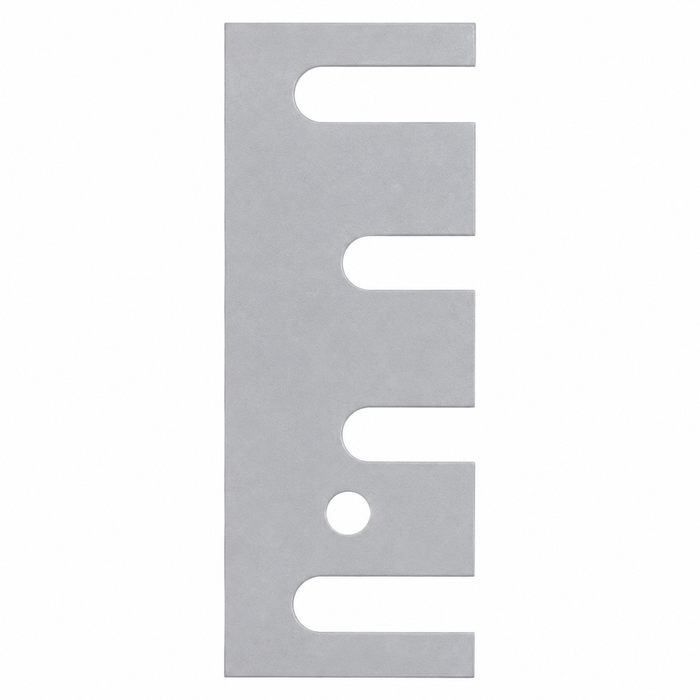

Don-Jo HS-5060 Hinge Shim 5" x 1-5/8" 16 Gauge Steel Filler Plate

Don-Jo HS-5060 Hinge Shim 5" x 1-5/8" 16 Gauge Steel Filler Plate

(No reviews yet) Write a Review

Model: HS-5060

In Stock (leaves warehouse same day if ordered before 3pm ET)

$15.98
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo HS-5060 Hinge Shim 5" x 1-5/8" 16 Gauge Steel Filler Plate

The Don-Jo HS-5060 is a commercial-grade steel hinge shim measuring 5" in length and 1-5/8" in width, manufactured from 16-gauge (.060) steel for reliable performance in door hinge applications. Designed as a filler plate accessory within the door hinges and pivots category, this shim provides precise gap correction and alignment support for commercial door installations. Its robust steel construction ensures dimensional stability and long-term durability in demanding commercial environments.

Key Features

  • Precise Dimensions: Measures 5" in length and 1-5/8" in width, providing accurate fitment for standard commercial door hinge mortises and filler plate applications.
  • Heavy-Gauge Steel Construction: Fabricated from 16-gauge (.060) steel for exceptional rigidity, dimensional stability, and resistance to deformation under load.
  • Commercial-Grade Quality: Engineered specifically for commercial door hardware applications, ensuring consistent performance in high-use environments.
  • Filler Plate Functionality: Serves as a hinge shim and filler plate to correct gaps, misalignments, or mortise irregularities in door and frame assemblies.
  • Door Hinges and Pivots Compatibility: Classified within the Door Hinges and Pivots product group as a parts and accessories component, making it a reliable replacement or supplemental part for hinge installations.
  • Versatile Hardware Accessory: Suitable for use across a wide range of commercial door hardware configurations where precise hinge shimming or gap filling is required.

Technical Specifications

  • Subcategory: Filler Plates
  • Product Group: Door Hinges and Pivots
  • Product Subgroup: Parts and Accessories
  • Commercial/Residential: Commercial
  • Product Category: Door Hinges and Pivots
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo HS-5060?

Don-Jo hinge shim products deliver professional-grade reliability through heavy-gauge steel construction — the HS-5060 is built to 16-gauge (.060) specification, ensuring consistent thickness and structural integrity across every installation. Engineered for demanding commercial door hardware applications, this filler plate provides the precision and durability that professional installers and facility managers depend on for long-lasting, properly aligned door assemblies.

Manufacturer Resources

DON-JO Hinges

Product Specs

Subcategory:
Filler Plates
Product Group:
Door Hinges and Pivots
Product Subgroup:
Parts and Accessories
Product Type:
Hinge Shim
Commercial/Residential:
Commercial
Product Model:
HS 5060
Product Category:
Door Hinges and Pivots
Product Substrate:
Steel
Department:
Door Hardware

Don-Jo HS-5060 – Frequently Asked Questions

1) What is a Don-Jo HS-5060 hinge shim actually used for?
The HS-5060 is a flat steel plate that goes behind a hinge leaf in the mortise to take up space. When a door sags, binds on the strike side, or the hinge mortise was routed too deep, shimming the hinge out corrects the gap and brings the door back into alignment instead of re-routing the frame or replacing the hinge. It also works as a filler plate over a mortise that no longer matches the hinge on it.
2) Will a Don-Jo HS-5060 shim fit a standard 4-1/2 inch commercial hinge?
Size is the thing to check first. The HS-5060 measures 5 inches in length and 1-5/8 inches in width, so it sits behind a leaf up to 5 inches tall and 1-5/8 inches wide. A 4-1/2 x 4-1/2 inch full mortise hinge has a leaf 4-1/2 inches tall and 2-1/4 inches wide per leaf, so the shim covers the height but is narrower than the full leaf. It shims the screw line and the mortise depth, which is what corrects the gap, but it does not fill the mortise edge to edge.
3) How thick is a 16 gauge steel hinge shim, and how much does it move the door?
16 gauge works out to .060 inch, so one HS-5060 moves the hinge leaf out about a sixteenth of an inch. That is usually enough to close a hinge-side gap or stop a door catching on the latch side. Stack two if you need an eighth, but past that you are usually looking at a frame or hinge problem rather than a shim problem.
4) Is the Don-Jo HS-5060 hinge shim rated for commercial doors or just residential?
Commercial. It is a 16-gauge (.060) steel plate, not a plastic or cardboard shim, so it holds its thickness under the load of a solid core or hollow metal door and will not compress over time. It is used in offices, schools, healthcare, retail, warehouses, and multi-tenant residential.
5) Can I use a steel hinge shim to fix a door that drags on the floor or binds at the latch?
Shimming works for latch-side binding and for a door that has shifted from a hinge mortise cut too deep. Adding an HS-5060 behind the top hinge swings the top of the door back toward the hinge jamb; behind the bottom hinge it does the opposite. A door dragging on the floor is a different fault, usually worn or loose hinges, and packing the mortise out will not lift it. Fix the hinge first, then shim for the remaining gap.
6) Does the Don-Jo HS-5060 hinge shim come with screws?
No fasteners come with the HS-5060. The shim is drilled to sit under the hinge leaf and is held by the existing hinge screws, so you reuse the screws that are already in the frame or door. If you are stacking shims, plan on longer screws, since the extra .060 inch per plate eats into the thread engagement in the jamb.
7) Do I need to specify a finish or handing when ordering the Don-Jo HS-5060?
Neither. The HS-5060 ships one way, as model HS-5060 in steel, with no handing and no finish choice to make. It installs behind the hinge leaf where it is not visible once the door is hung, so the finish on your hinges does not need to be matched.
