Don-Jo PLP-111 Pin Latch Protector for Outswing Doors, 3" x 11" Stainless Steel

Don-Jo PLP-111 Pin Latch Protector for Outswing Doors, 3" x 11" Stainless Steel

(No reviews yet) Write a Review

Model: PLP-111-630
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$33.40
$23.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo PLP-111 Pin Latch Protector for Outswing Doors, 3" x 11" Stainless Steel

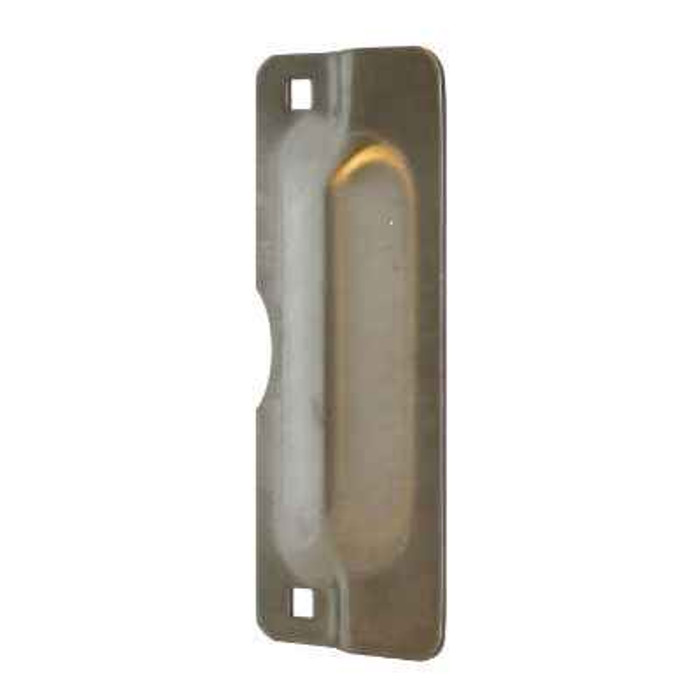

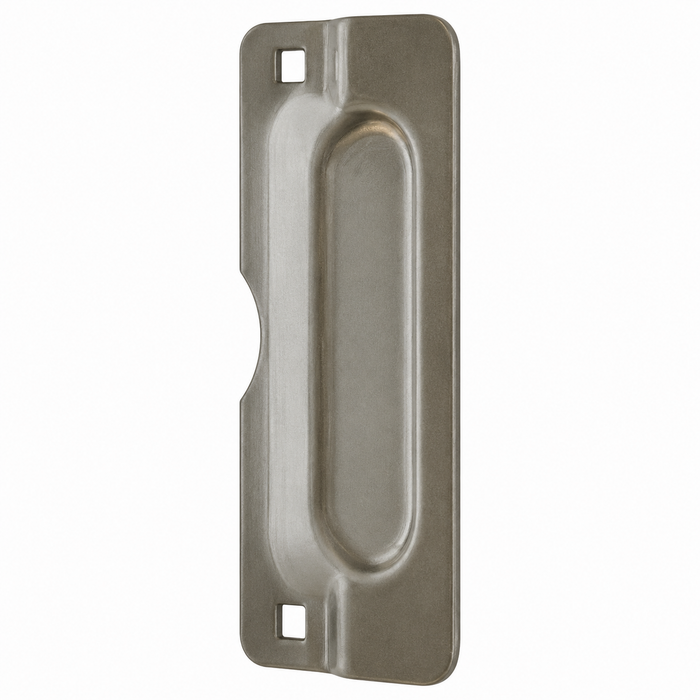

The Don-Jo PLP-111 is a heavy-duty pin latch protector engineered specifically for outswing doors, providing reliable protection against forced entry and latch manipulation. Constructed from 12-gauge stainless steel (.104 thickness) and measuring 3" x 11", this latch guard is designed to work with key-in-knob locks, levers, and most types of locks featuring an anti-spread pin. Finished in 630 satin stainless steel, the PLP-111 delivers both durability and a professional appearance suited for demanding commercial environments.

Key Features

  • Precise Dimensions: Measures 3" wide x 11" long, providing broad coverage of the latch area on outswing doors for maximum protection.
  • Heavy-Gauge Construction: Fabricated from 12-gauge stainless steel at .104 thickness, ensuring exceptional rigidity and resistance to forced-entry attempts.
  • Stainless Steel Material: Corrosion-resistant stainless steel construction delivers long-lasting performance in high-traffic and demanding commercial applications.
  • Outswing Door Compatibility: Specifically designed for outswing door configurations, providing a secure fit and reliable latch protection where it is needed most.
  • Broad Lock Compatibility: Works with key-in-knob locks, lever locks, and most types of locks equipped with an anti-spread pin for versatile installation options.
  • 630 Satin Stainless Finish: The 630 finish provides a clean, professional aesthetic that complements a wide range of commercial door hardware.
  • Convenient Shelf Pack: Available in a shelf pack of 10, making it easy to stock and deploy across multiple doors in commercial projects.

Technical Specifications

  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Trim and Latch Protection
  • Subcategory: Latches & Catches
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo PLP-111?

Don-Jo latch protection products are built to professional-grade standards, with the PLP-111 featuring 12-gauge stainless steel construction at .104 thickness for superior strength and long-term durability. Engineered for outswing door applications and compatible with key-in-knob locks, lever locks, and anti-spread pin configurations, this latch protector is a dependable solution for commercial door security where reliable performance is essential.

Manufacturer Resources

DON-JO Latch Protectors

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Door Trim and Latch Protection
Product Type:
Latch Protectors
Subcategory:
Latches & Catches
Commercial/Residential:
Commercial
Door Swing:
Out Swing
Product Model:
PLP 111
Product Category:
Door Trim and Accessories
Product Substrate:
Stainless Steel
Department:
Door Hardware

Don-Jo PLP-111-630 – Frequently Asked Questions

1) Will the Don-Jo PLP-111 latch protector work on an inswing door?
No. The PLP-111 is an outswing latch guard, meaning it mounts on the exterior face of a door that swings away from you and covers the exposed latch and gap. On an inswing door the latch is not accessible from outside, so a guard of this type has nothing to protect and will not mount correctly. For an inswing opening you want an interior-style latch guard instead.
2) What locks does the Don-Jo PLP-111 latch guard fit?
The PLP-111 works with key-in-knob locks, lever locks, and most locks that have an anti-spread pin. The pin feature is the point of this model: it engages the frame side to resist the door being pried and spread away from the jamb, which is the common attack on an outswing opening. If your door has a mortise or deadbolt setup with no anti-spread pin provision, this is not the guard for it.
3) How big is the Don-Jo PLP-111 and will it cover my latch area?
The plate measures 3 x 11 inches, which gives you coverage above and below the latch on a standard commercial door. Before ordering, check that you have 11 inches of clear face on the lock stile with no closer arm, vision light frame, or exit device trim in the way, and that the 3 inch width does not run past the edge of the stile.
4) What else besides the Don-Jo PLP-111 covers a latch on an outswing commercial door?
The Trimco PG8000 Series is the other latch guard family to look at for the same job. The Don-Jo PLP-111 is a single fixed part - a 3 inch by 11 inch pin latch protector in 12-gauge stainless steel, .104 thickness, 630 satin stainless, made for out swing openings and for key-in-knob locks, levers, and locks with an anti-spread pin. The Trimco PG8000 is a series covering panic and latch guards, so it is specified by selecting within the series rather than by ordering one fixed plate. If the opening takes a knob or lever latch and the anti-spread pin, the PLP-111 answers it as a stock size.
5) Is a 12-gauge stainless latch guard strong enough for a high-abuse commercial door?
12-gauge stainless at .104 thickness is the heavy end of latch guard material, and it is what the PLP-111 uses. That gauge resists bending under a pry bar rather than folding, which is the failure mode of thin guards. The stainless substrate also holds up outdoors and in wash-down or coastal conditions where a plated steel guard would rust at the fastener holes.
6) What is the difference between a latch guard and a panic guard, and which do I need?
A latch guard like the PLP-111 covers the latch area of a knob or lever lock on an outswing door. If your door has an exit device instead, you want a guard sized for that hardware, such as the Trimco PG8000 Series panic and latch guards. Match the guard to what is actually on the door: a knob or lever opening takes the latch guard, a rim exit device opening usually takes a panic guard.
7) Is a panic guard the same thing as the Don-Jo PLP-111?
No. The Trimco PG8000 Series is a panic and latch guard line, meaning it spans guards for exit device openings as well as latch openings. The Don-Jo PLP-111 is strictly a pin latch protector for out swing doors, sized 3 inches by 11 inches, and it is compatible with key-in-knob locks, levers, and most locks with an anti-spread pin. A door with a rim panic device is a different guard selection than a door with a knob or lever latch, so match the guard to the lock on the door rather than assuming one crosses to the other.
8) Which latch guard standardizes better across a building of outswing doors?
The Don-Jo PLP-111 is one fixed configuration - 3 inch by 11 inch, 12-gauge stainless steel at .104 thickness, 630 satin stainless finish - and it is sold in a shelf pack of 10, so every door in the fleet gets an identical plate and identical spare. The Trimco PG8000 Series is a series of panic and latch guards, which means each opening is specified within the series. For a property manager or MRO buyer who wants one part number on the shelf for a run of out swing commercial doors, the single-configuration PLP-111 is the simpler stocking decision.
9) What finish is the Don-Jo PLP-111 and will it match my other door hardware?
It comes in 630, satin stainless steel, and that is the only finish offered. 630 is the standard commercial finish on lever trim, push plates, and exit devices, so it lines up with most existing hardware on an institutional or office opening without a special order.
10) I need latch guards for a whole building. Does the PLP-111 come in bulk?
Don-Jo packs the PLP-111 in a shelf pack of 10, which suits a property manager or facilities crew standardizing exterior latch protection across a run of outswing doors. Since only one finish and one size exist, every door in the fleet gets an identical plate.
