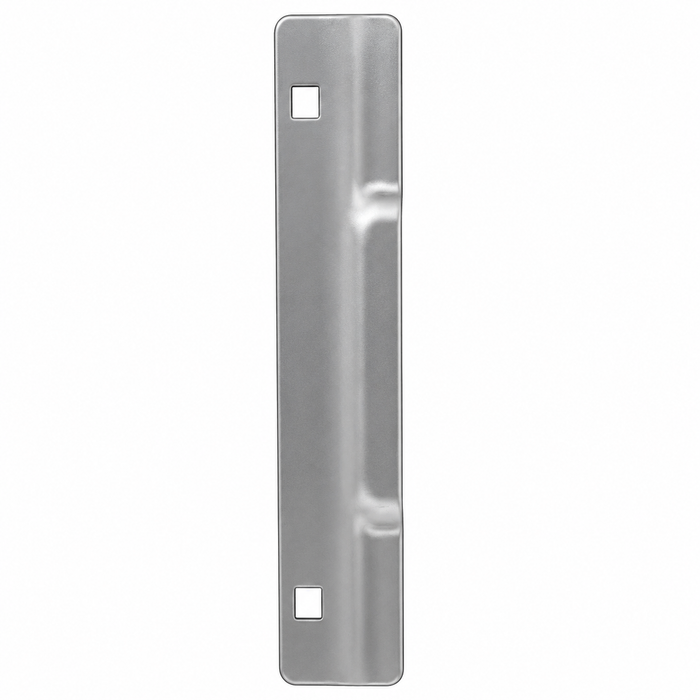

Don-Jo TLP-110 Narrow Commercial Latch Protector 1-1/2" x 10" Stainless Steel for Levers and Exit Devices

Don-Jo TLP-110 Narrow Commercial Latch Protector 1-1/2" x 10" Stainless Steel for Levers and Exit Devices

(No reviews yet) Write a Review

Model: TLP-110-630
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$34.80
$30.57
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo TLP-110 Narrow Commercial Latch Protector — 1-1/2" x 10" Stainless Steel for Levers and Exit Devices

The Don-Jo TLP-110 is a narrow commercial-type latch protector engineered for out-swing doors requiring reliable latch security and protection. Measuring 1-1/2" wide by 10" long and constructed from heavy-duty 12-gauge (0.104") stainless steel, this latch protector is compatible with both levers and exit devices, making it a versatile solution for a wide range of commercial door applications. Available in 630 and DU finishes, it ships furnished with EBF fasteners for straightforward installation.

Key Features

  • Precise Dimensions: 1-1/2" width by 10" length provides targeted coverage for narrow commercial door stiles on out-swing applications.
  • Heavy-Duty Gauge Construction: Manufactured from 12-gauge (0.104") stainless steel for exceptional strength, rigidity, and long-term durability in high-traffic commercial environments.
  • Stainless Steel Material: Corrosion-resistant stainless steel construction ensures lasting performance and a professional appearance in demanding conditions.
  • Lever and Exit Device Compatibility: Specifically designed to work with levers and exit devices, offering broad compatibility across common commercial door hardware configurations.
  • Out-Swing Door Design: Engineered for out-swing door applications, providing proper latch protection where it is most needed.
  • Furnished with EBF Fasteners: Includes EBF fasteners in the package for a complete, ready-to-install solution without the need for additional hardware sourcing.
  • Available Finishes: Offered in 630 (satin stainless steel) and DU finishes to complement existing door hardware aesthetics.
  • Convenient Shelf Pack: Packaged in shelf packs of 10, ideal for contractors, distributors, and facilities managers stocking multiple units.

Certifications & Compliance

  • Commercial-Grade Construction — 12 Gauge (0.104") Stainless Steel
  • Compatible with Levers and Exit Devices per product specifications

Technical Specifications

  • Subcategory: Latches & Catches
  • Product Group: Parts and Accessories
  • Product Subgroup: Parts and Accessories
  • Product Type: Latch Protectors
  • Product Category: Parts and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings with Out-Swing Entry Doors
  • Educational Facilities Requiring Latch Security on Corridor Doors
  • Healthcare Institutions with High-Traffic Door Openings
  • Retail Establishments Protecting Storefront Latch Bolts
  • Industrial and Warehouse Facilities with Exit Device-Equipped Doors
  • Multi-Tenant Residential Properties with Commercial-Grade Door Hardware
  • Government and Municipal Buildings Requiring Durable Latch Protection

Why Don-Jo TLP-110?

Don-Jo latch protectors are built to commercial standards, with the TLP-110 featuring 12-gauge (0.104") stainless steel construction that delivers the rigidity and corrosion resistance required for demanding door hardware applications. Designed specifically for out-swing doors and compatible with both levers and exit devices, the TLP-110 provides a reliable, professional-grade solution for protecting latch bolts across a wide variety of commercial openings.

Manufacturer Resources

DON-JO Latch Protectors

Product Specs

Subcategory:
Latches & Catches
Product Group:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Latch Protectors
Commercial/Residential:
Commercial
Door Swing:
Out Swing
Product Model:
TLP 110
Product Category:
Door Trim and Accessories
Product Substrate:
Stainless Steel
Department:
Door Hardware

Don-Jo TLP-110-630 – Frequently Asked Questions

1) Will a 1-1/2 inch wide latch guard fit a narrow stile aluminum storefront door?
The TLP-110 is 1-1/2 inches wide by 10 inches long, which is the narrow profile made for tight stiles where a standard 3-inch wide guard would run past the stile edge or foul the glass stop. Measure the flat face of your stile from the door edge inward: you need 1-1/2 inches of clear flat surface plus room for the fasteners. If you have that, it lands.
2) Can I use the Don-Jo TLP-110 on a door with an exit device, or is it only for lever locks?
Both. The TLP-110 is built to work with levers and with exit devices, so it covers the rim latch on a panic-equipped out-swing door as well as a cylindrical or mortise lever opening. The 10-inch length gives coverage above and below the latch line, and the 1-1/2 inch width keeps it clear of an exit device chassis on a narrow stile.
3) What is a latch protector actually for, and do I need one on my out-swing door?
A latch guard is a steel plate that covers the gap between an out-swing door and its frame so nobody can slip a shim, pry bar, or credit card at the latch bolt. On an out-swing opening that gap sits on the exposed exterior side, which is why those doors get attacked this way and in-swing doors generally do not. If you have an exterior out-swing door on a lever lock or exit device, particularly a back service door or a storefront, the TLP-110 is the part that closes that gap.
4) How thick is the steel on the Don-Jo TLP-110 latch guard?
12 gauge, 0.104 inches, in stainless steel. That thickness is what keeps the plate from being peeled or bent back with a pry bar, which is the whole point of a latch guard. Stainless also holds up on exterior openings where a plated steel plate would rust at the fastener holes.
5) Do I need to buy screws separately for the Don-Jo TLP-110?
No, it ships with EBF fasteners in the pack. Those are the one-way, tamper-resistant screws you want on the outside face of an exterior door, since a standard Phillips head just invites someone to back the guard off. Nothing else to source to hang it.
6) Should I use the narrow 1-1/2 inch TLP-110 or a wider latch guard?
Width is decided by your stile, not by how much protection you want. The TLP-110's 1-1/2 inch face is for narrow stile doors, typically aluminum storefront, where there is not enough flat metal for a wider plate to sit without hitting the glass stop or hanging over the door edge. On a wide stile hollow metal or wood door you have room for a wider guard and it gives more coverage across the frame gap. Measure the stile first, then pick the width.
7) What finishes does the Don-Jo TLP-110 come in?
Three: 630 satin stainless steel, DU duronodic brown coated, and SL silver coated. Match to the rest of the opening, 630 against satin stainless levers and exit devices, DU on dark bronze storefront, SL where you want a painted silver that blends with clear anodized aluminum rather than a bright stainless face.
8) I need to protect latches on a lot of doors in one building. Is the TLP-110 sold in bulk?
It comes in shelf packs of 10, which suits a property manager or facility standardizing latch protection across a run of out-swing corridor or exterior doors. Ordering one finish across the fleet, 630 for instance, keeps the openings looking consistent and means the same replacement part fits everywhere later.
